DTC P2127, P2128: App Sensor: Wiring Diagram

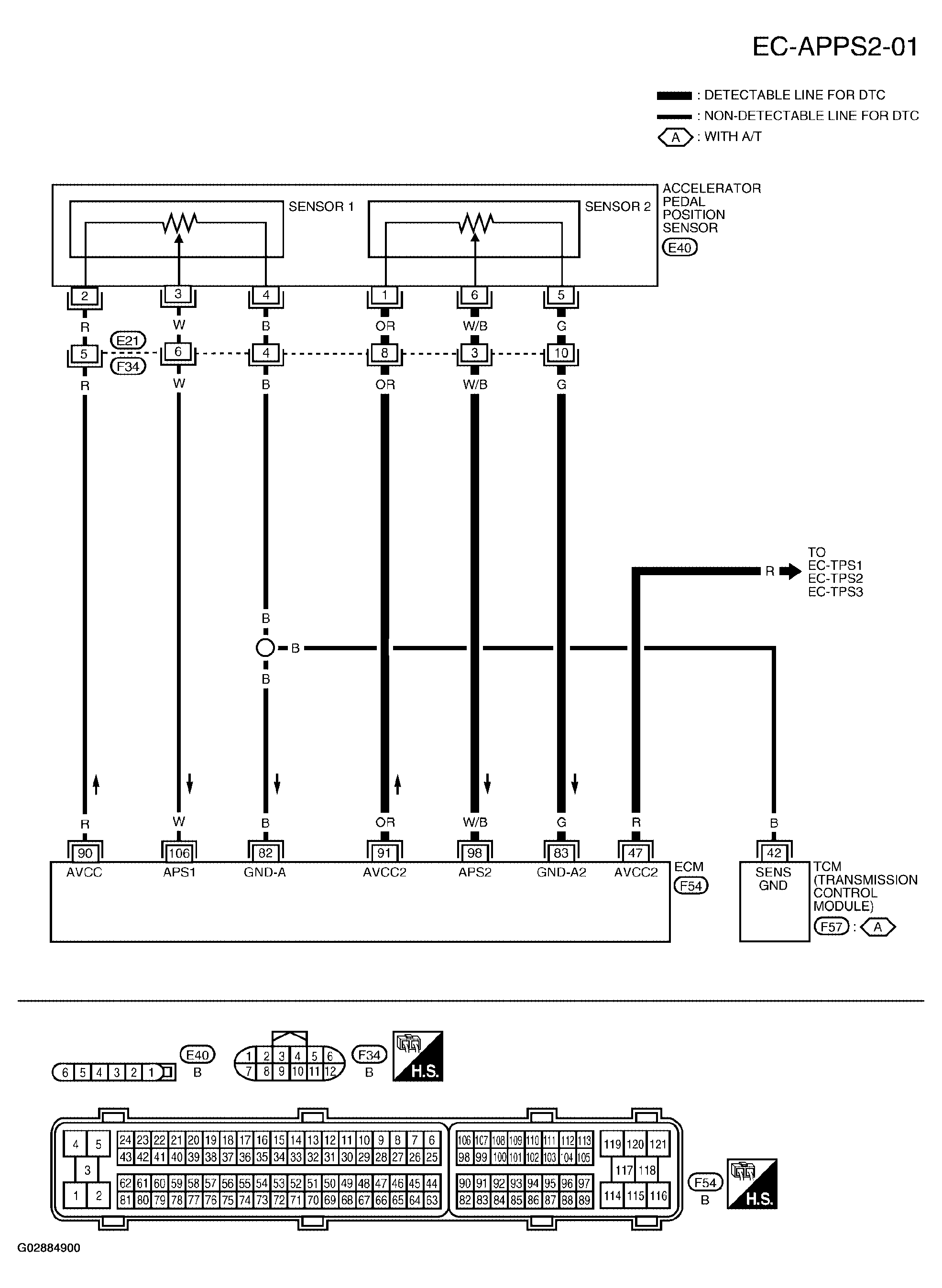

Fig 1: Wiring Diagram - EC-APPS2-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

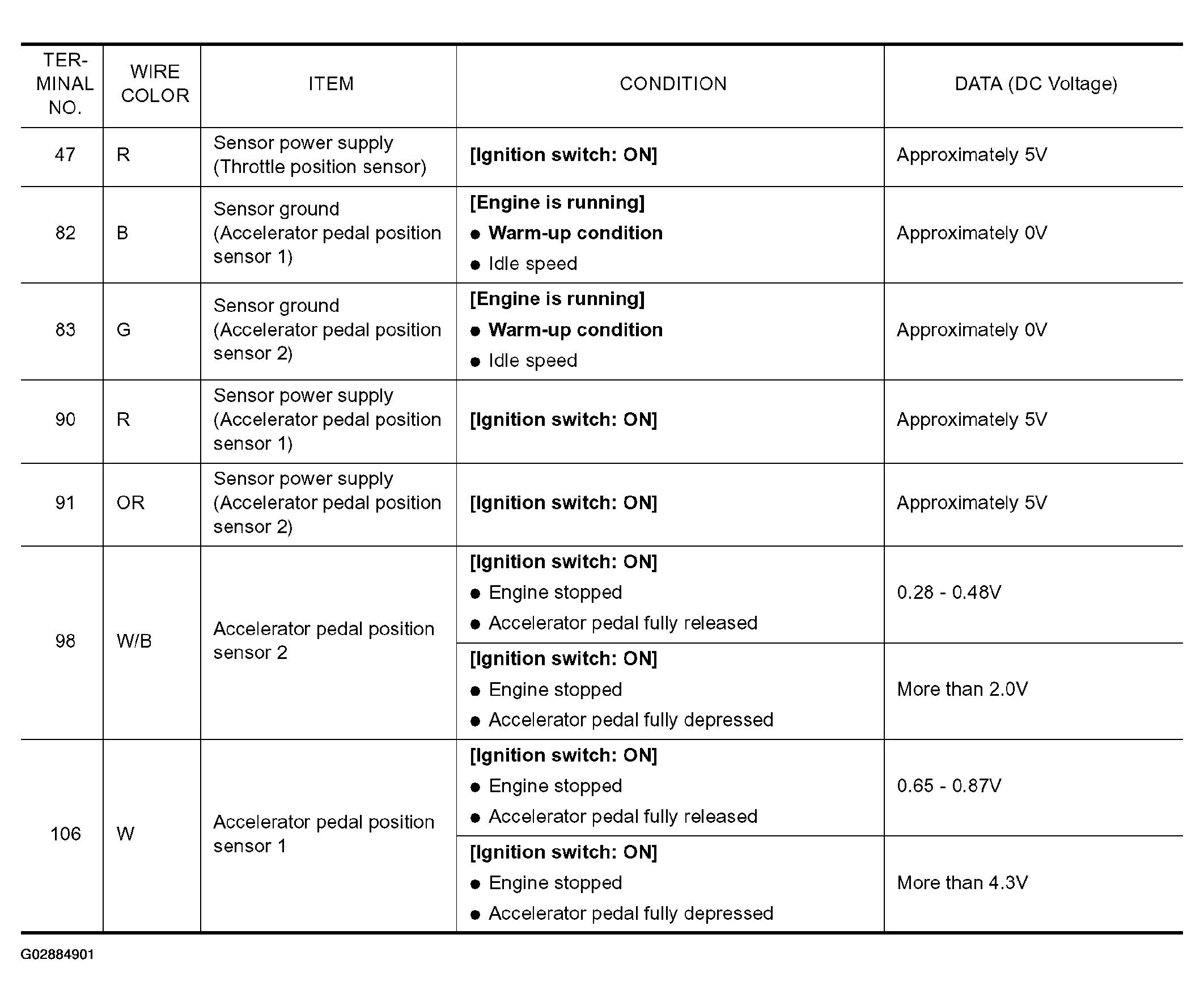

Fig 2: APP Sensor Terminal Voltage Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.
