With Consult-II

  1. Turn ignition switch ON.
  2. Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. Then check the "P/N POSI SW" signal under the following conditions.
    P/N POSI SW SIGNAL CHECKING CONDITIONS

    Position (Selector lever) Known-good signal
    N or P position ON
    Except the above position OFF
    Fig 1: Displaying DATA MONITOR Mode
    G02884857Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, go to "DIAGNOSTIC PROCEDURE ".

    If OK, go to following step.

  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Start engine and warm it up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.
    ENGINE TESTING CONDITIONS

    ENG SPEED More than 1, 500 RPM
    COOLAN TEMP/S More than 70°C (158°F)
    B/FUEL SCHDL 3.0 - 31.8 msec
    VHCL SPEED SE More than 64 km/h (40 MPH)
    Selector lever Suitable position
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

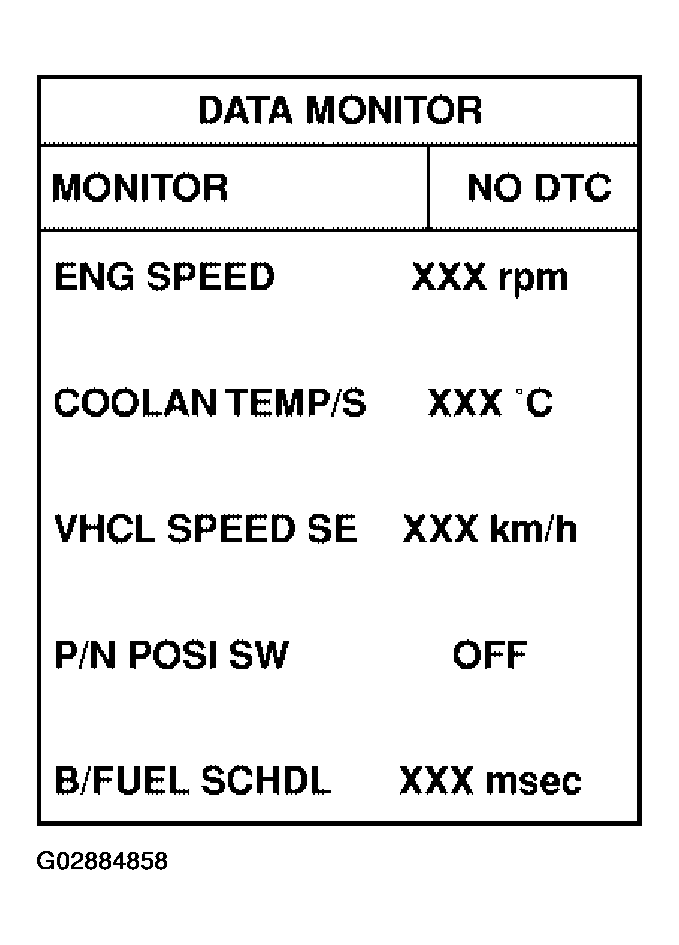

    Fig 2: Displaying DATA MONITOR Mode
    G02884858Courtesy of NISSAN MOTOR CO., U.S.A.
