Diagnostic Procedure

  1. CHECK ASCD STEERING SWITCH CIRCUIT

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "MAIN SW", "RESUME/ACC SW", "SET SW and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
    3. Check each item indication under the following conditions.

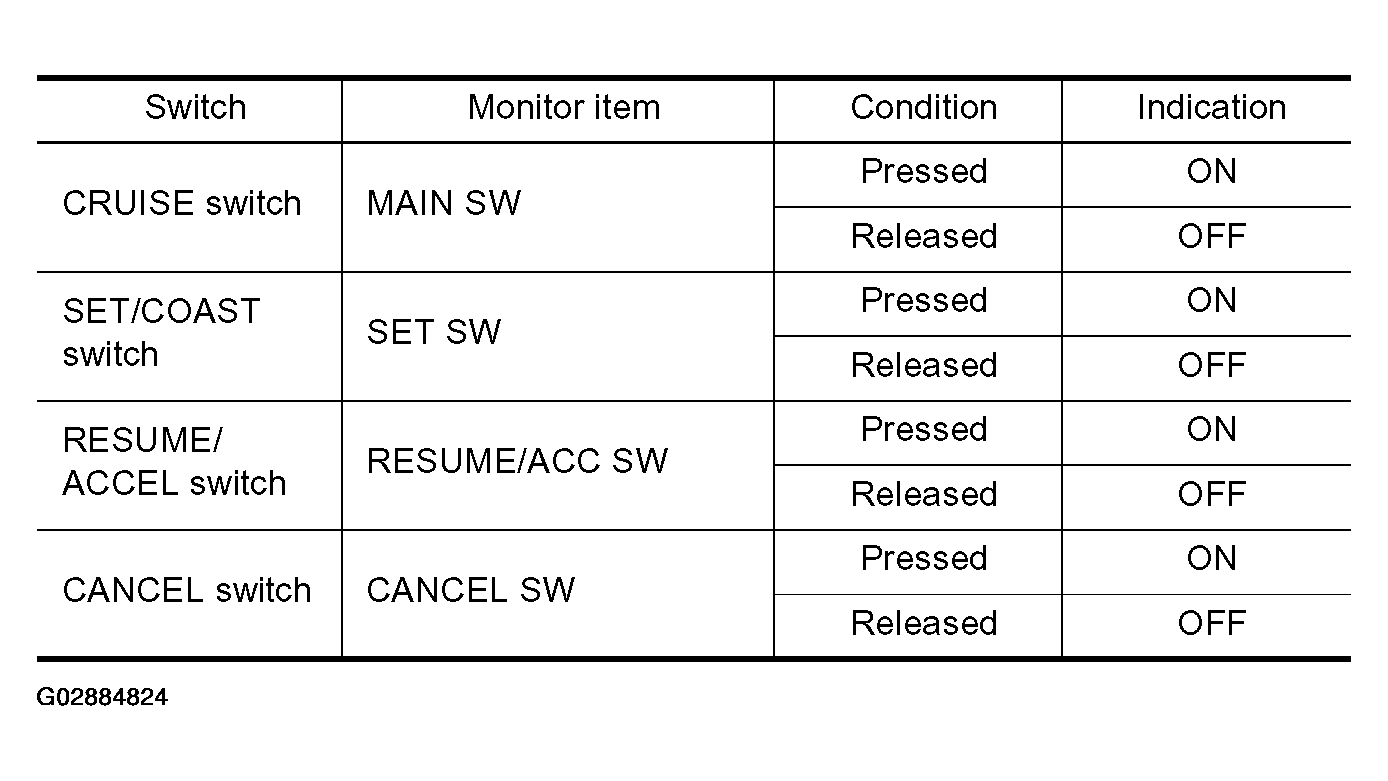

      Fig 1: Switch Indication Conditions Chart
      G02884824Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 2: Displaying DATA MONITOR Mode
      G02884825Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 99 and ground with pressing each button.

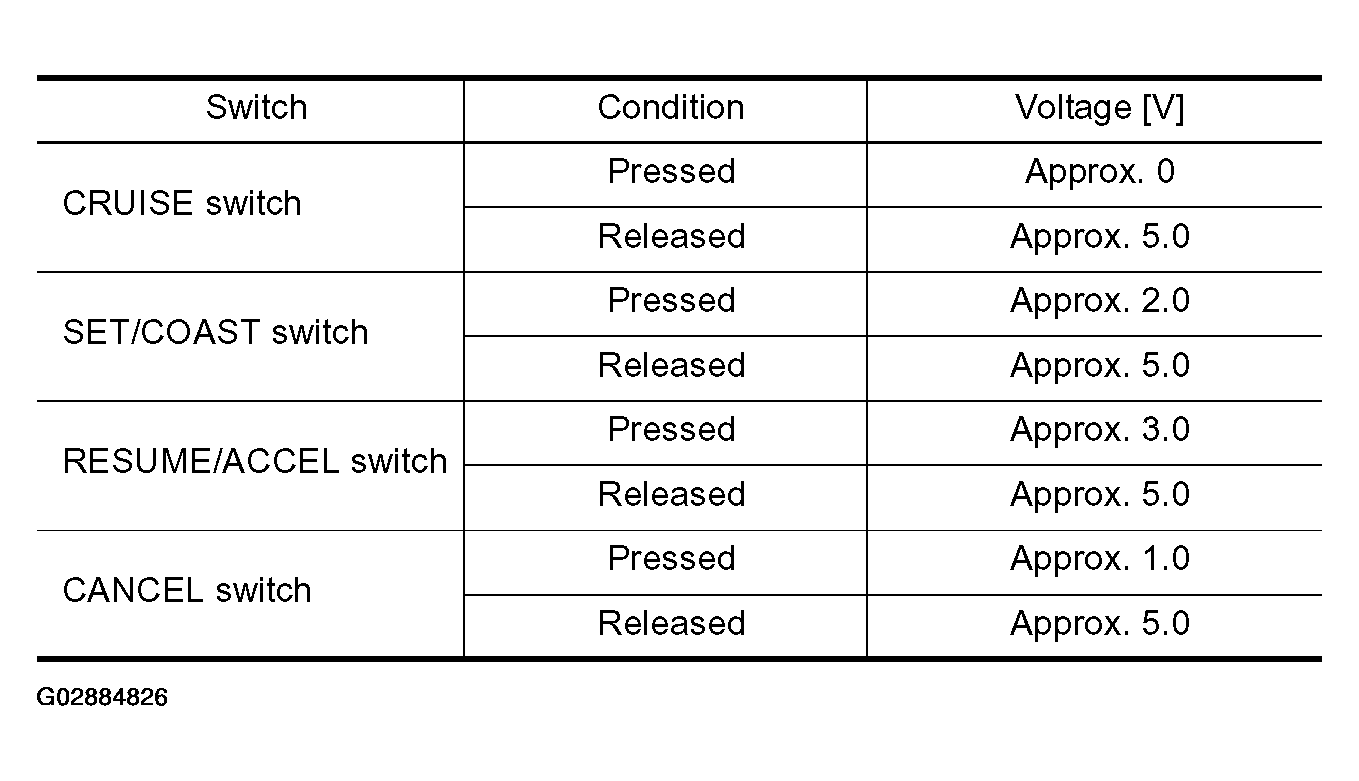

      Fig 3: Switch Voltage Conditions
      G02884826Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 4: Checking Voltage Between ECM Terminal 99 & Ground
      G02884827Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO  7.
    2. NG : GO TO 2.
  2. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD steering switch harness connector and ECM harness connector.
    3. Check harness continuity between ASCD steering switch terminal 2 and ECM terminal 67. Refer to Wiring Diagram .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  4.
    2. NG : GO TO 3.
      Fig 5: Identifying ASCD Steering Switch
      G02884828Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M71, F59
    • Combination switch (spiral cable)
    • Harness for open and short between ECM and ASCD steering switch
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 99 and ASCD steering switch terminal 1. Refer to Wiring Diagram .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  6.
    2. NG : GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M71, F59
    • Combination switch (spiral cable)
    • Harness for open and short between ECM and ASCD steering switch
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK ASCD STEERING SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK : GO TO 7.
    2. NG : Replace ASCD steering switch.
  7. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. >> INSPECTION END
