Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

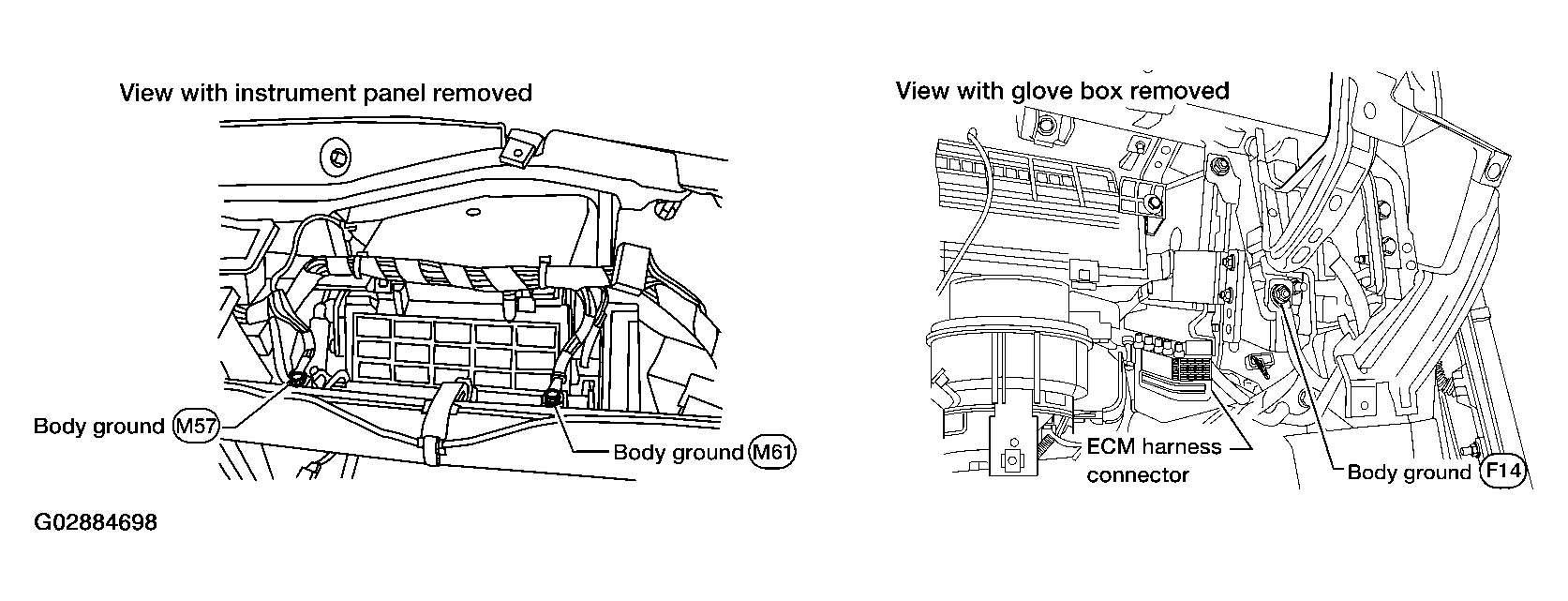

   Fig 1: Checking Ground Connections

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : GO TO 2.
2. NG : Repair or replace ground connections.

1. Disconnect accelerator pedal position (APR) sensor harness connector.
2. Turn ignition switch ON.

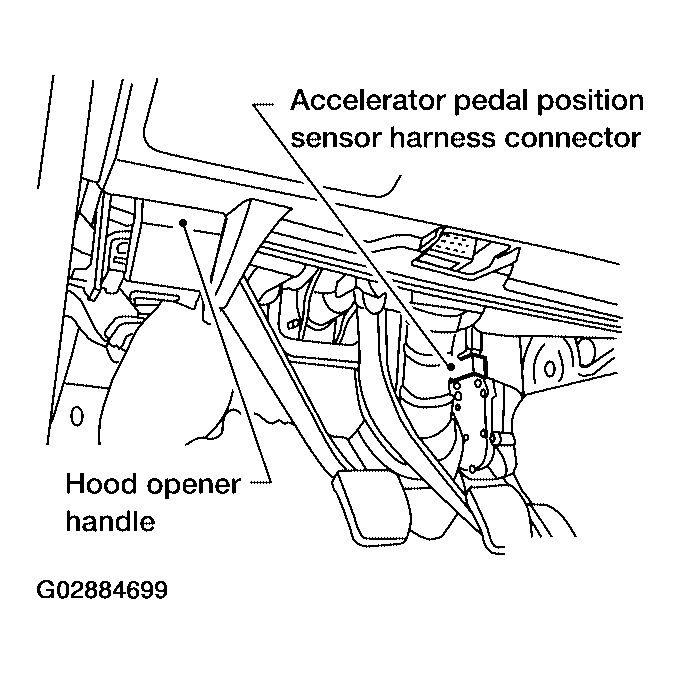

   Fig 2: Disconnecting Accelerator Pedal Position (APR) Sensor Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between APR sensor terminal 2 and ground with CONSULT-II or tester.

   Voltage: Approximately 5V

OK or NG

1. OK : GO TO  5.
2. NG : GO TO 3.
   Fig 3: Checking Voltage Between APR Sensor Terminal 2 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

Check the following.

• Harness for short to power and short to ground, between the following terminals.
  ECM TERMINALS AND SENSOR TERMINALS FOR CHECKING



  ECM terminal	Sensor terminal	Reference Wiring Diagram
  90	APR sensor terminal 2	WIRING DIAGRAM
  48	EVAP control system pressure sensor terminal 3	WIRING DIAGRAM
  49	Refrigerant pressure sensor terminal 1	WIRING DIAGRAM
  68	PSP sensor terminal 1	WIRING DIAGRAM

OK or NG

1. OK : GO TO 4.
2. NG : Repair short to ground or short to power in harness or connectors.

Check the following.

• Refrigerant pressure sensor (Refer to REFRIGERANT PRESSURE SENSOR .)
• Power steering pressure sensor (Refer to POWER STEERING PRESSURE SENSOR .)
• EVAP control system pressure sensor (Refer to EVAP CONTROL PRESSURE SENSOR .)

OK or NG

1. OK : GO TO  7.
2. NG : Replace malfunctioning component.

Refer to "COMPONENT INSPECTION ".

OK or NG

1. OK : GO TO  7.
2. NG : GO TO 6.

1. Replace accelerator pedal assembly.
2. Preform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
3. Preform "THROTTLE VALVE CLOSED POSITION LEARNING ".
4. Preform "IDLE AIR VOLUME LEARNING ".

1. >> INSPECTION END

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

1. >> INSPECTION END
