Main 12 Causes of Overheating

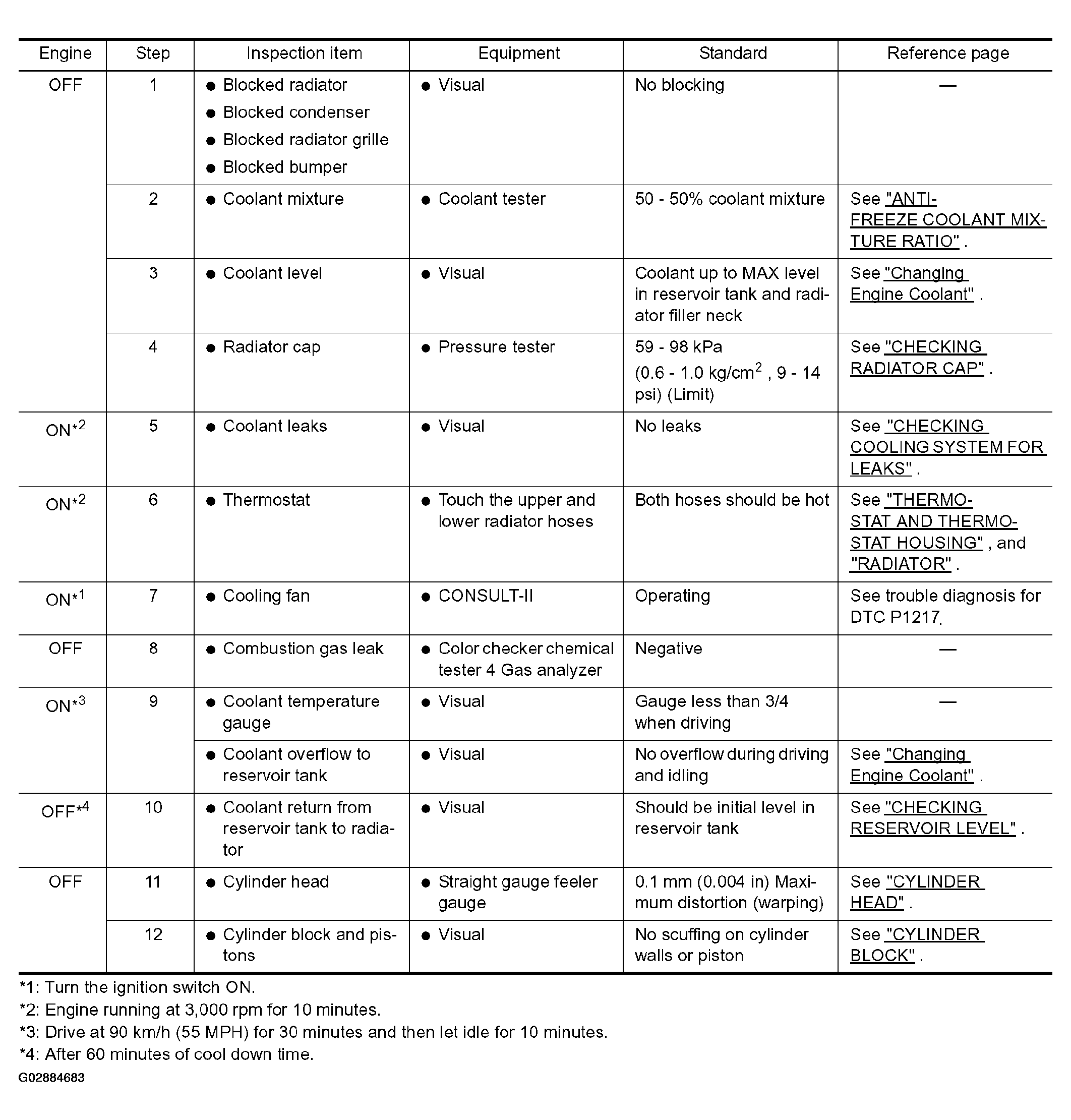

Fig 1: Overheating Causes Chart
G02884683Courtesy of NISSAN MOTOR CO., U.S.A.

For more information on Overheating Causes, refer to "OVERHEATING CAUSE ANALYSIS ".
