DTC P0181: Fit Sensor: Wiring Diagram

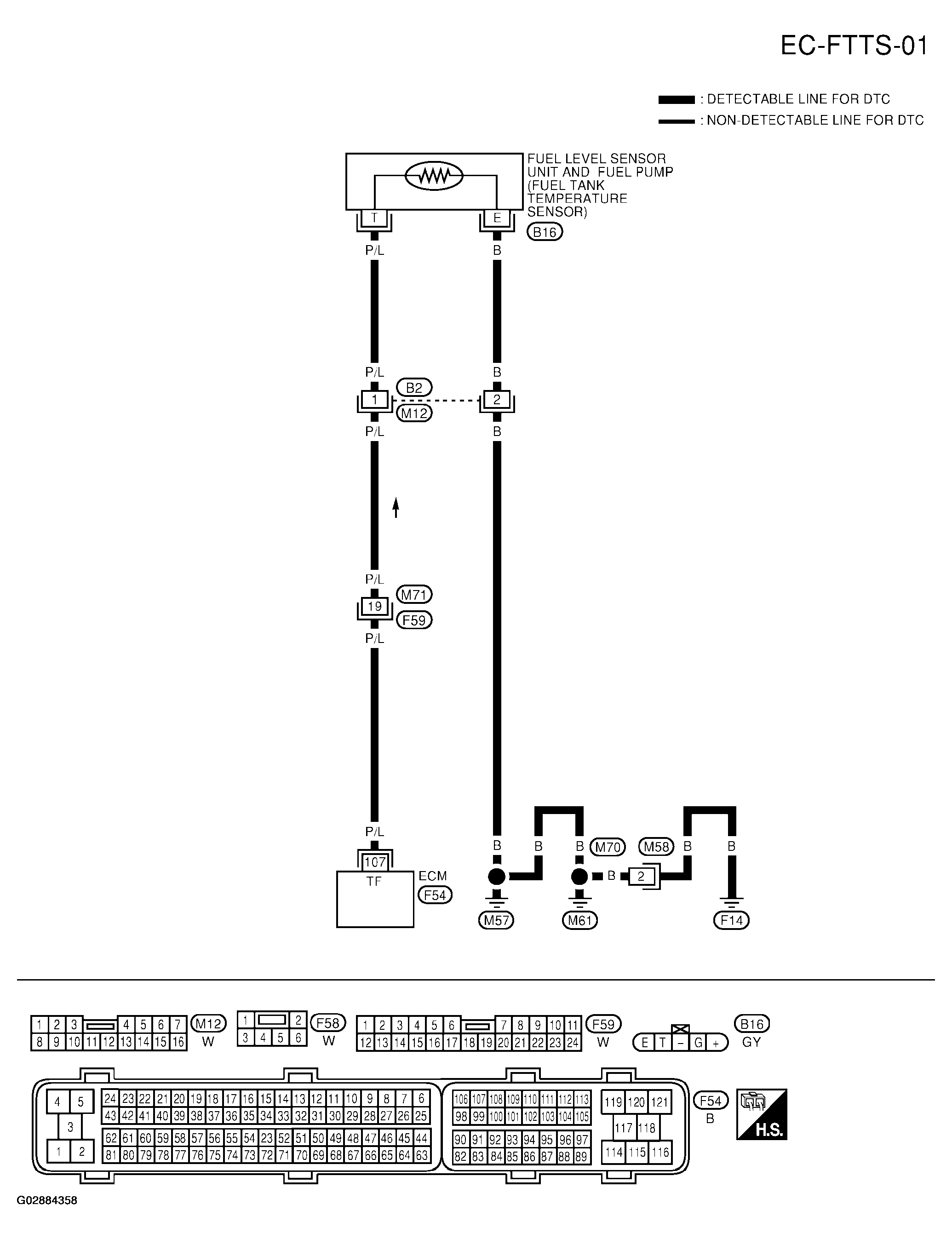

Fig 1: Wiring Diagram - EC-FTTS-01

G02884358

Courtesy of NISSAN MOTOR CO., U.S.A.
