DTC P0172: Fuel Injection System Function: Wiring Diagram

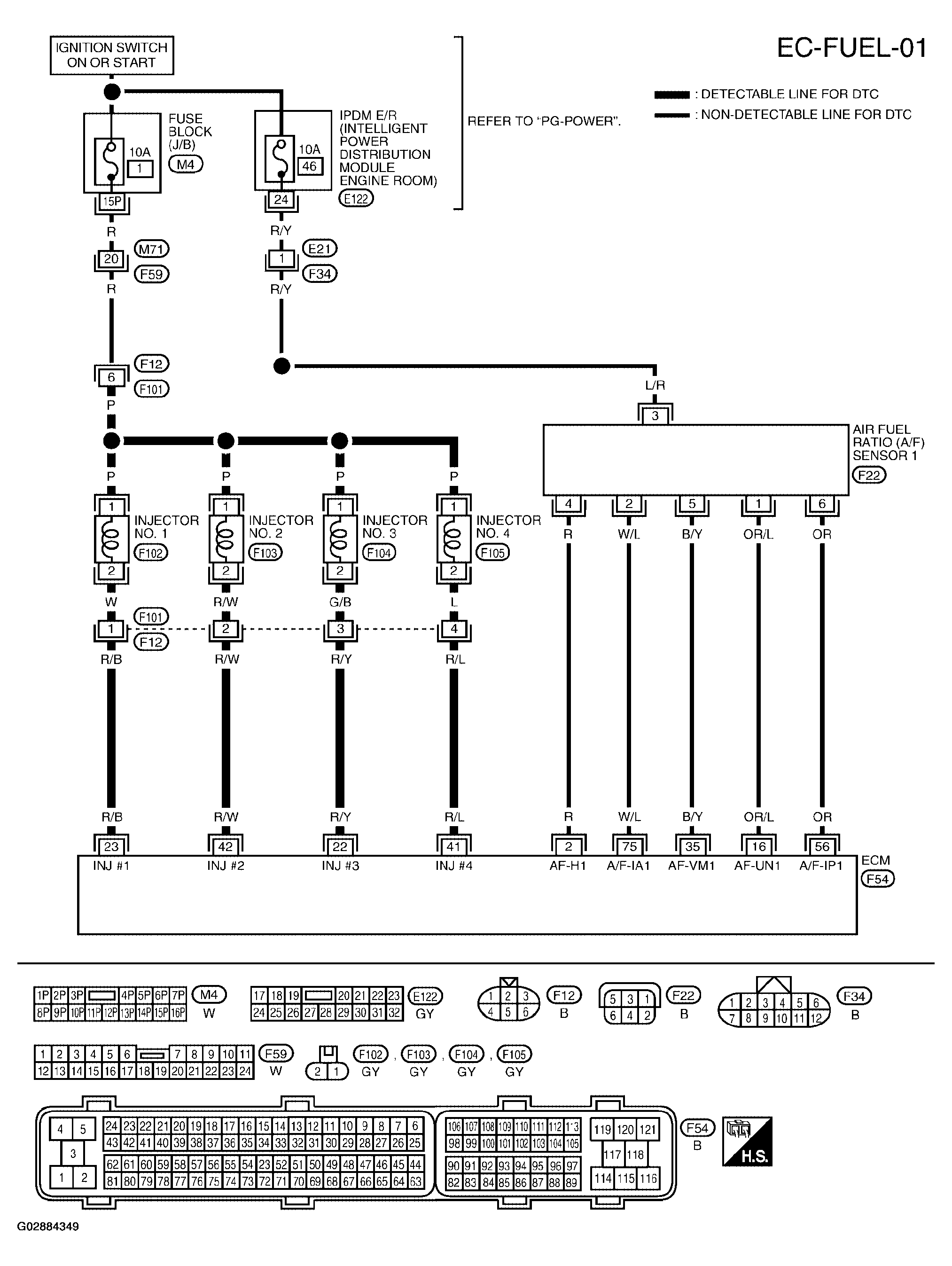

Fig 1: Wiring Diagram - EC-FUEL-01

G02884349

Courtesy of NISSAN MOTOR CO., U.S.A.
