Remote Keyless Entry System: Schematic

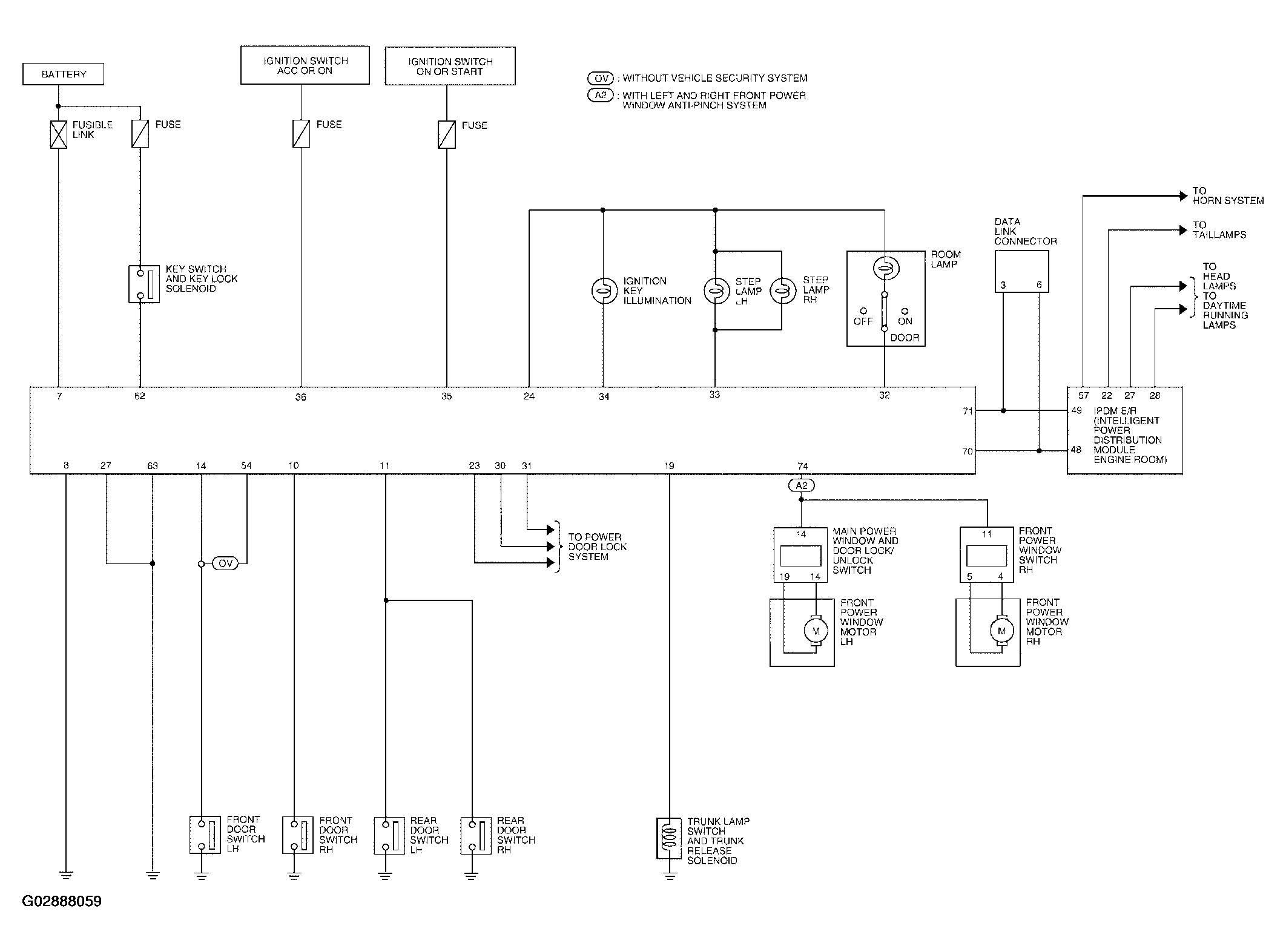

Fig 1: Schematic Wiring Diagram

G02888059

Courtesy of NISSAN MOTOR CO., U.S.A.
