Automatic Transaxle (Re4F03B): Overhaul: Components

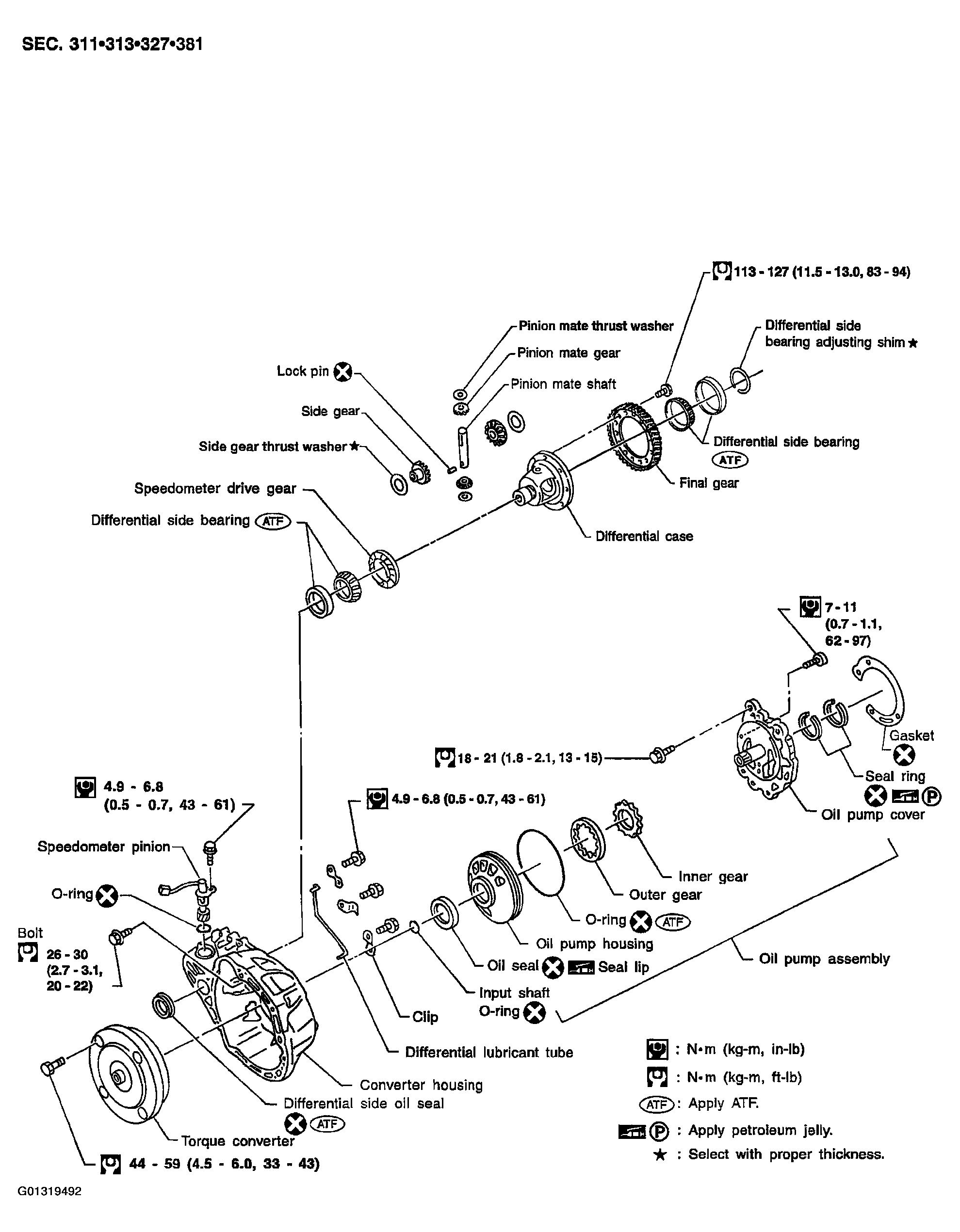

Fig 1: Exploded View Of Automatic Transaxle (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

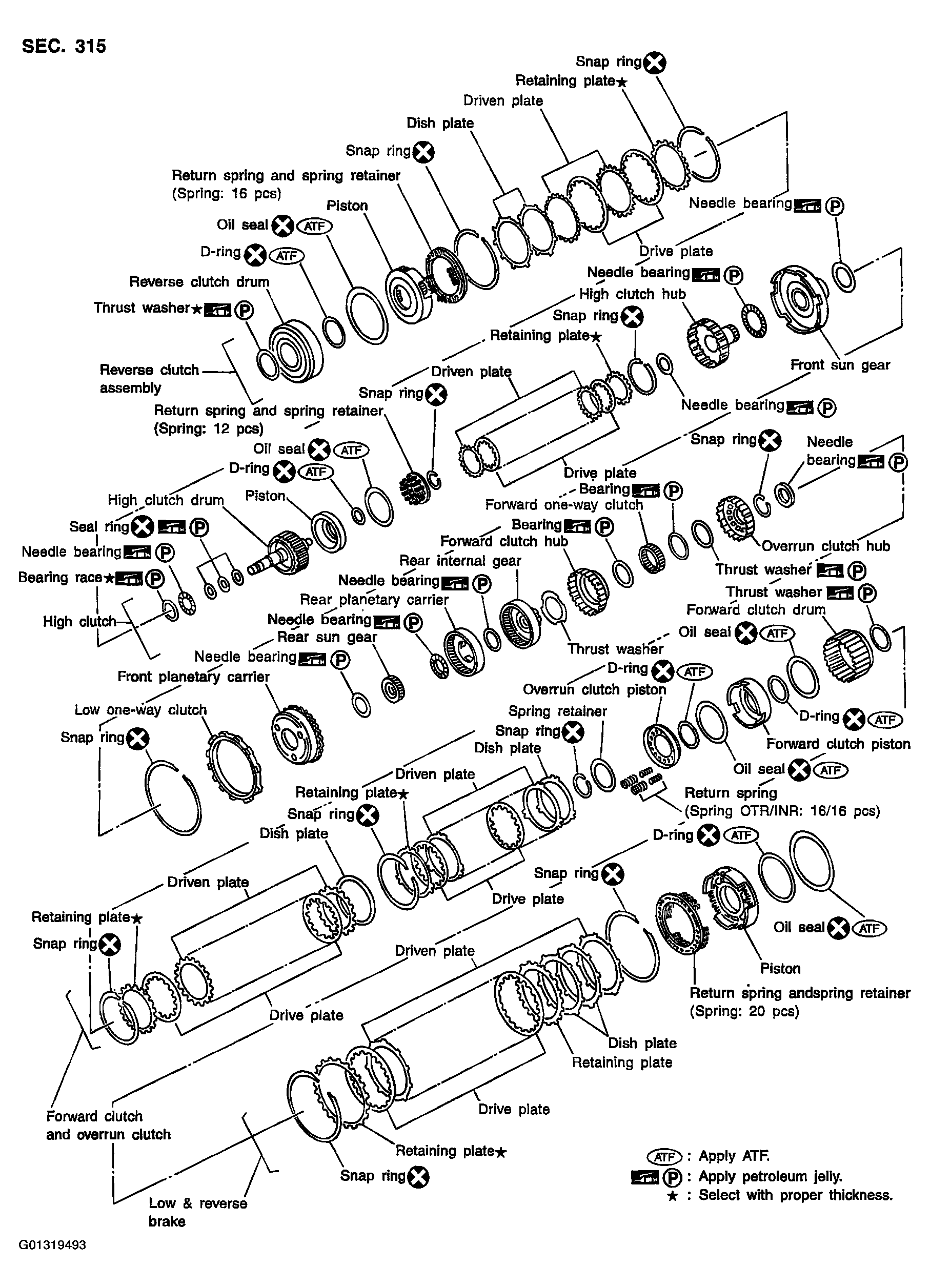

Fig 2: Exploded View Of Automatic Transaxle (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

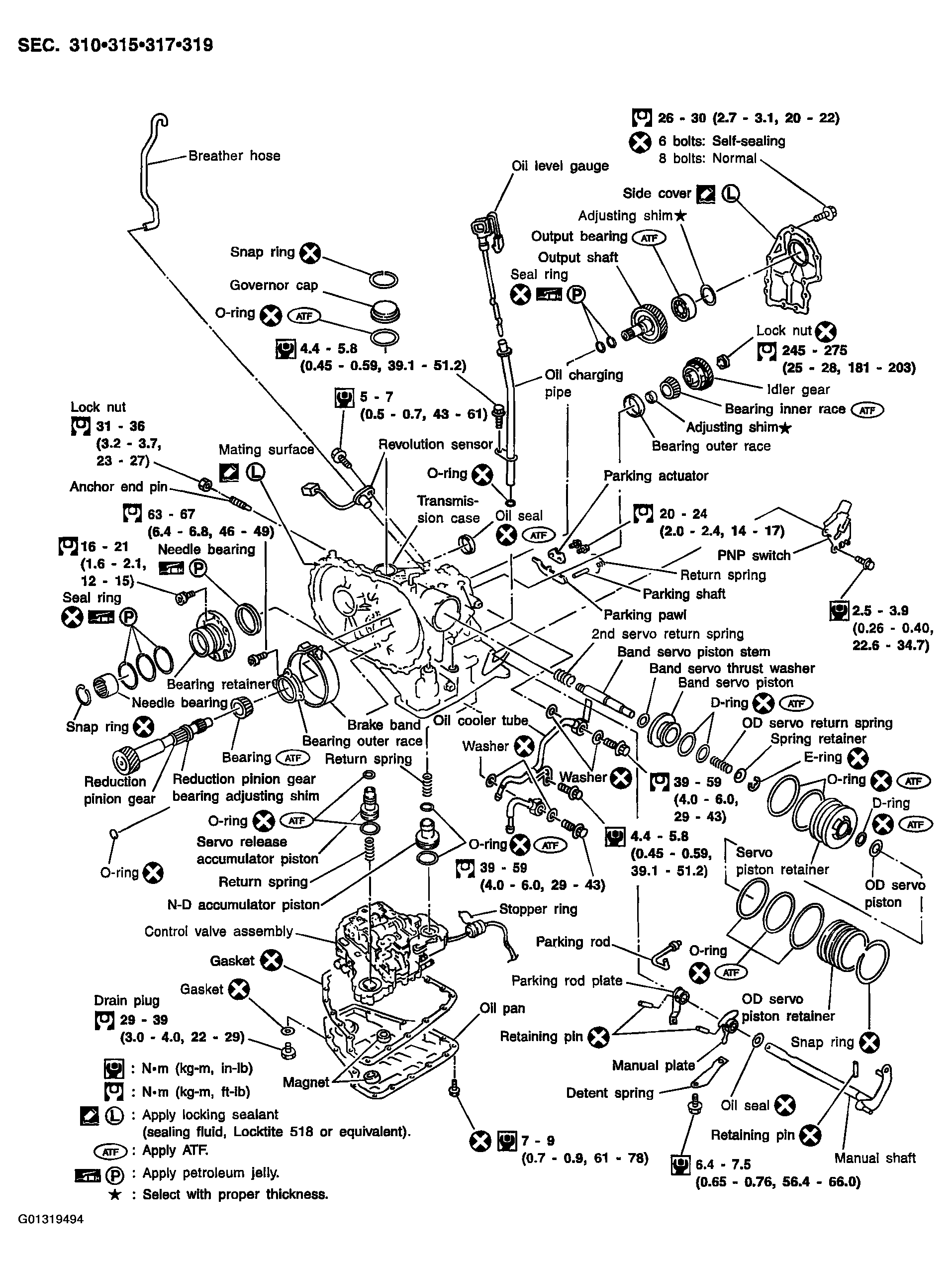

Fig 3: Exploded View Of Automatic Transaxle (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
