Final Drive: Components

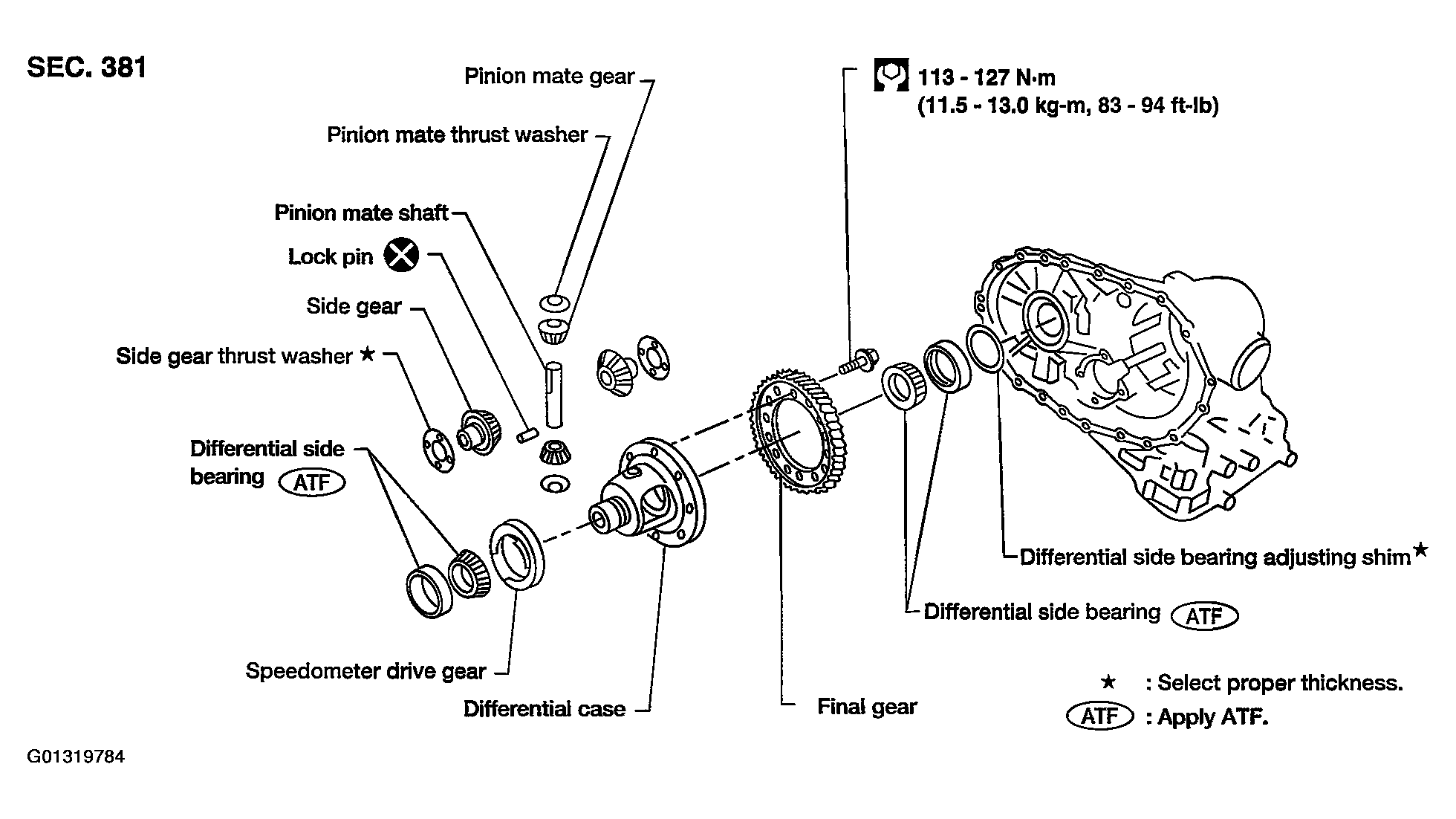

Fig 1: Identifying Final Drive Components

G01319784

Courtesy of NISSAN MOTOR CO., U.S.A.
