Band Servo Piston Assembly: Components

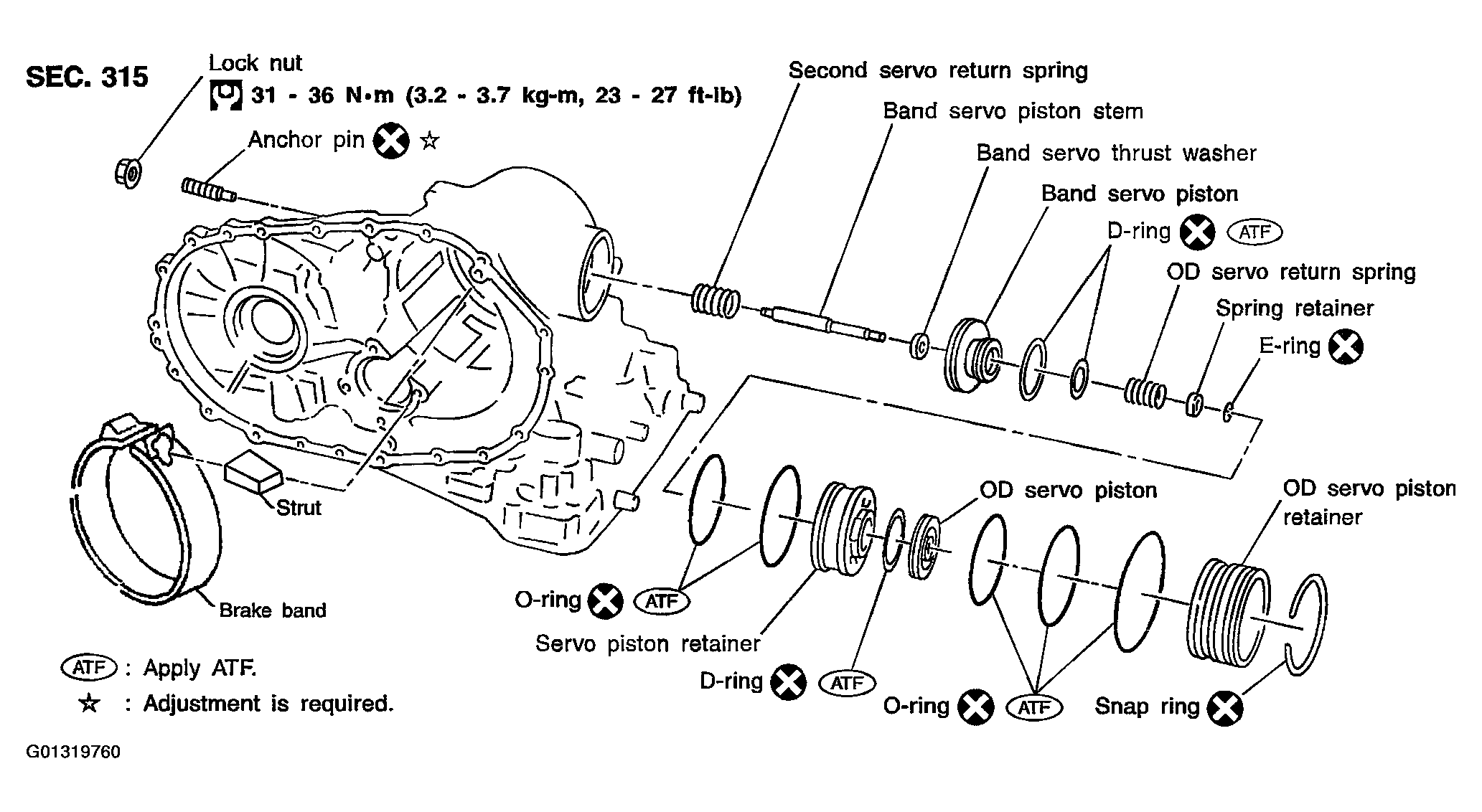

Fig 1: Exploded View Band Servo Piston Assembly

G01319760

Courtesy of NISSAN MOTOR CO., U.S.A.
