Diagnostic Procedure

  1. If using CONSULT-II, go to next step. If using generic scan tool, go to step  3.

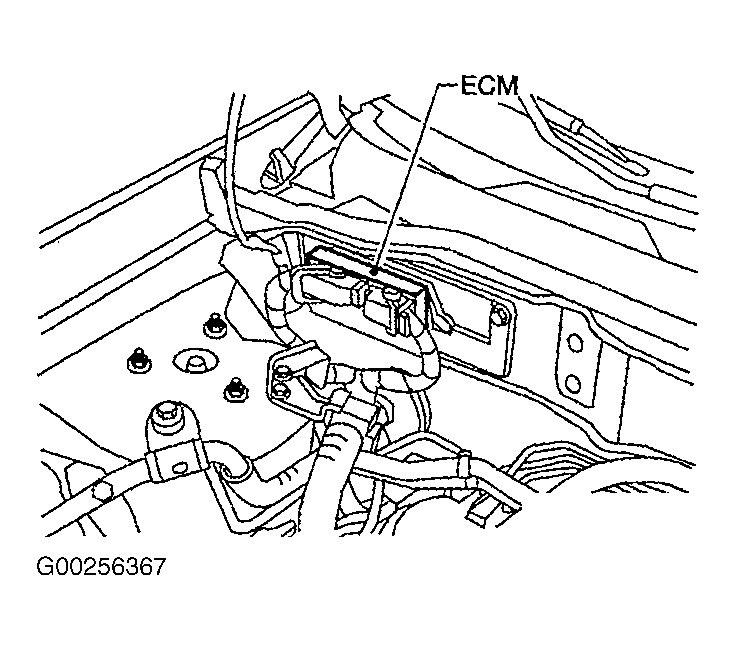

  2. Turn ignition on. Select SELF-DIAG RESULTS mode with CONSULT-II. Press ERASE. Perform DTC CONFIRMATION TEST  again. If 1st trip DTC is detected, replace ECM. See Figure. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING , THROTTLE VALVE CLOSED POSITION LEARNING , and IDLE AIR VOLUME LEARNING  under PROGRAMMING. If 1st trip DTC is not detected, test is complete.
  3. Turn ignition on. Select MODE 4 with scan tool. Press ERASE. Perform DTC CONFIRMATION TEST  again. If 1st trip DTC is detected, replace ECM. See Figure. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING , THROTTLE VALVE CLOSED POSITION LEARNING , and IDLE AIR VOLUME LEARNING  under PROGRAMMING. If 1st trip DTC is not detected, test is complete.
