Connector Identification: Notes

To identify connector location, see Fig 1-Fig 4 . For wire color and connector color abbreviation definitions, see WIRE COLOR IDENTIFICATION  table.

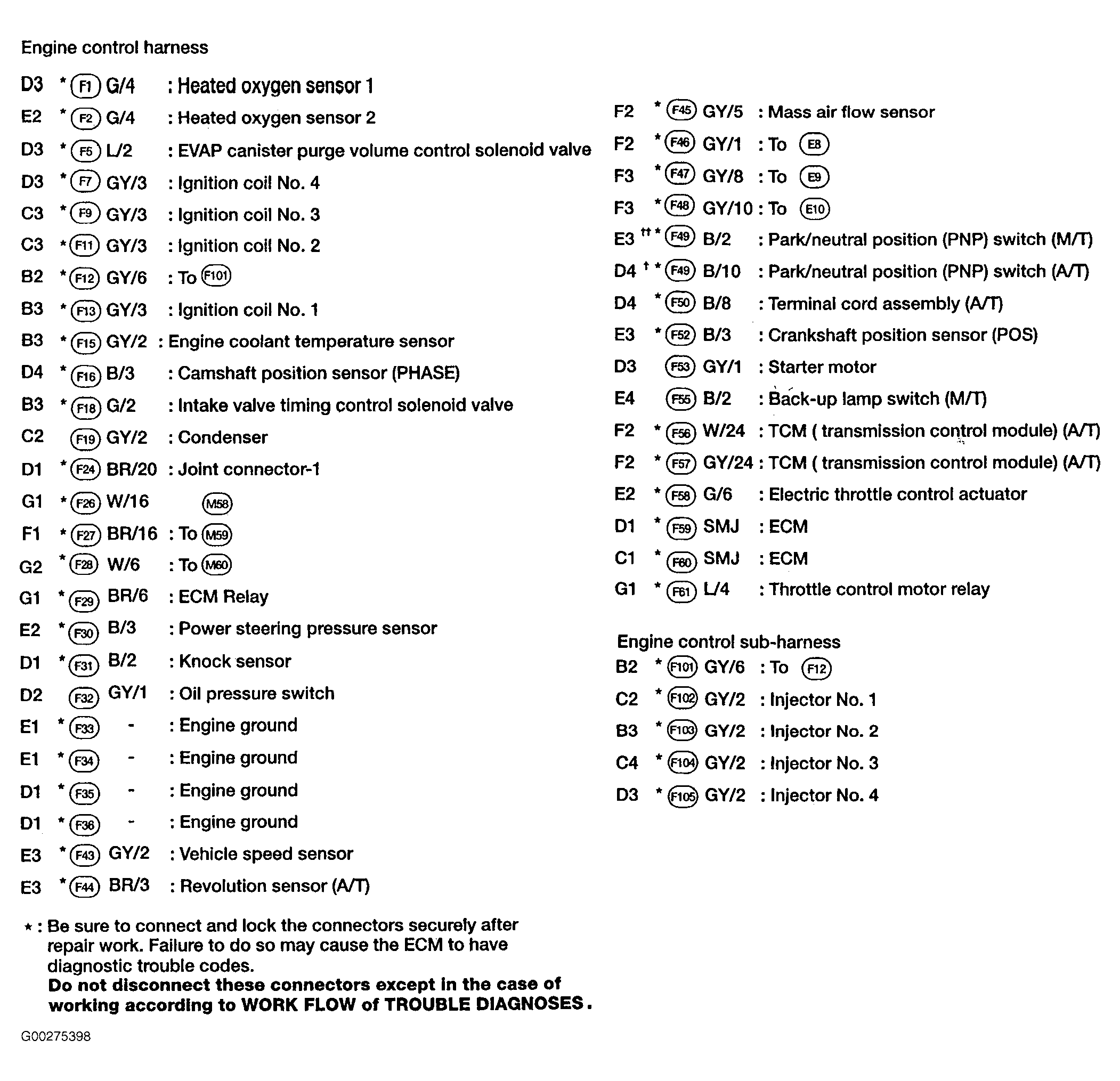

Fig 1: Locating Engine Control Harness Connectors - ULEV (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

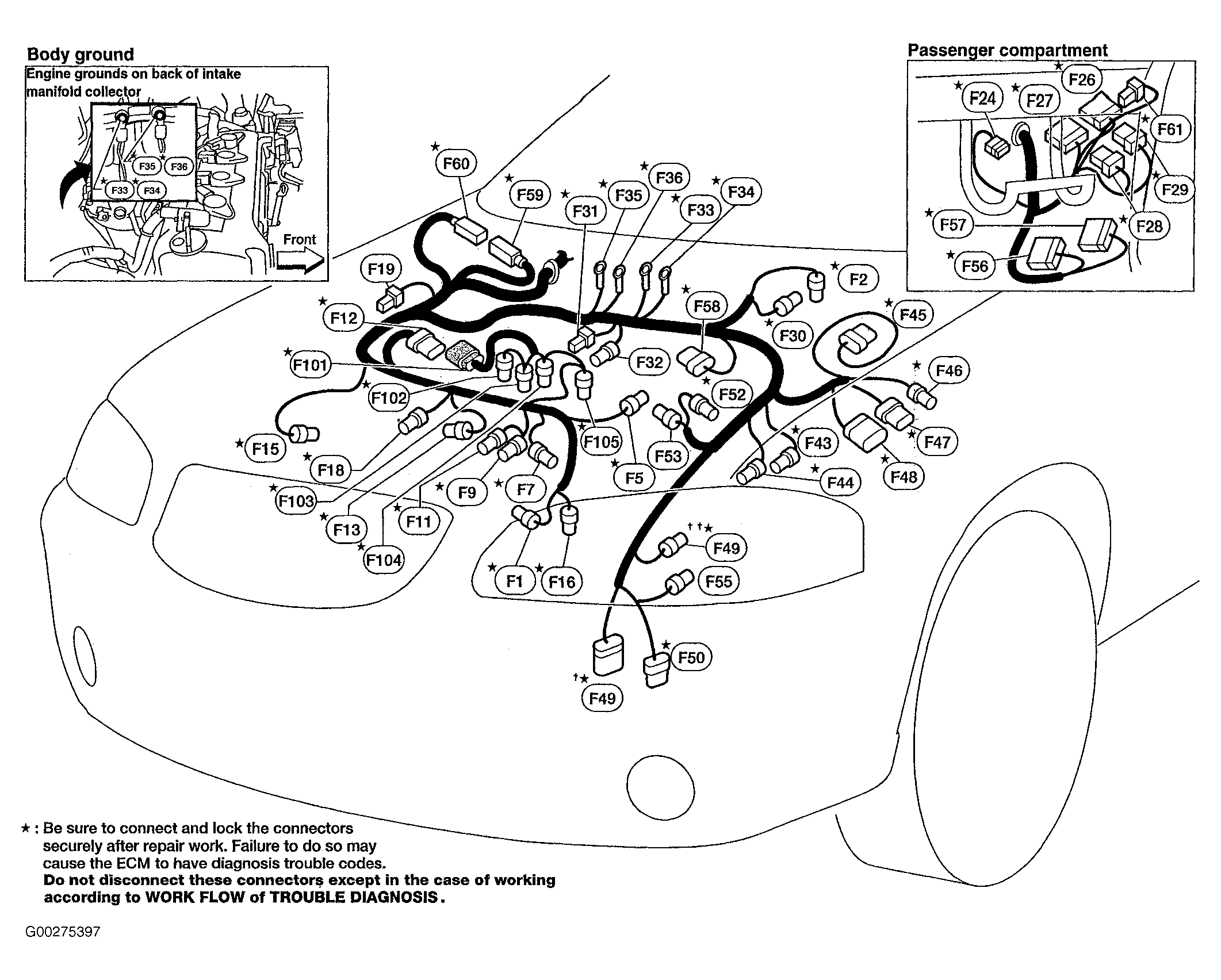

Fig 2: Locating Engine Control Harness Connectors - ULEV (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

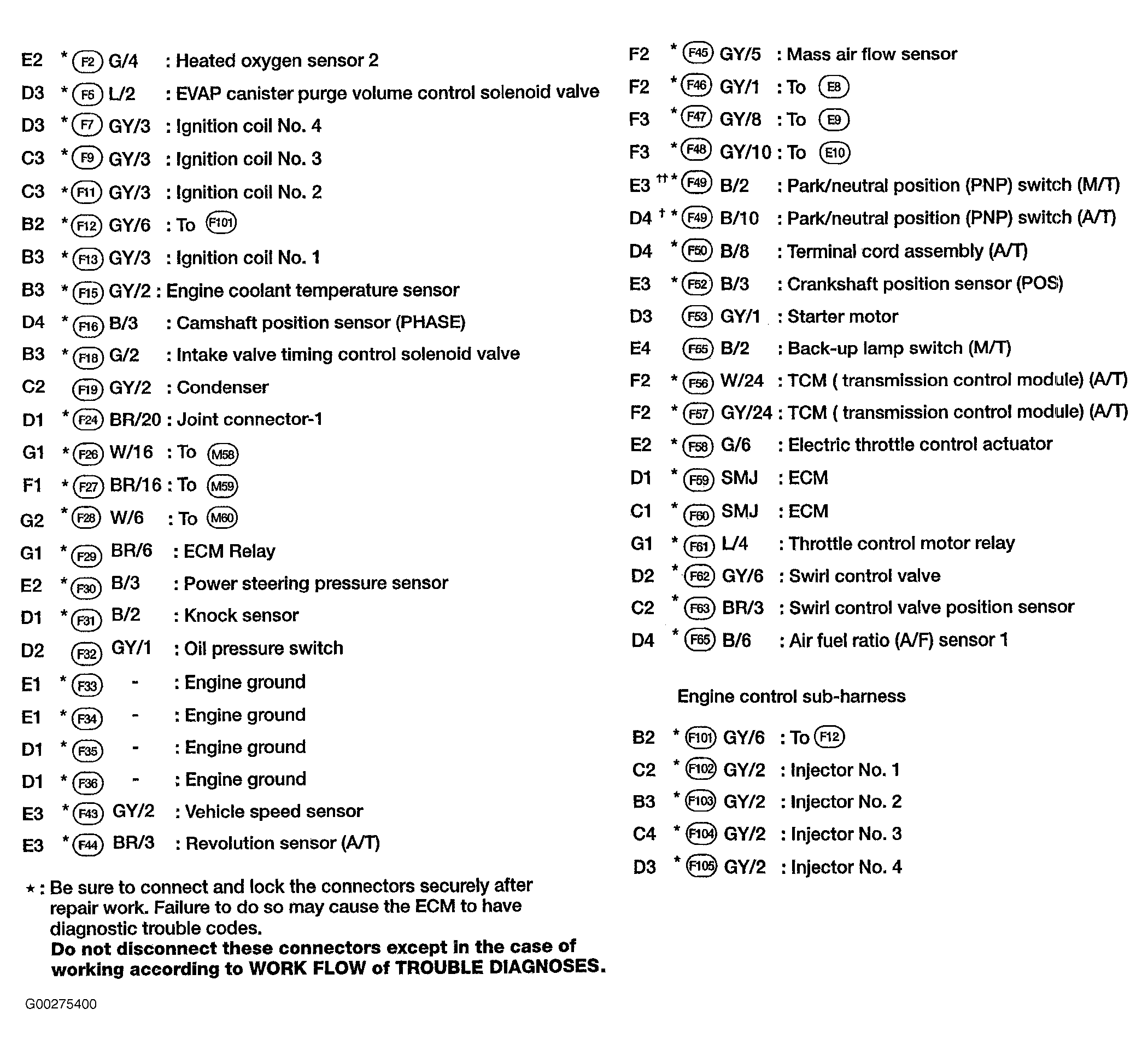

Fig 3: Locating Engine Control Harness Connectors - SULEV (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Locating Engine Control Harness Connectors - SULEV (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
