Removal and Installation: Notes

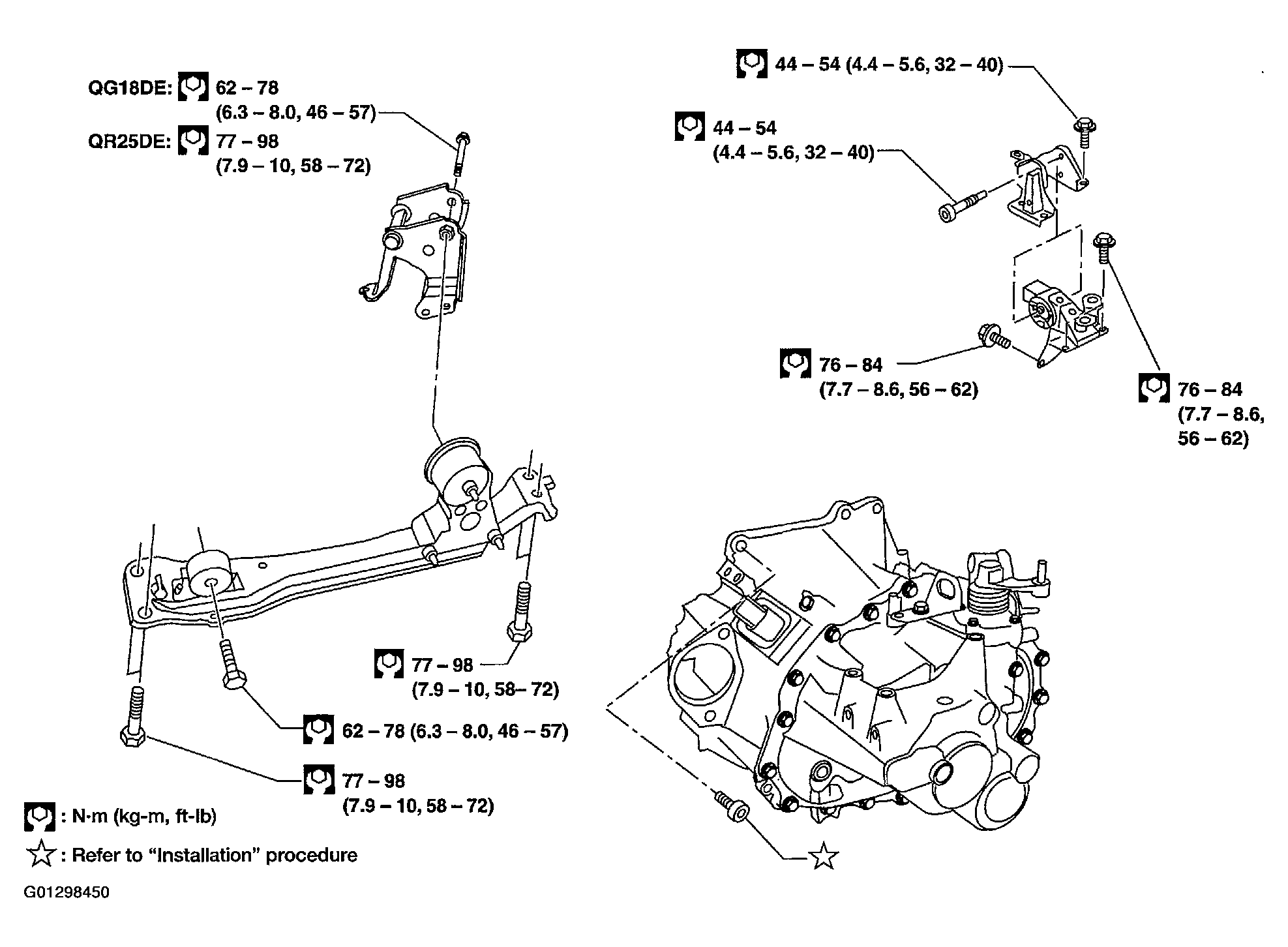

Fig 1: Removing And Installing Transaxle Assembly

G01298450

Courtesy of NISSAN MOTOR CO., U.S.A.
