Clutch System (Qr25DE): Piping: Installation

  1. When installing the clutch hose into the bracket, position the lock plate in the specified direction as shown to secure the clutch hose.
    CAUTION: Install the clutch hose without twisting or bending it.

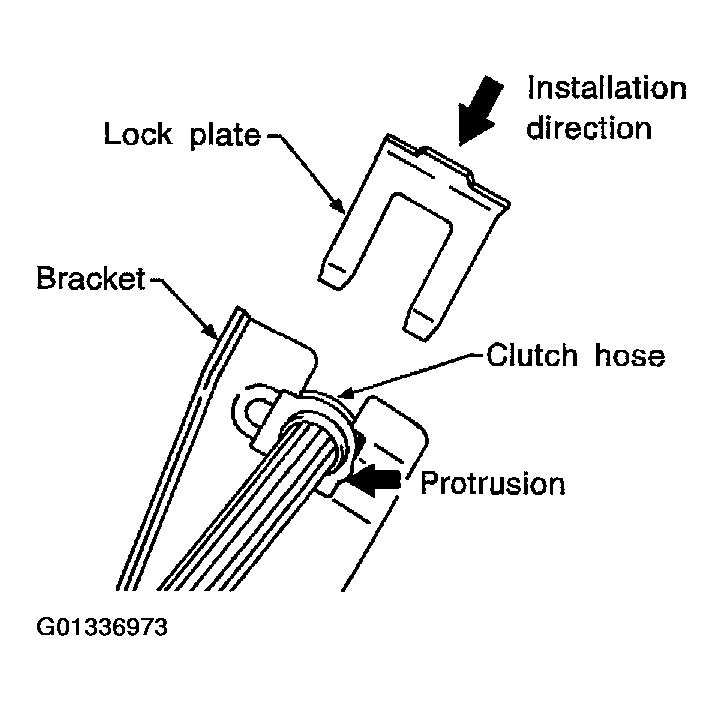

    2. Fig 1: Installing Clutch Hose To Bracket, Face Lock Plate
    G01336973Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Tighten the flare nut to specification, using a flare nut wrench.

    Flare nut: 15 - 18 N.m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

    CAUTION: Be careful not to damage the flare nut and clutch tube.
  3. Position the clutch hose and install the union bolt and two new copper washers on to the operating cylinder, and tighten the union bolt to specification.

    Union bolt: 17 - 19 N.m (1.7 - 2.0 kg-m, 13 - 14 ft-lb)

  4. Bleed the air from the clutch hydraulic system. Refer to "BLEEDING PROCEDURE ".
  5. Install the engine air cleaner and air duct.
