Operating Cylinder: Components

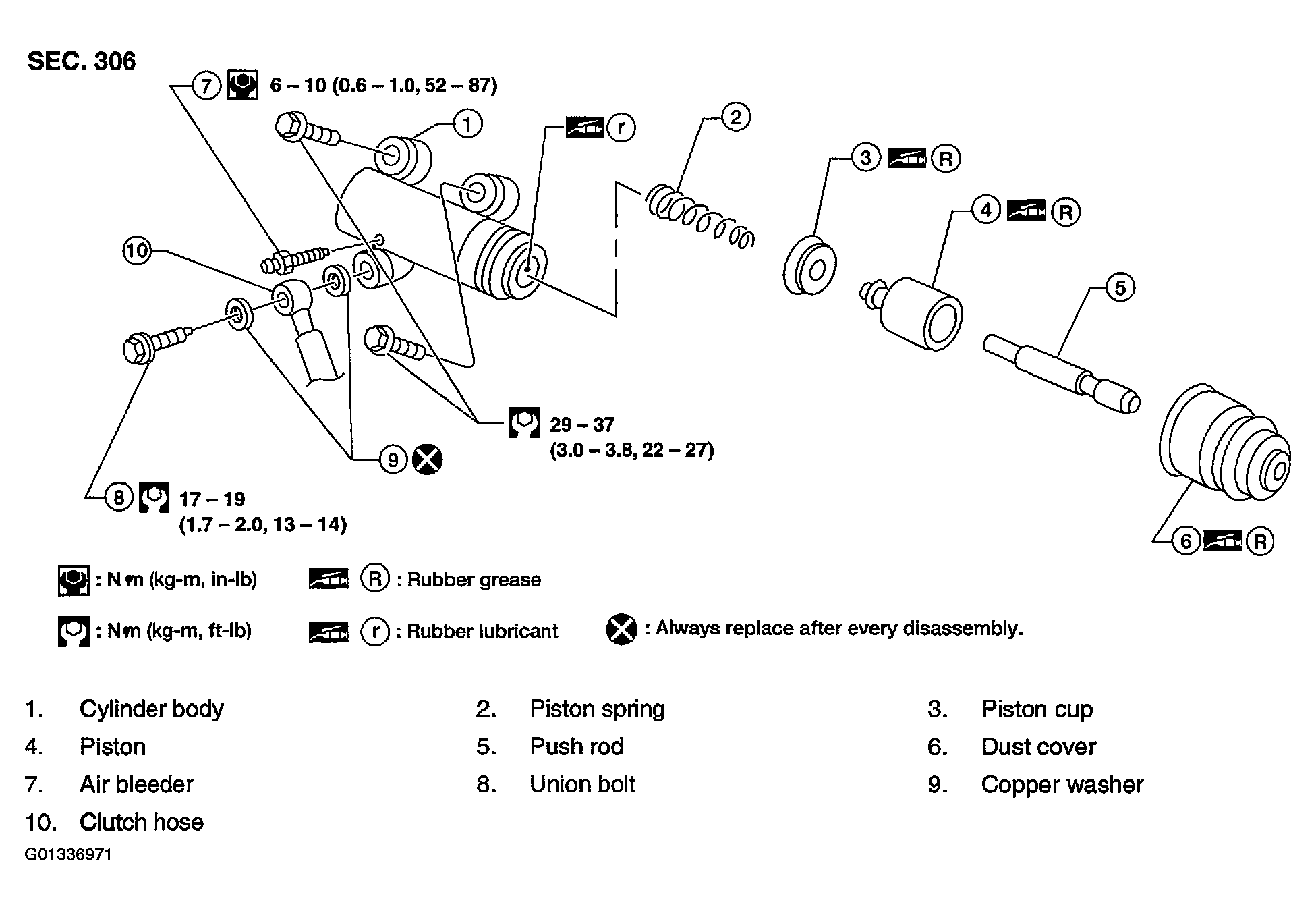

Fig 1: Exploded View Of Operating Cylinder Components And Fastener Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
