Home
>>
Nissan-Datsun
>>
2003
>>
Sentra SE-R, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch System (Qr25DE)
>>
Clutch System
>>
Components
>>
Notes
Clutch System: Components: Notes

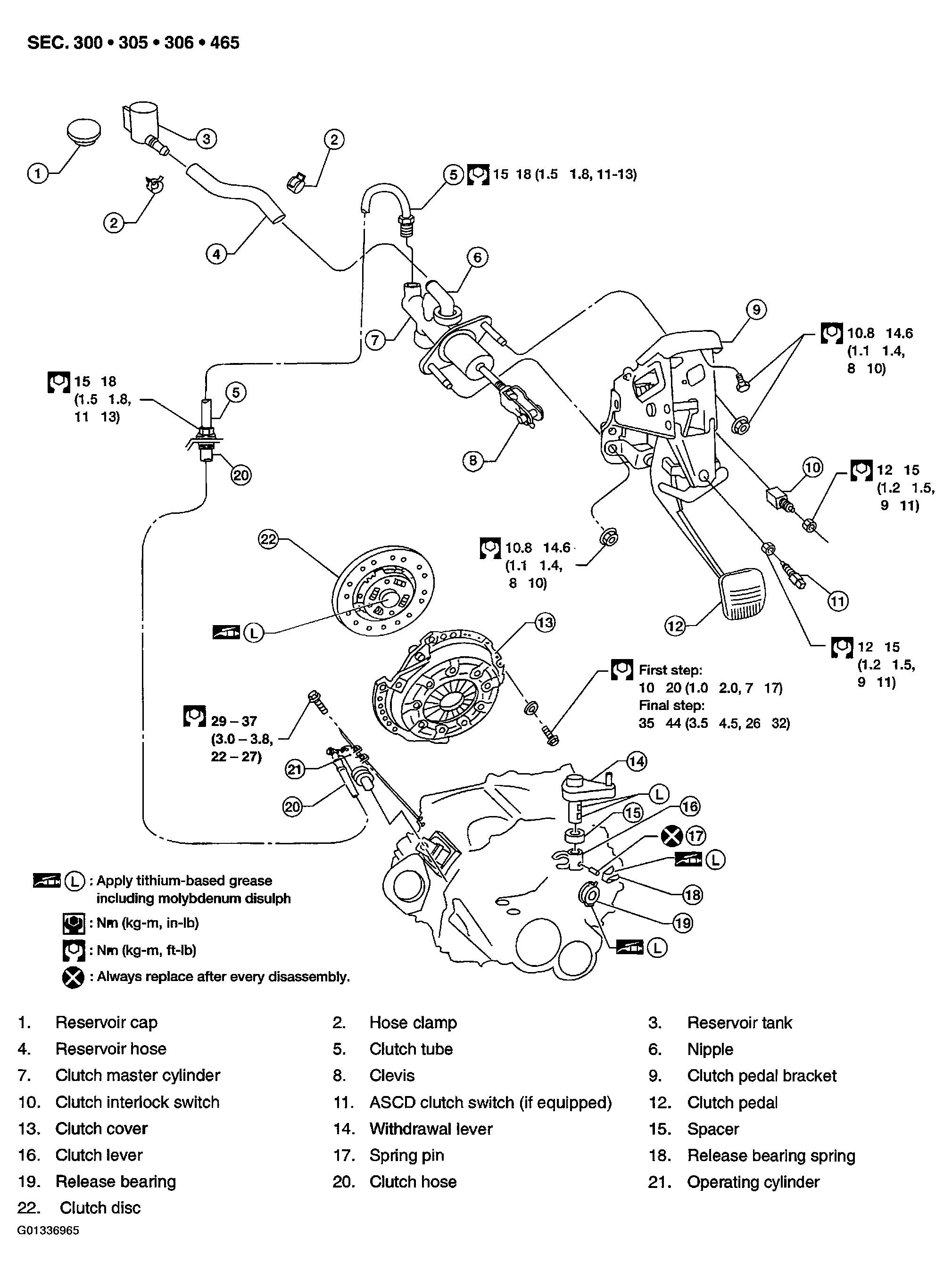

Fig 1: Clutch System Replacement Components And Fastener Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
