Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools Illustrated here.

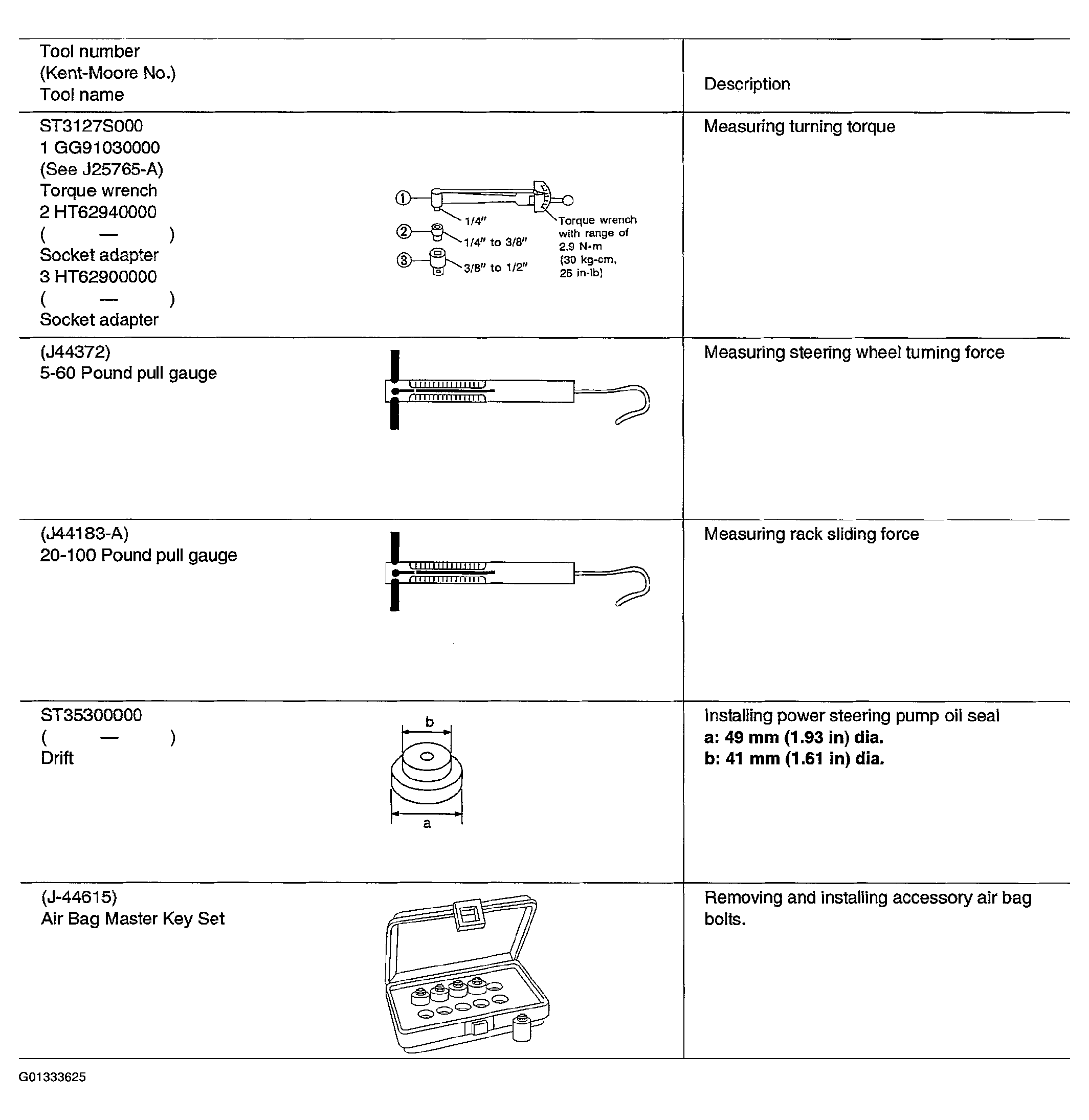

Fig 1: Special Service Tools Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

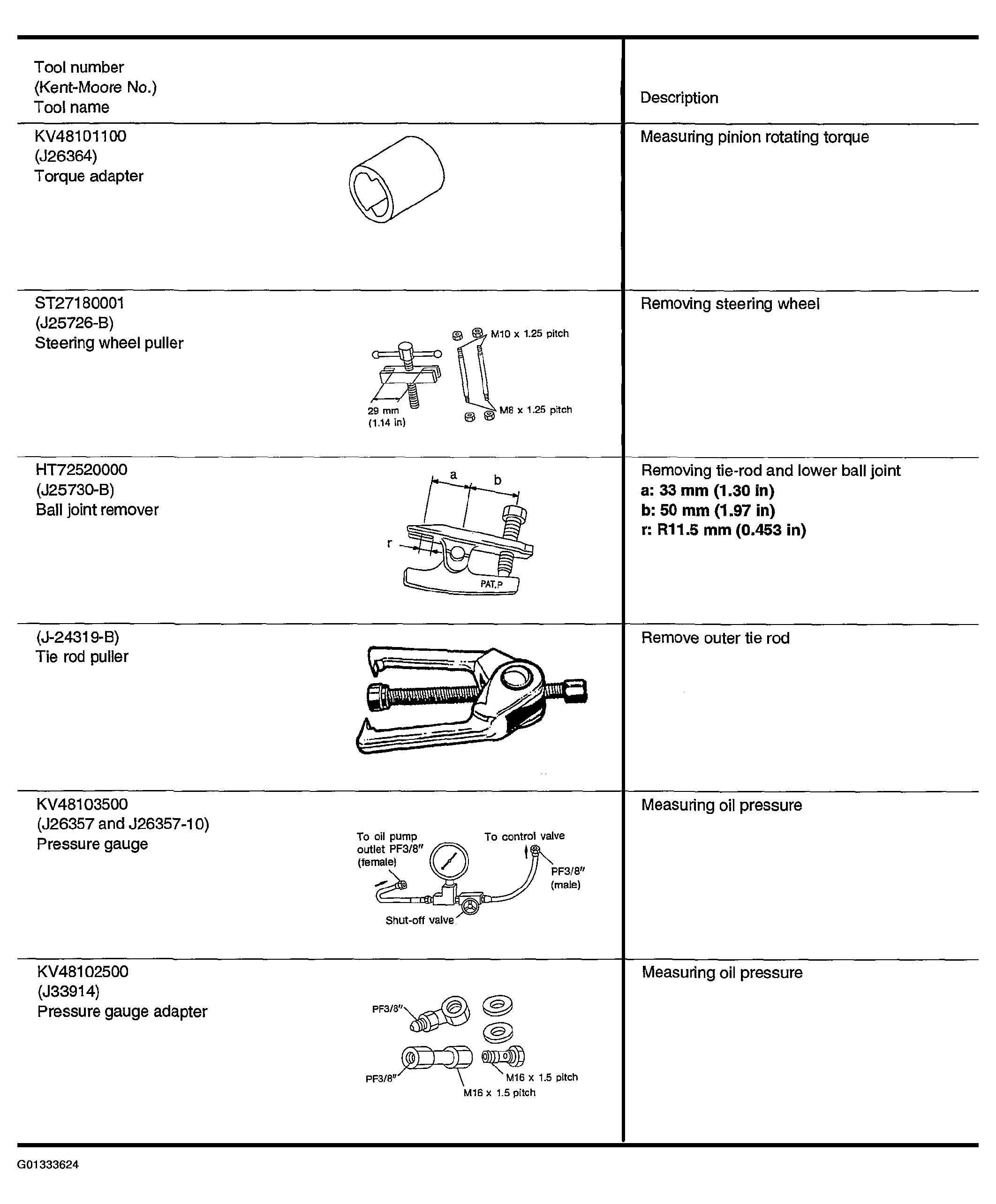

Fig 2: Special Service Tools Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
