Section 5 (Automatic Transaxle (Re4F03B))
>>
Service Data And Specifications (SDS)
>>
Revolution Sensor
Revolution Sensor
WARNING:
This page is about a different variant/trim than selected.

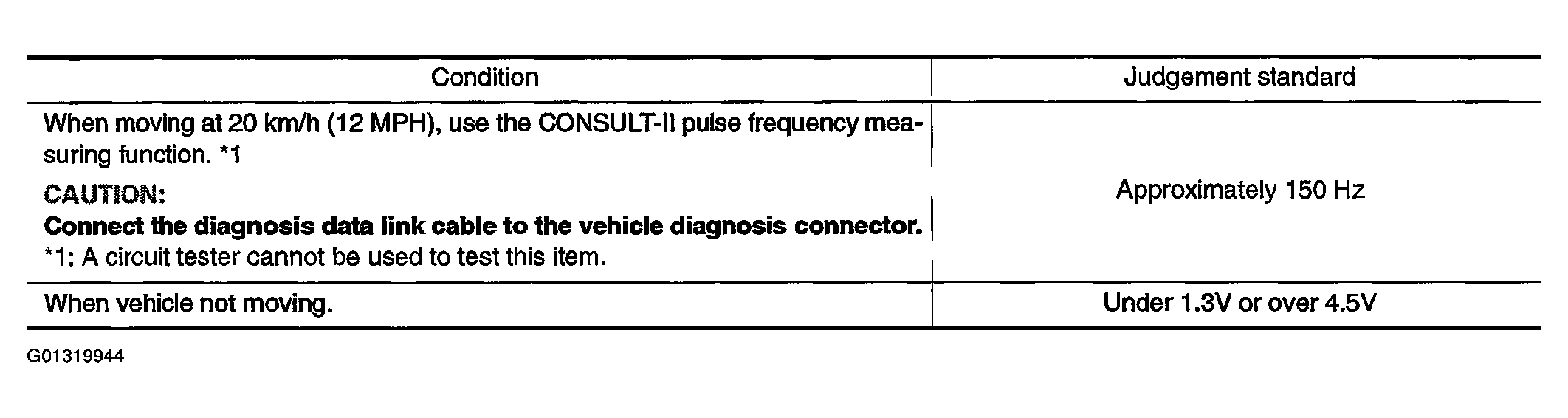

Fig 1: Revolution Sensor Condition Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
