Control System: Outline

WARNING: This page is about a different variant/trim than selected.

The automatic transaxle senses vehicle operating conditions through various switches and sensors. It always controls the optimum shift position and reduces shifting and lock-up shocks.

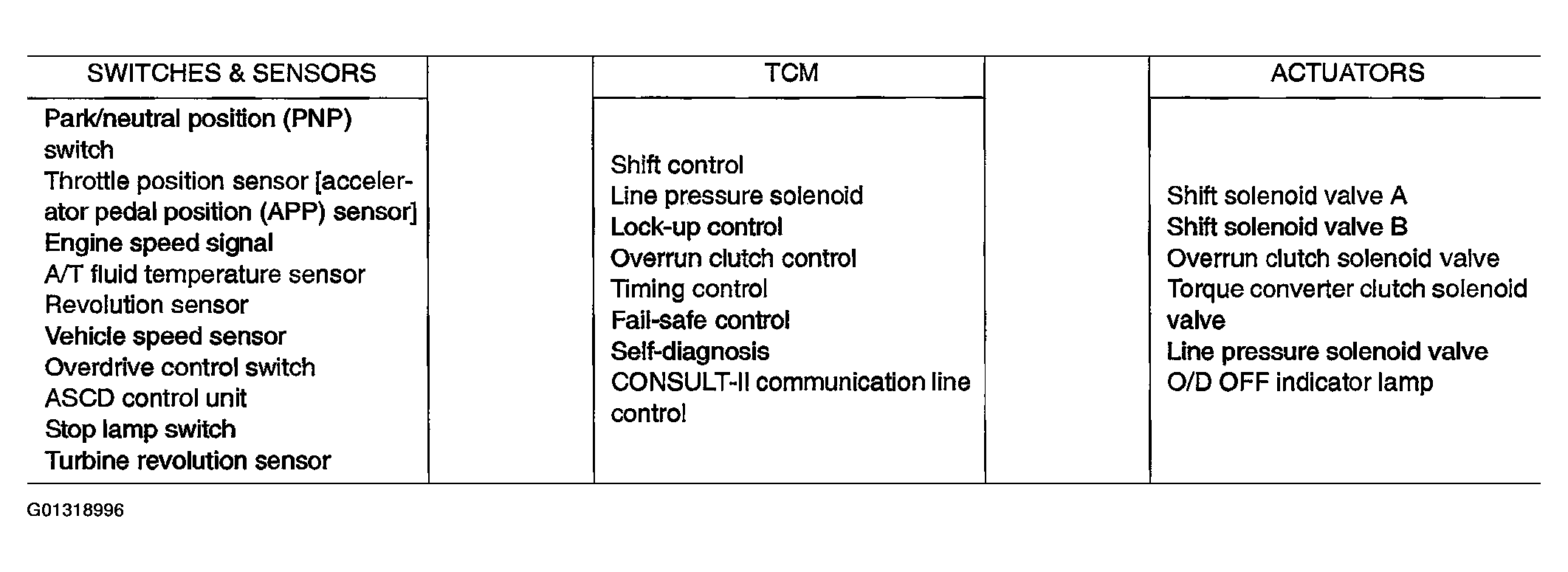

Fig 1: Control System - Outline
G01318996Courtesy of NISSAN MOTOR CO., U.S.A.
