Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

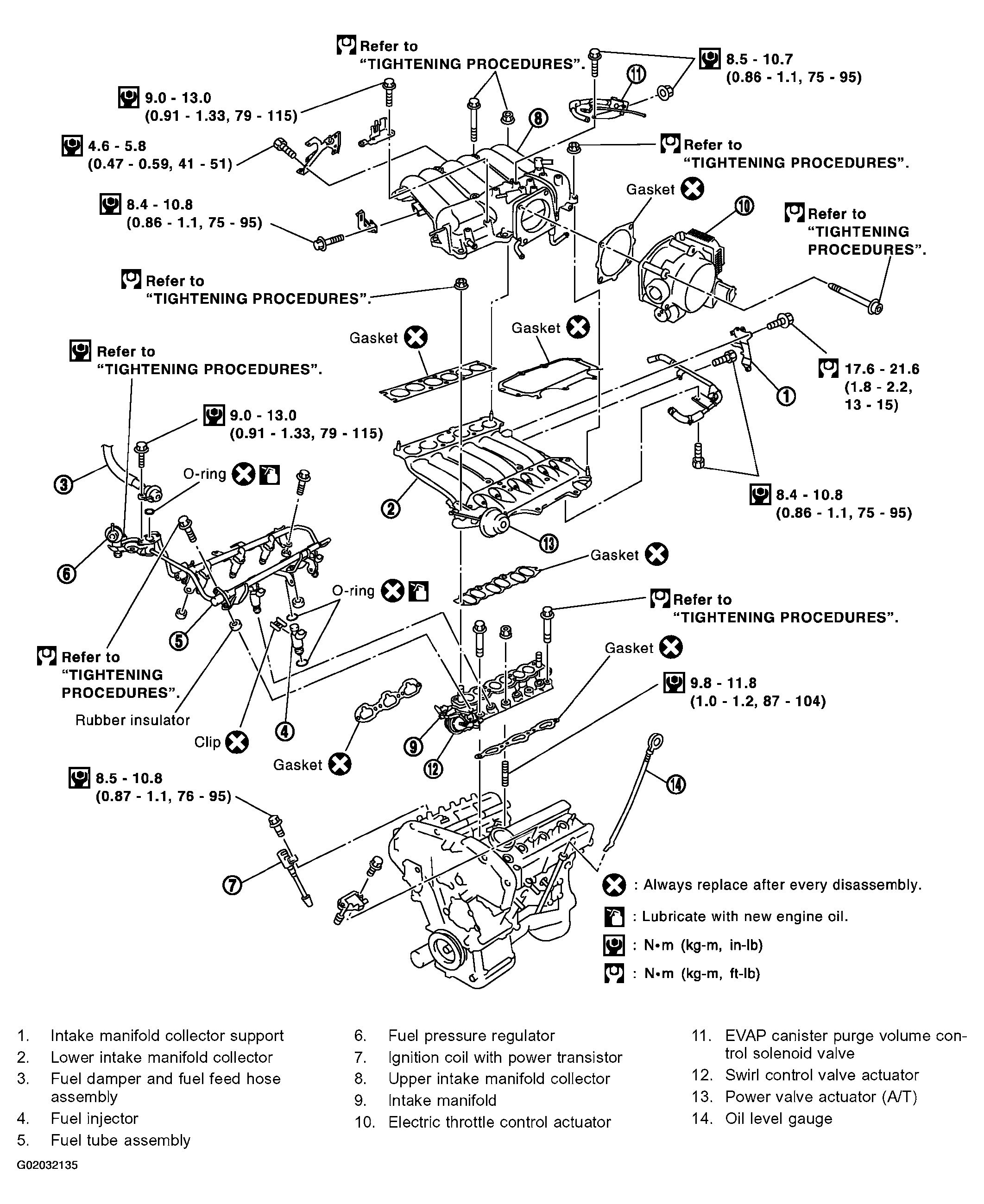

Fig 1: Removal And Installation - Outer Component Parts(1 Of 2)
G02032135Courtesy of NISSAN MOTOR CO., U.S.A.

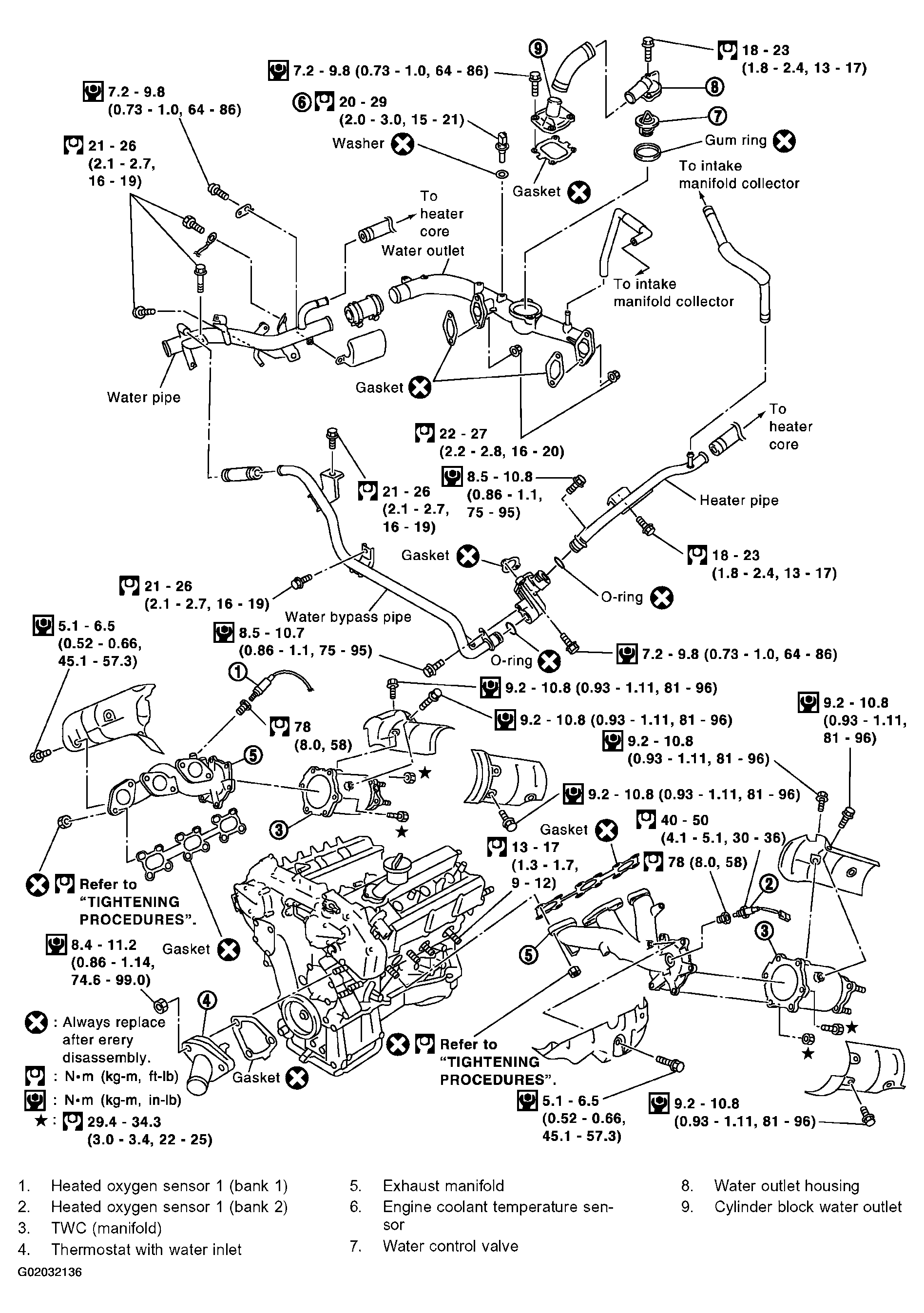

Fig 2: Removal And Installation - Outer Component Parts(2 Of 2)
G02032136Courtesy of NISSAN MOTOR CO., U.S.A.
