Table Of BCM - Combination Switch Operations

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

BCM reads operation status of combination switch using combinations show in table below.

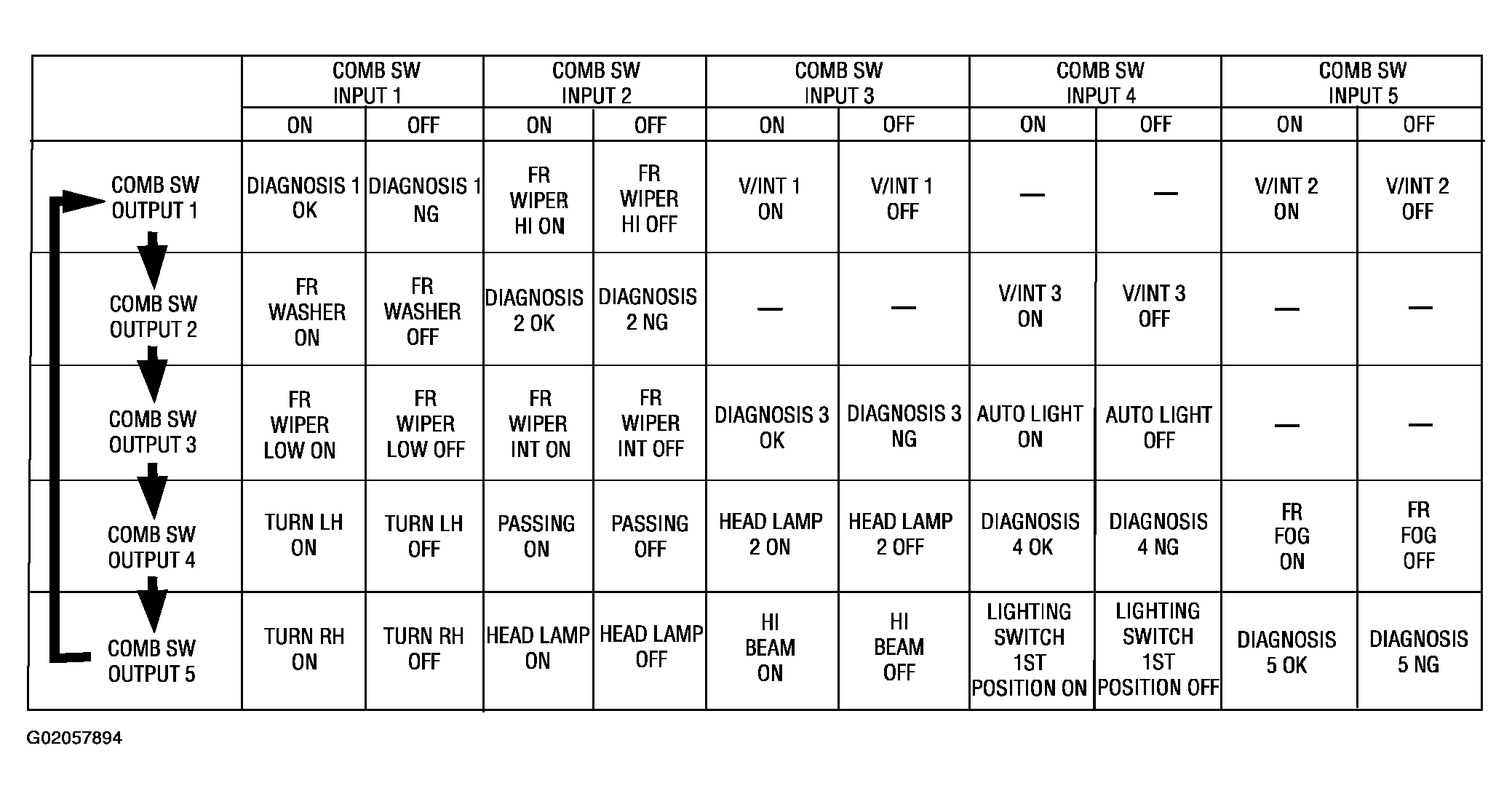

Fig 1: Table Of BCM - Combination Switch Operations
G02057894Courtesy of NISSAN MOTOR CO., U.S.A.
