BCM Wiper Switch Reading Function

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

BCM reads combination switch (wiper switch) status, and controls front wipers based on the results.

BCM is a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads 20 types of switch data and 5 types of diagnosis data.

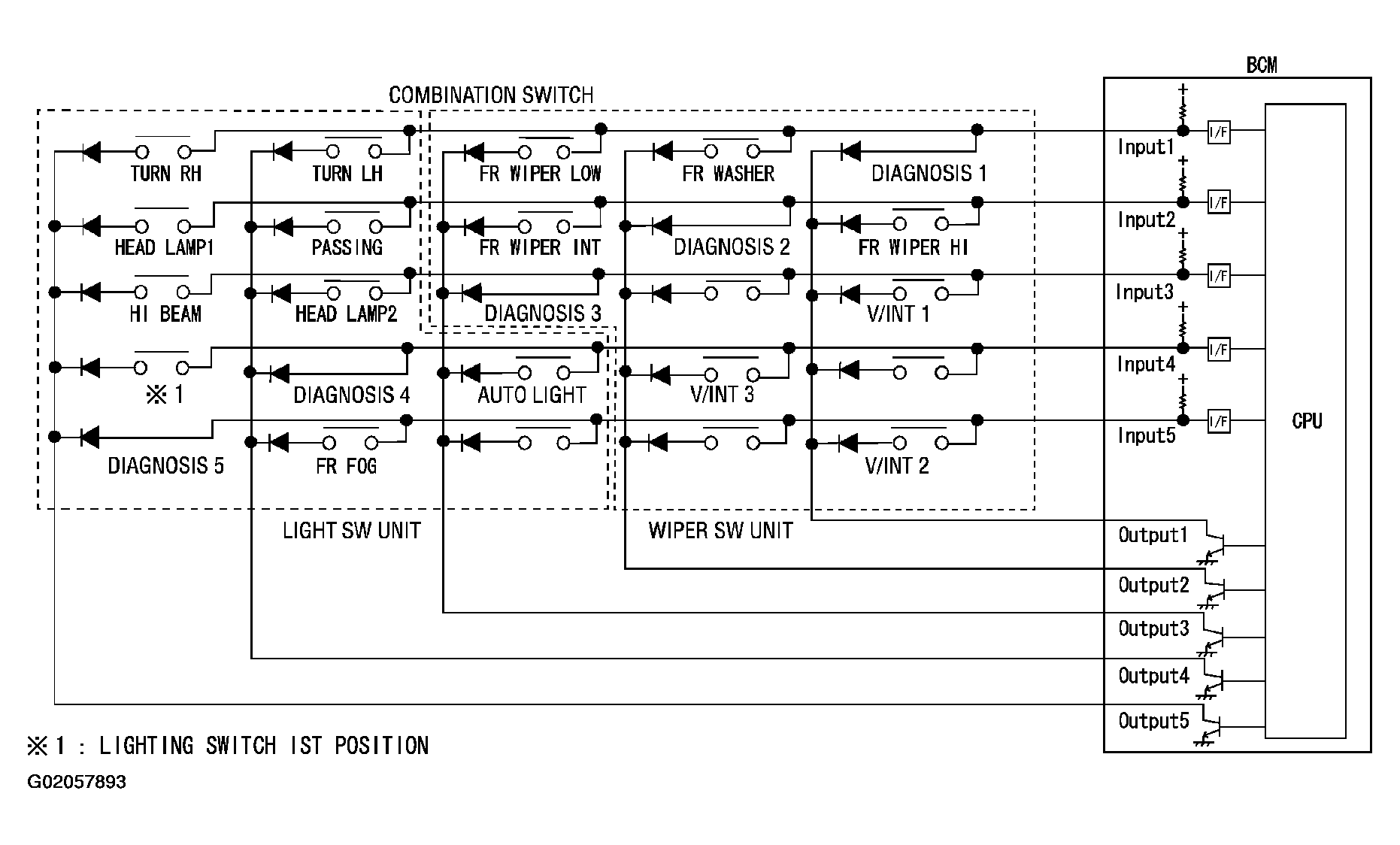

Fig 1: BCM Wiper Switch Reading Function Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
