Consult-II Operation

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

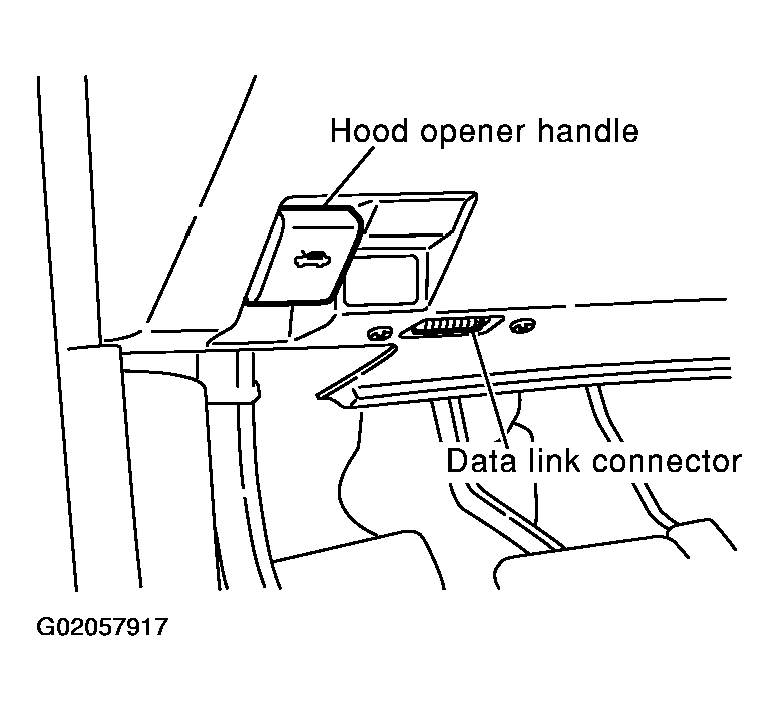

    Fig 1: Locating Data Link Connector
    G02057917Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

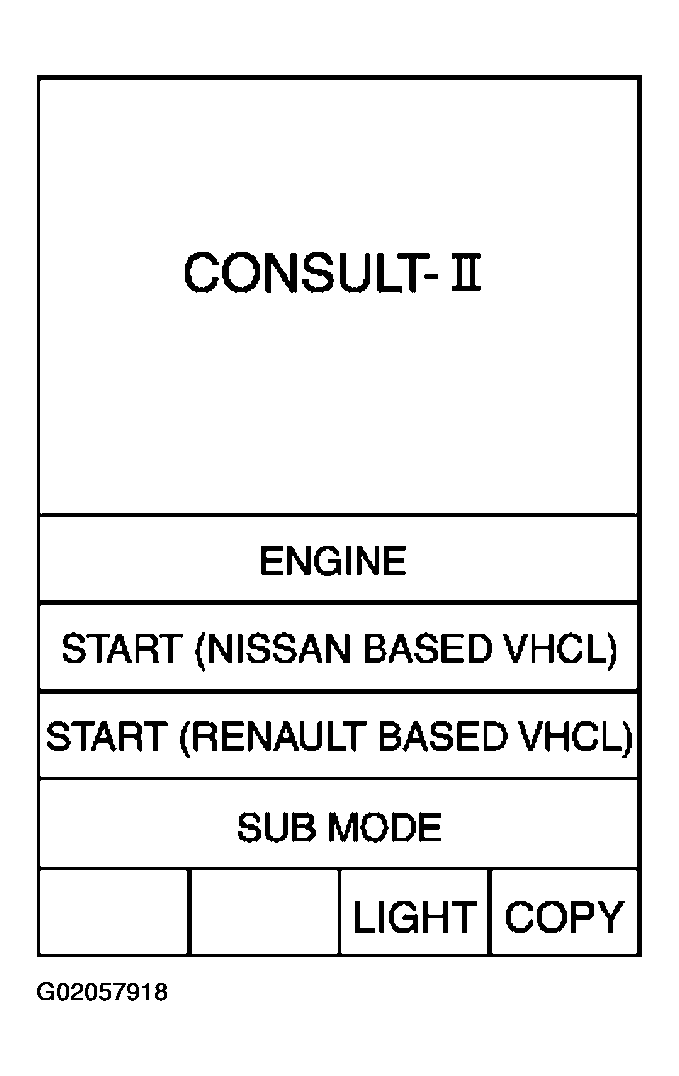

    Fig 2: CONSULT-II Main Menu Display
    G02057918Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

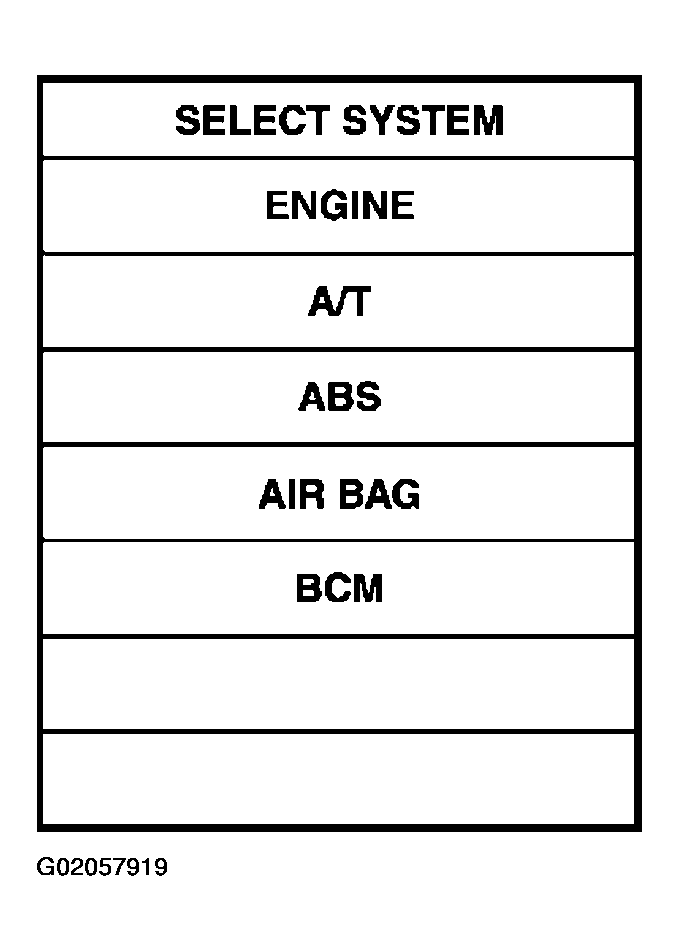

    Fig 3: CONSULT-II Select System Display
    G02057919Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "WIPER".

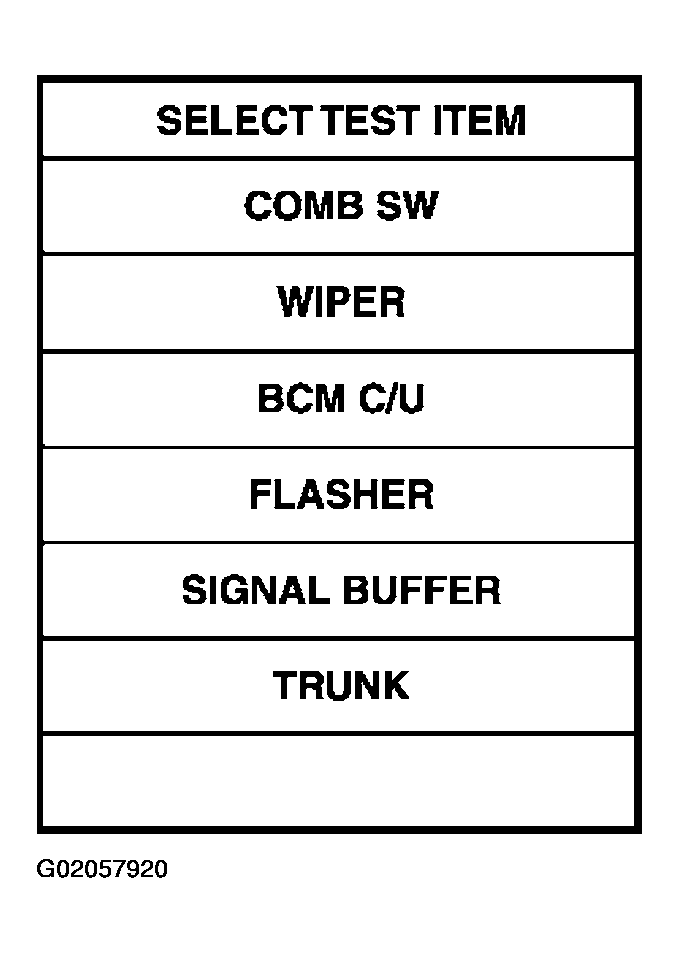

    Fig 4: CONSULT-II Select Test Item Display
    G02057920Courtesy of NISSAN MOTOR CO., U.S.A.
