VDC Warning Lamp

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON" and "OFF" on screen. Make sure VDC OFF indicator lamp operates as shown in table below.

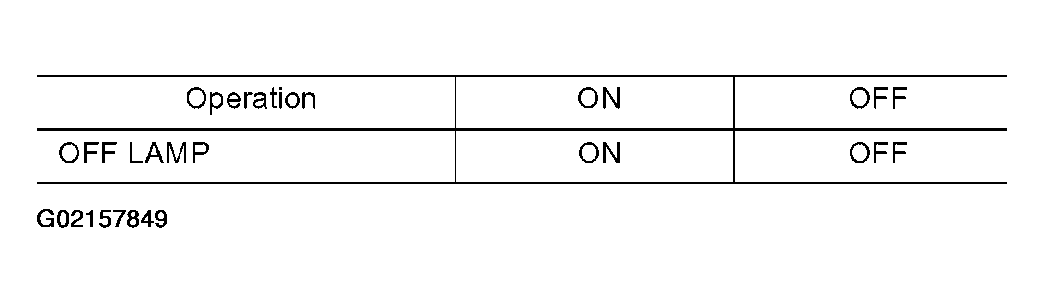

Fig 1: VDC Warning Lamp Operation Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.

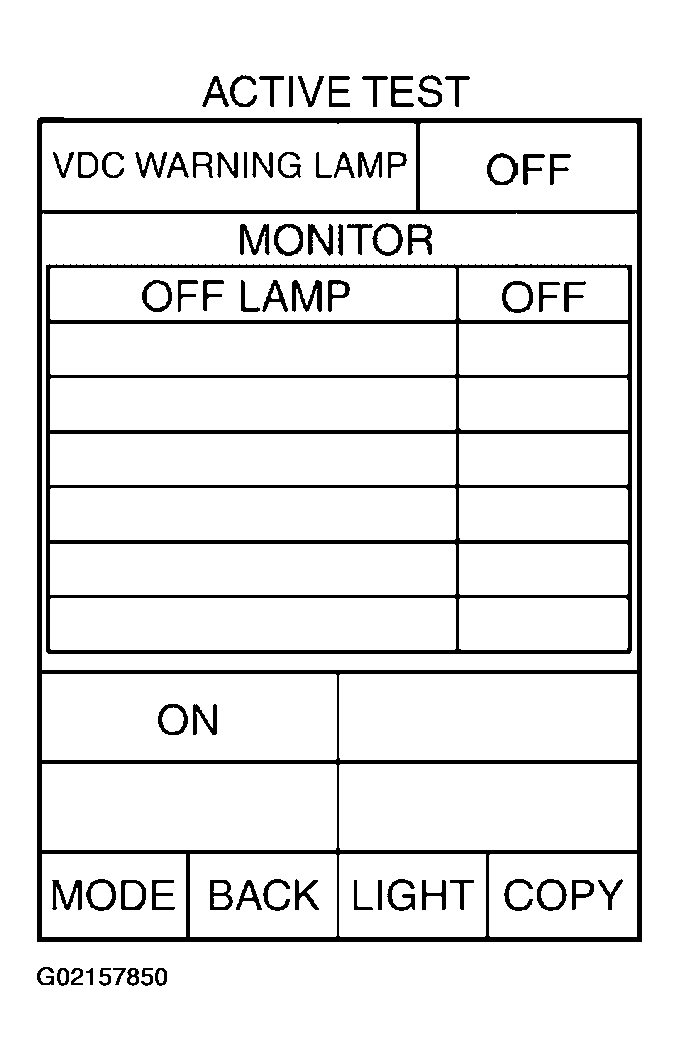

Fig 2: Checking VDC Warning Lamp With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "OFF" is touched on screen during active test, VDC OFF indicator lamp, SLIP indicator lamp, and ABS warning lamp all turn ON for a moment. This is normal.
