Base System

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

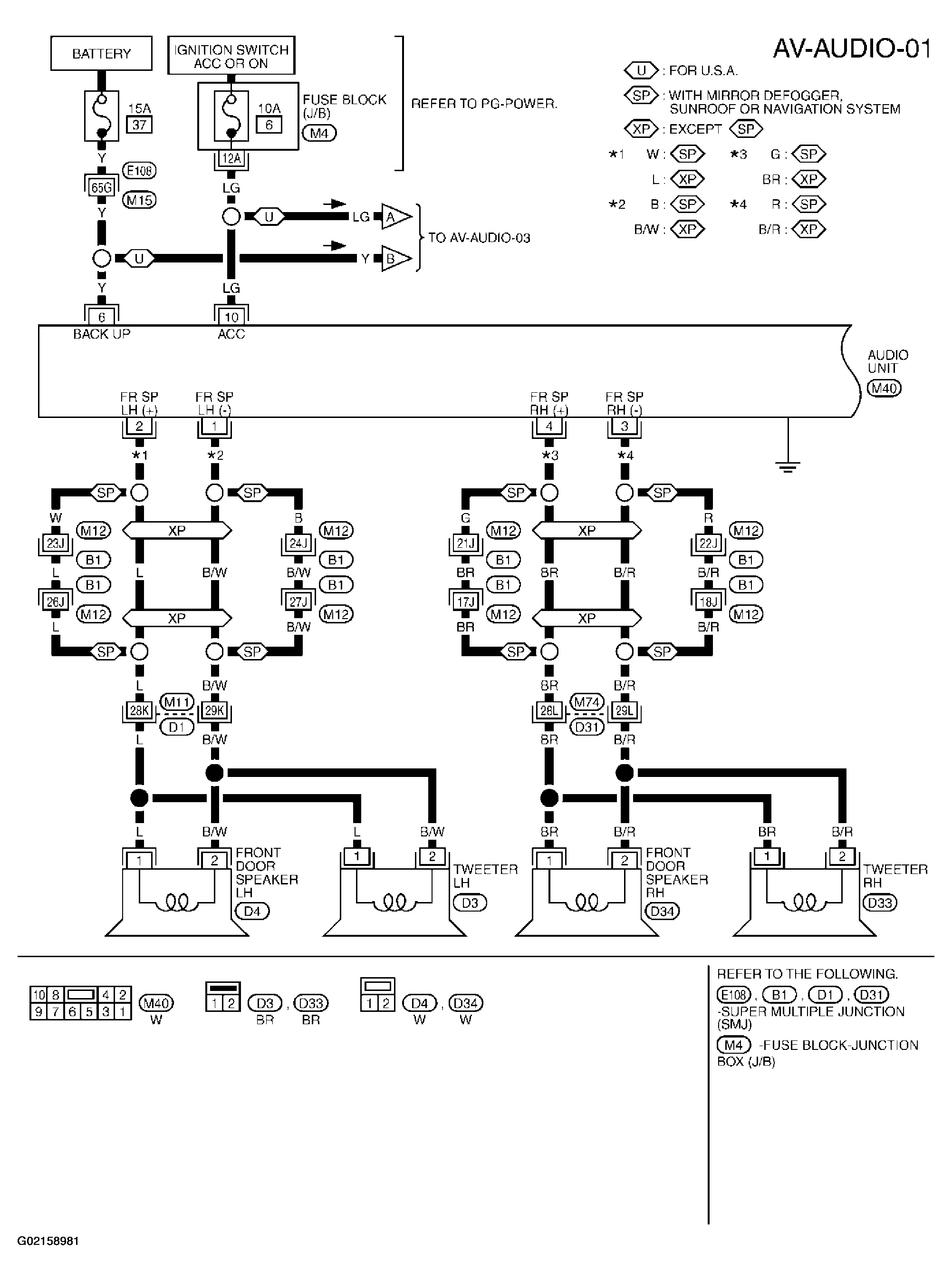

Fig 1: Audio-Wiring Diagram (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

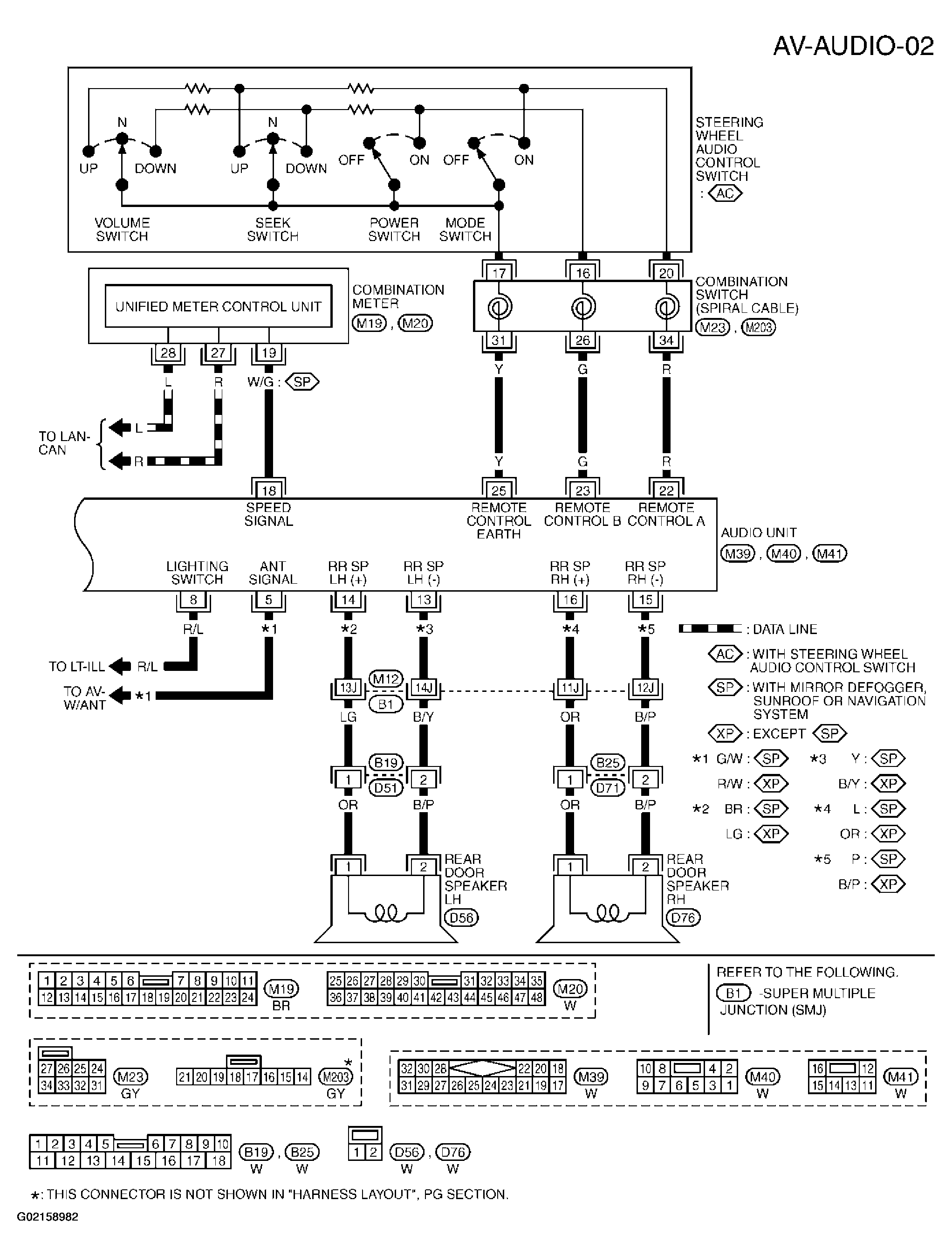

Fig 2: Audio-Wiring Diagram (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

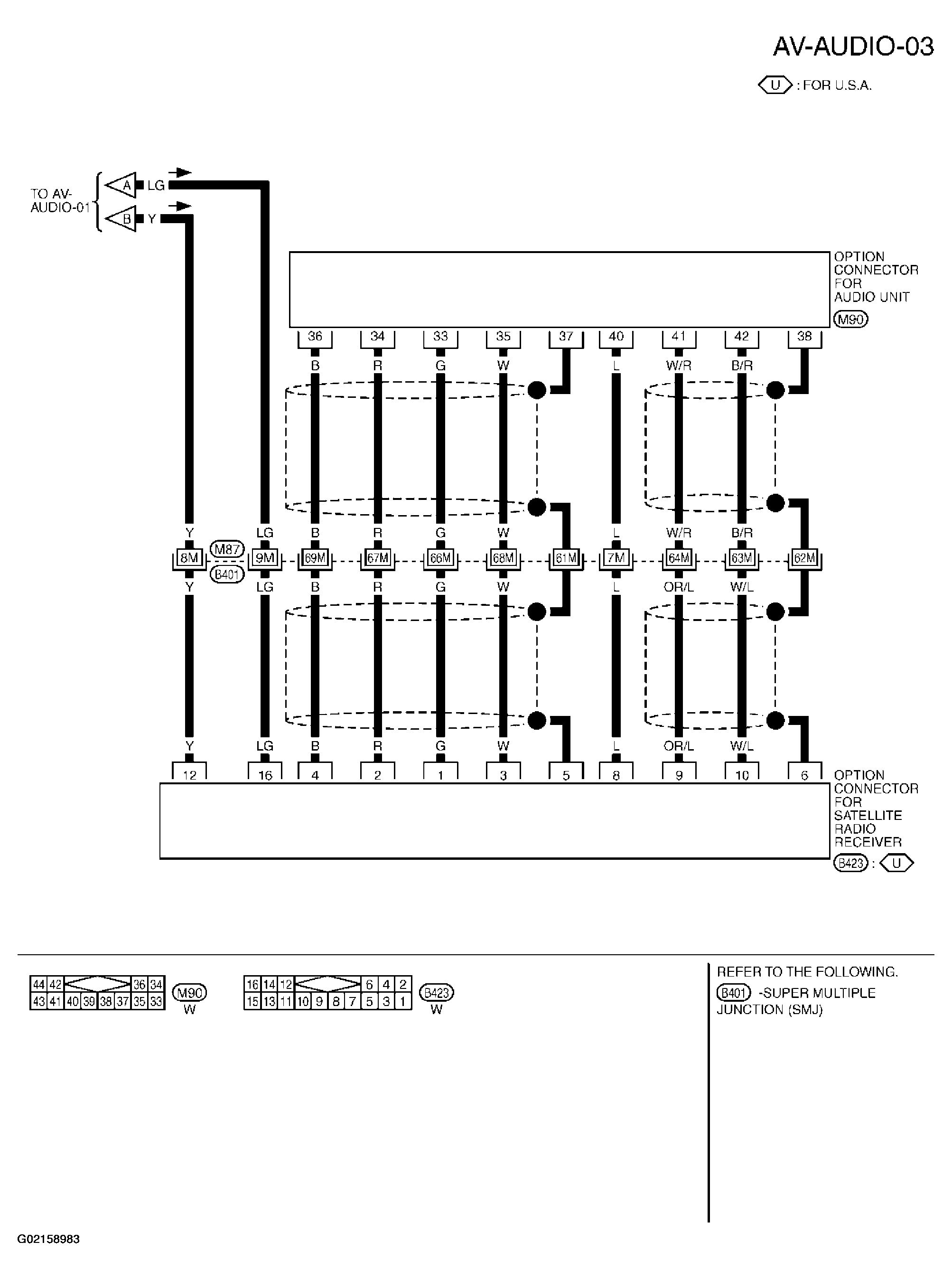

Fig 3: Audio-Wiring Diagram (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
