Removal And Installation Of Audio Unit

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform damper lock operation. Refer to "LOCKING CD AUTO-CHANGER MECHANISM ".
  2. Remove cluster lid C. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
  3. Unlock FPC (Flexible Print Circuit) connector lock on A/C and audio controller side.
  4. Pull off flexible printed circuit from connector.

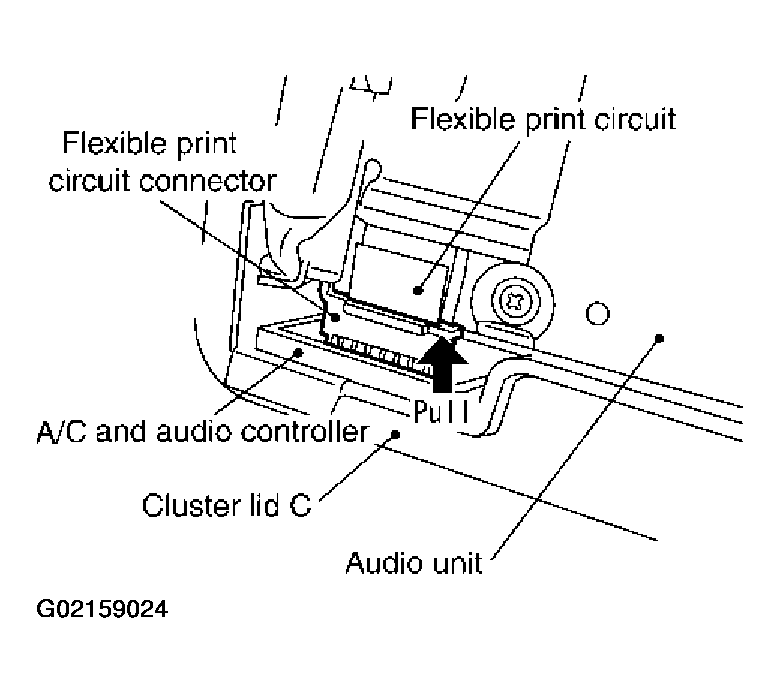

    Fig 1: Pulling Off Flexible Printed Circuit From Connector
    G02159024Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove screws (top: 2).

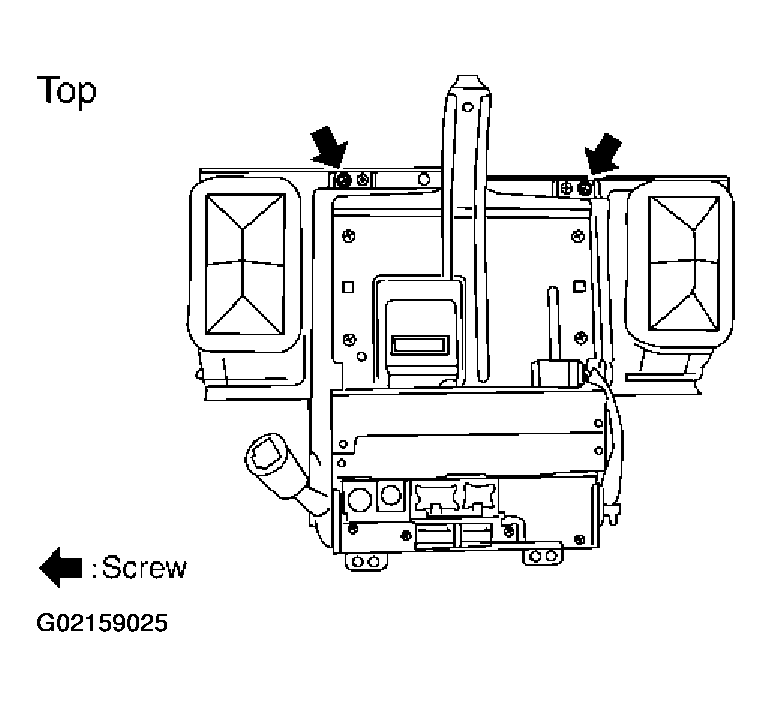

    Fig 2: Removing Screws (Top: 2)
    G02159025Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove screws (bottom: 4). Remove audio unit and display unit assembly (with navigation system) from cluster lid C.

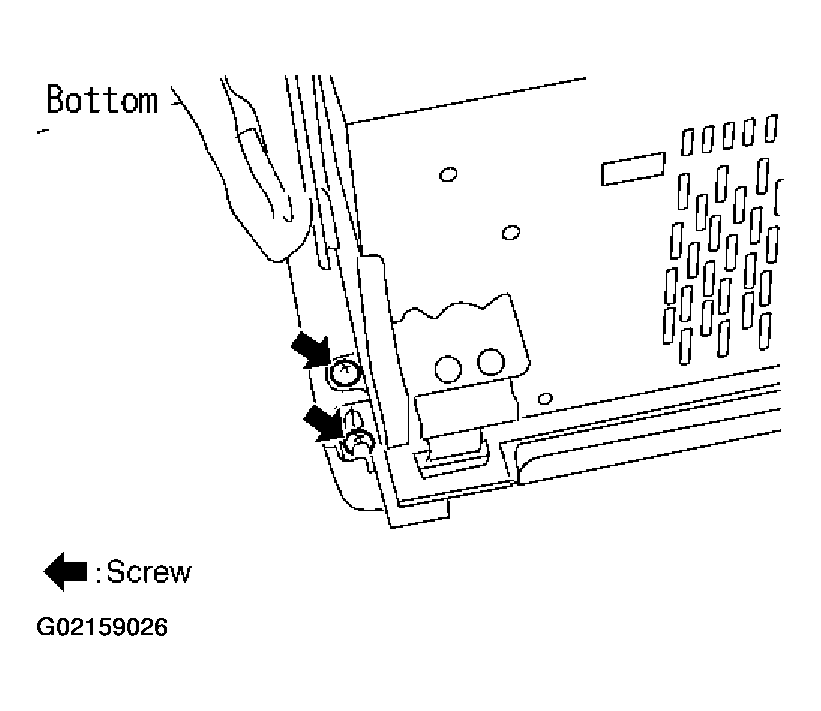

    Fig 3: Removing Screws (Bottom: 4)
    G02159026Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Separate audio unit from display unit assembly (with navigation system).

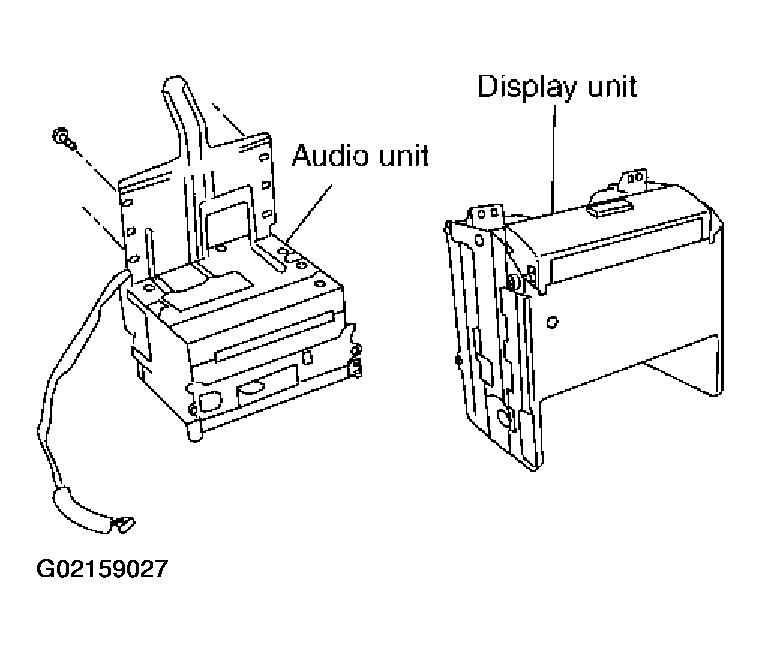

    Fig 4: Identifying Audio Unit And Display Unit
    G02159027Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove 8 screws, and then bracket.
    CAUTION:
    • When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
    • Be careful not to allow foreign material to enter from cassette tape slot.
    • Removal and Installation of A/C and Audio Controller.

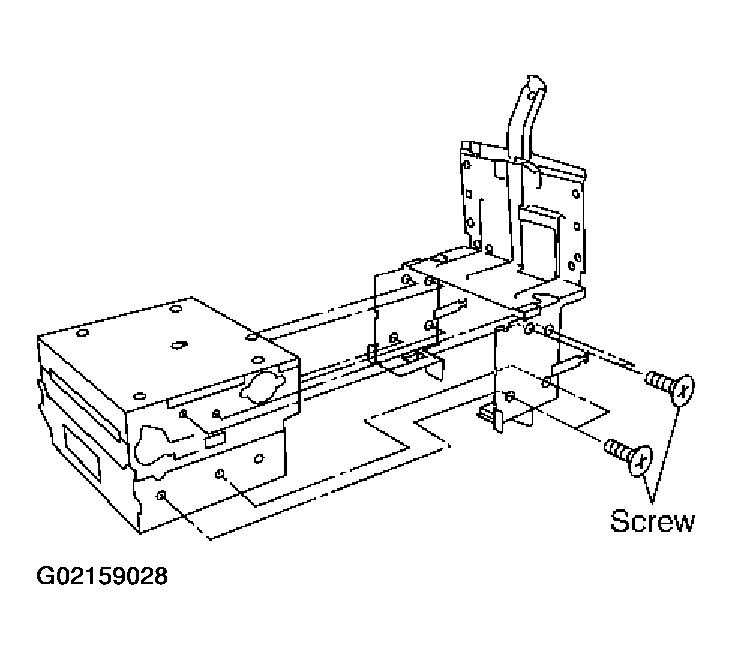

    Fig 5: Removing 8 Screws, And Then Bracket
    G02159028Courtesy of NISSAN MOTOR CO., U.S.A.
