Console Boot (M/T)

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert thin remover from behind console boot M/T, and remove metal clip on back. Then pull up and back to disengage from front metal clip.
  2. Disconnect harness connector, and remove console boot M/T.

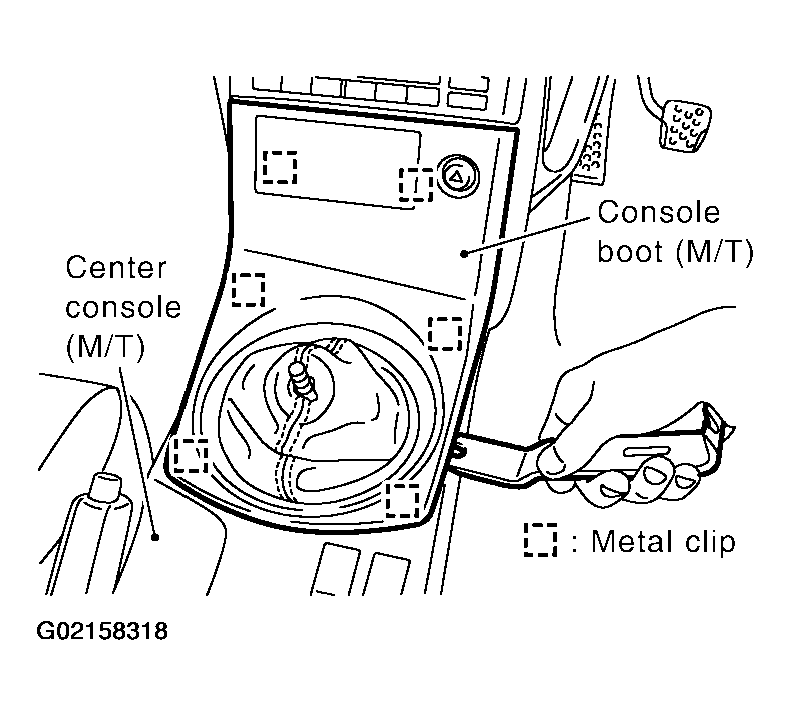

    Fig 1: Removing Console Boot (M/T)
    G02158318Courtesy of NISSAN MOTOR CO., U.S.A.
