Section 524 (Engine Control System - Sedan)
>>
Basic Service Procedure
>>
Idle Mixture Ratio Adjustment
>>
Overall Sequence
Overall Sequence
WARNING:
This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

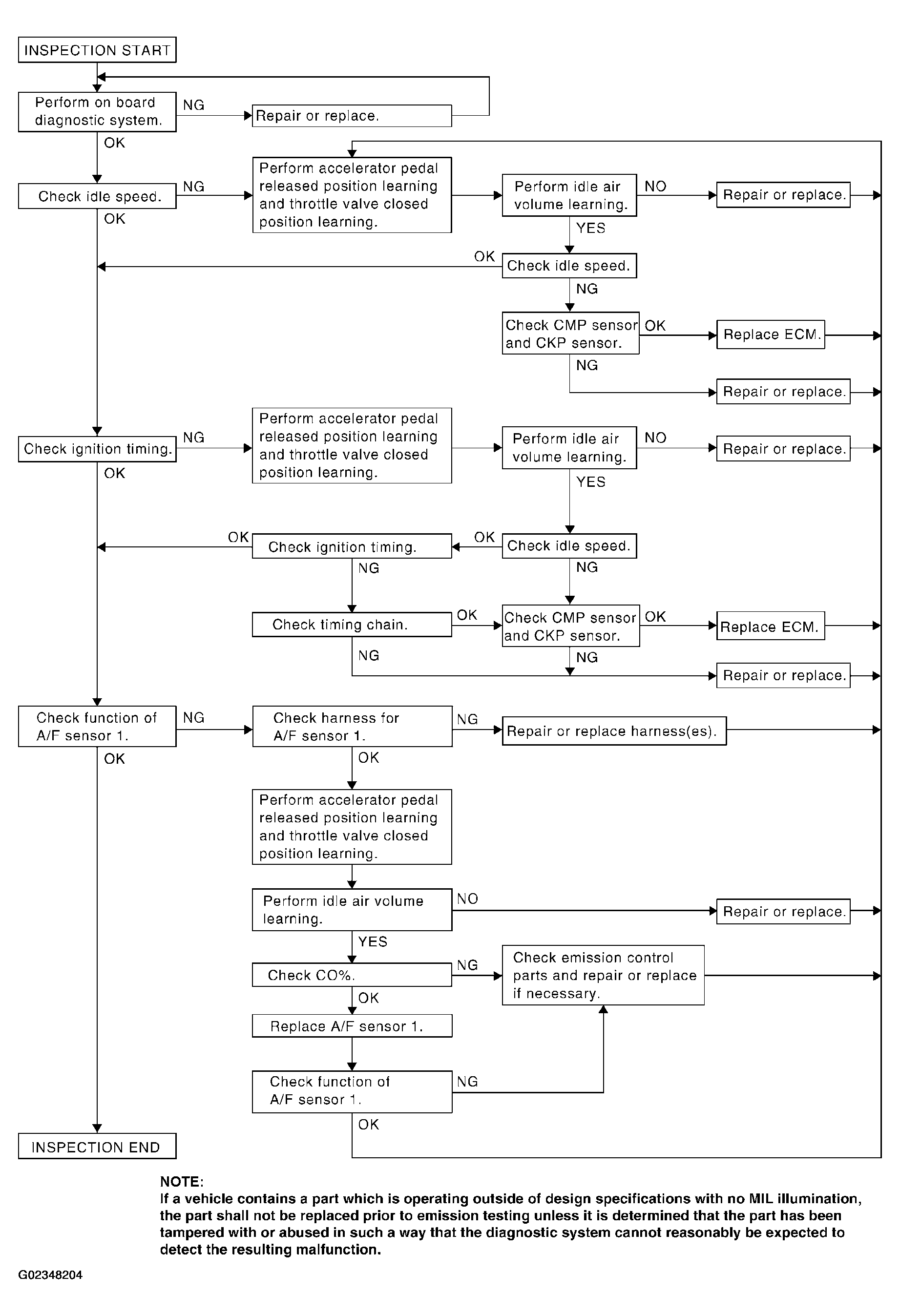

Fig 1: Idle Mixture Ratio Adjustment Overall Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
