Removal And Installation Of IPDM E/R: Removal

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery. Refer to REMOVAL AND INSTALLATION .

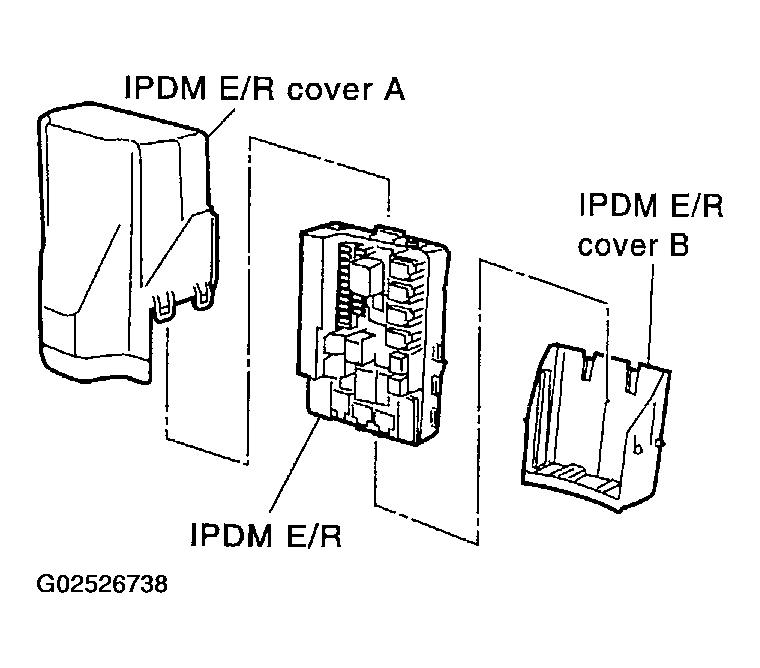

    Fig 1: Separating IPDM E/R Covers
    G02526738Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove IPDM E/R cover A. While pushing pawl on backside of IPDM E/R cover B toward vehicle front to unlock, lift up IPDM E/R.

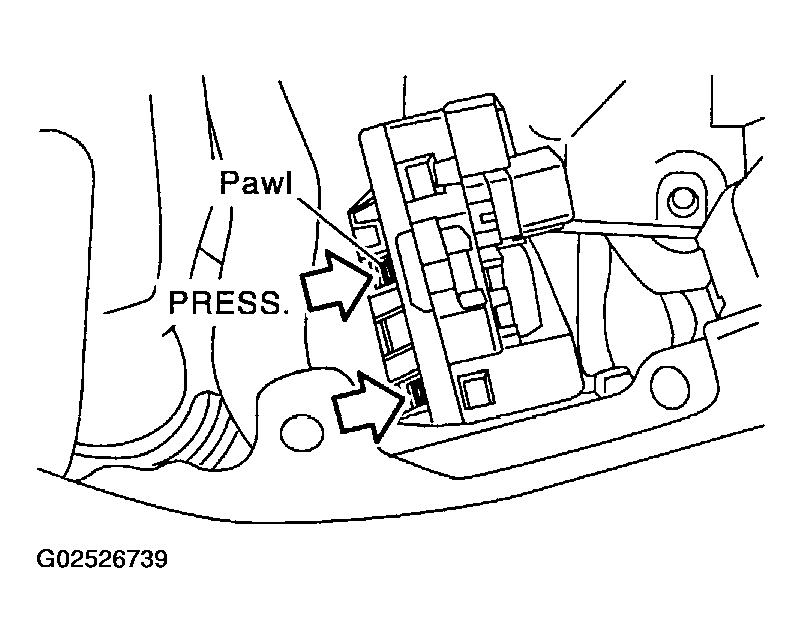

    Fig 2: Unlock Pushing Pawl On Backside Of IPDM E/R Cover B Toward Vehicle Front
    G02526739Courtesy of NISSAN MOTOR CO., U.S.A.
  3. While pushing tabs on right and left side of IPDM E/R, remove IPDM E/R cover B from IPDM E/R.
  4. Remove harness connector from IPDM E/R.

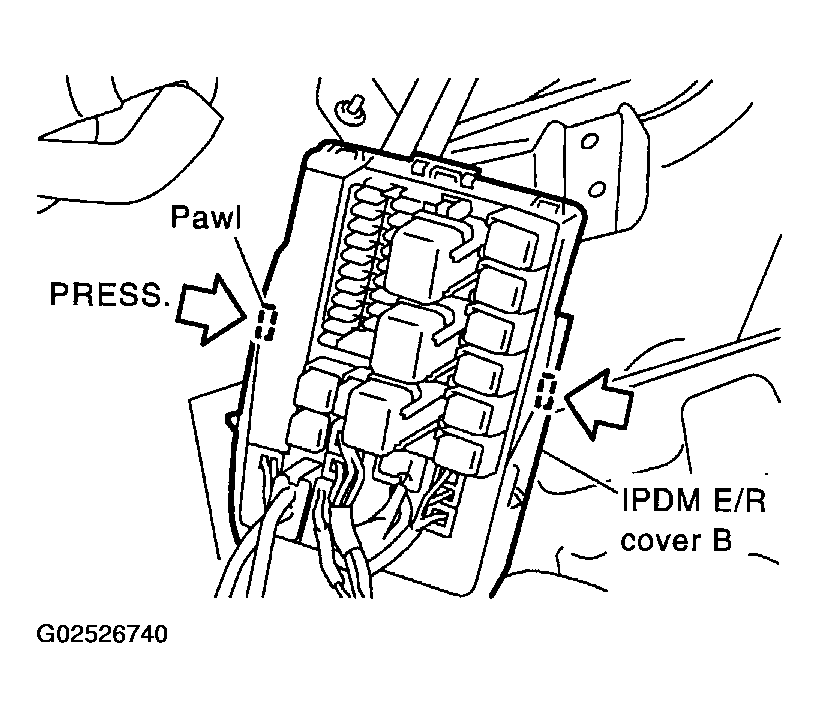

    Fig 3: Removing IPDM E/R Cover B From IPDM E/R
    G02526740Courtesy of NISSAN MOTOR CO., U.S.A.
