How To Read Harness Layout
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
- Main Harness
- Engine Room Harness (Engine Compartment)
- Engine Control Harness
- Body Harness (Passenger Compartment)

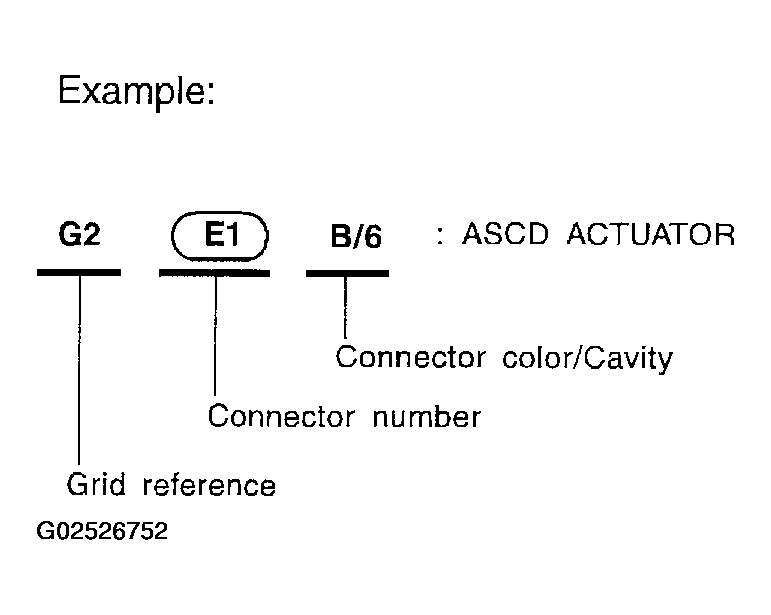

To use the grid reference
- Find the desired connector number on the connector list.
- Find the grid reference.
- On the drawing, find the crossing of the grid reference letter column and number row.
- Find the connector number in the crossing zone.
- Follow the line (if used) to the connector.
