Connector Symbol

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

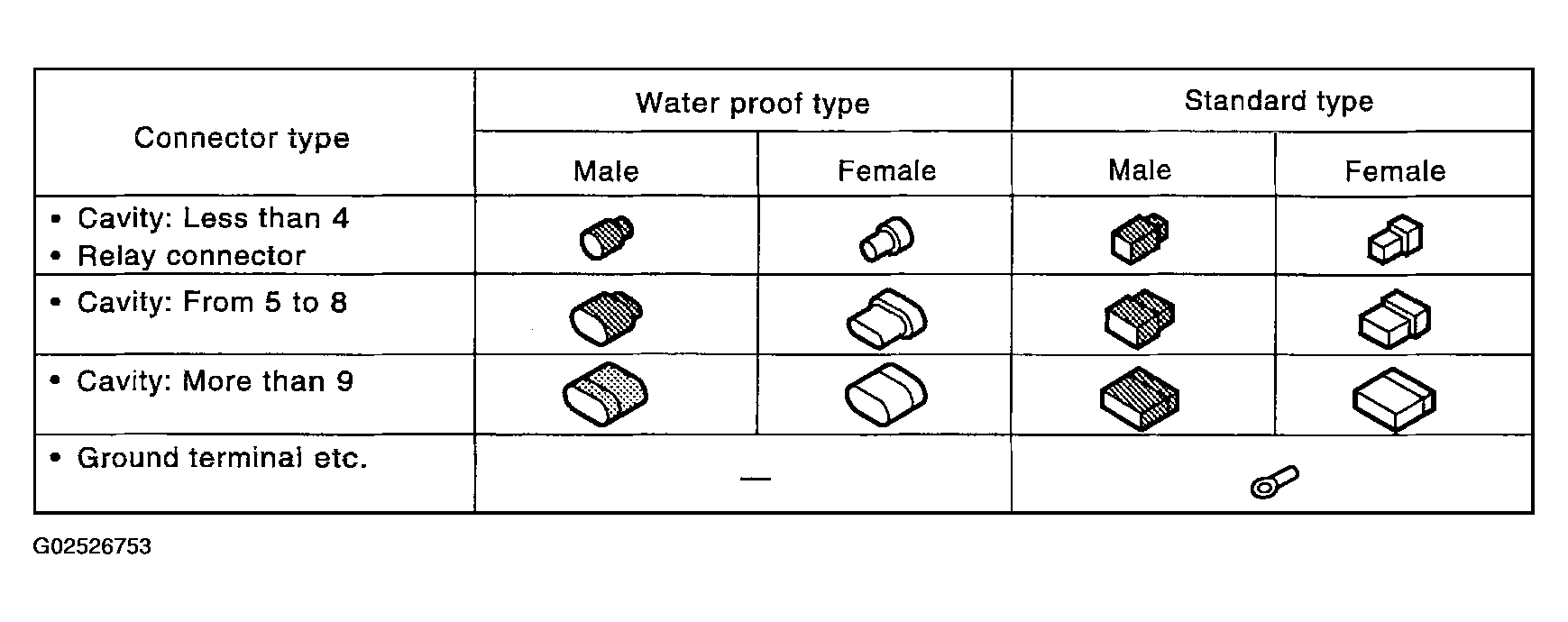

Main symbols of connector (in Harness Layout) are indicated in Fig 1 .

Fig 1: Connector Symbol Chart
G02526753Courtesy of NISSAN MOTOR CO., U.S.A.
