Engine Room Harness

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

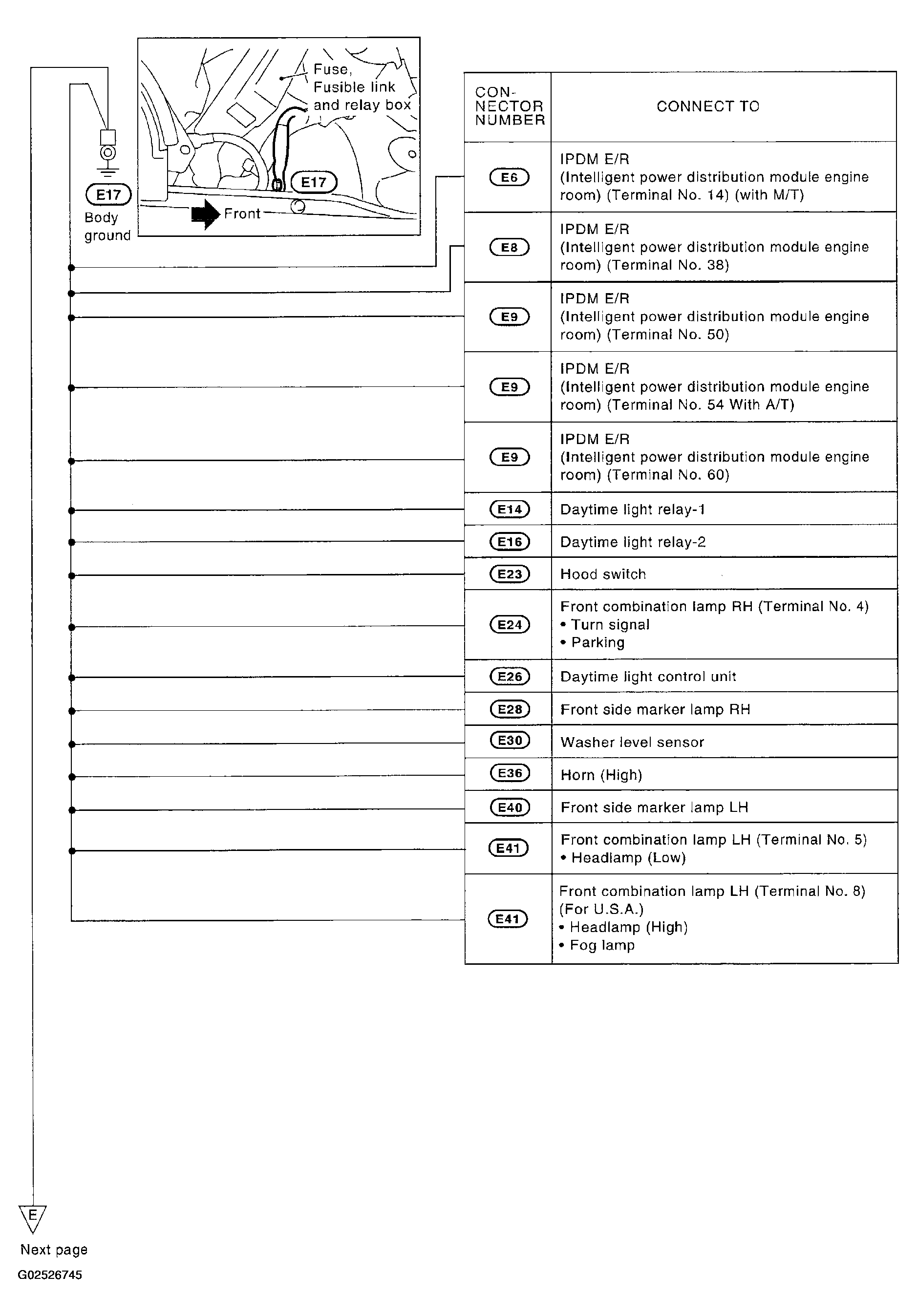

Fig 1: Engine Room Harness (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

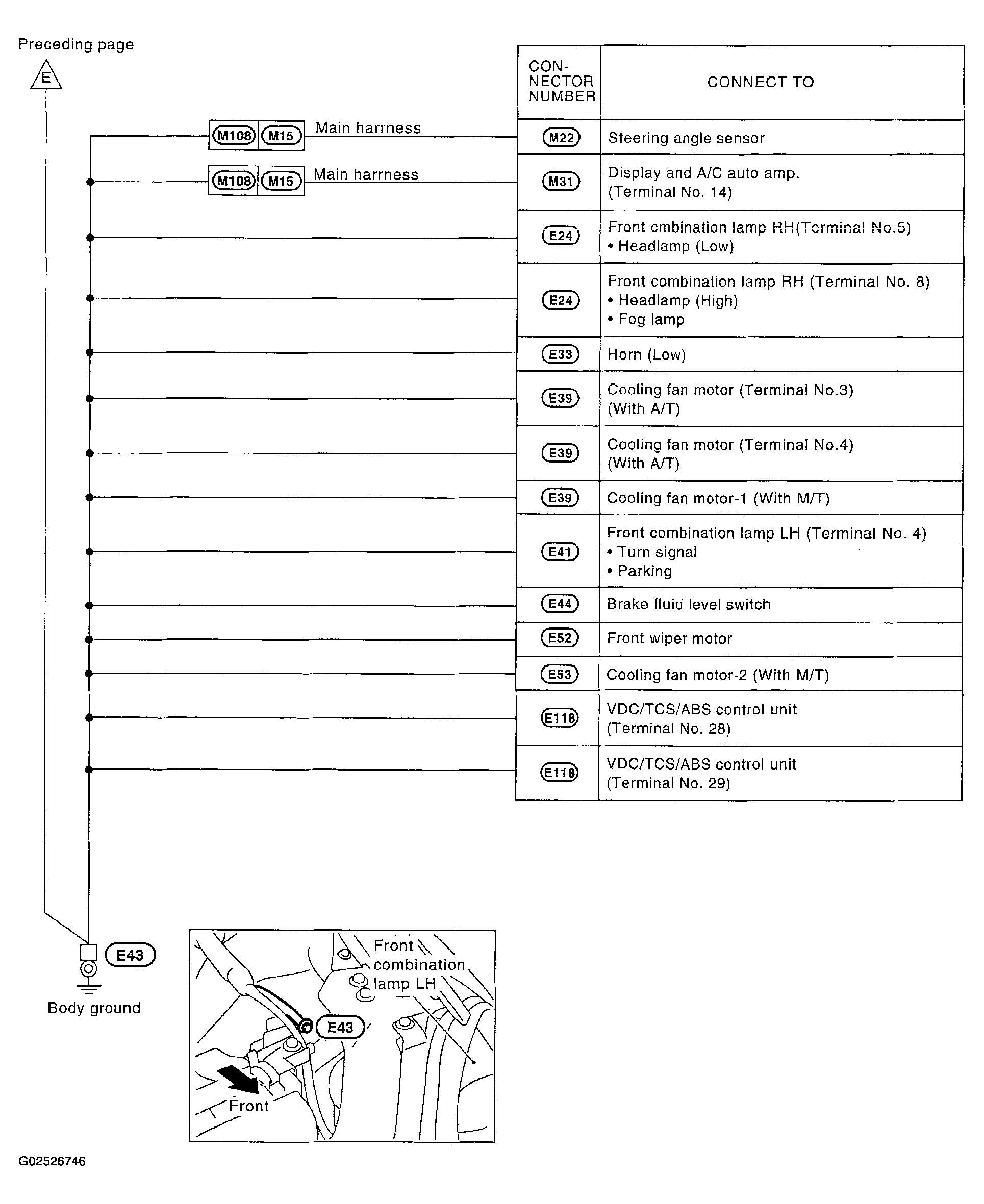

Fig 2: Engine Room Harness (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

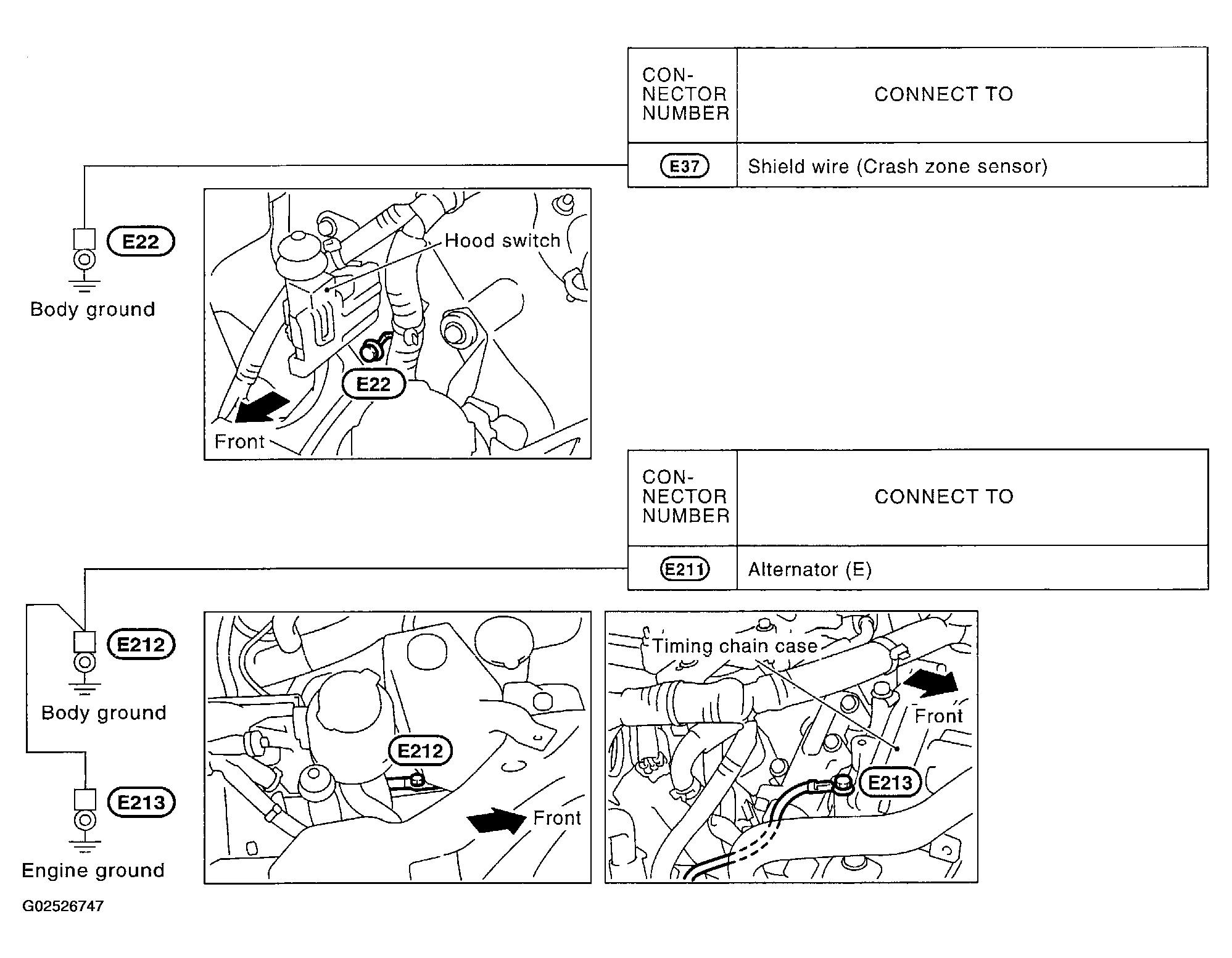

Fig 3: Engine Room Harness (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
