Body Harness

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

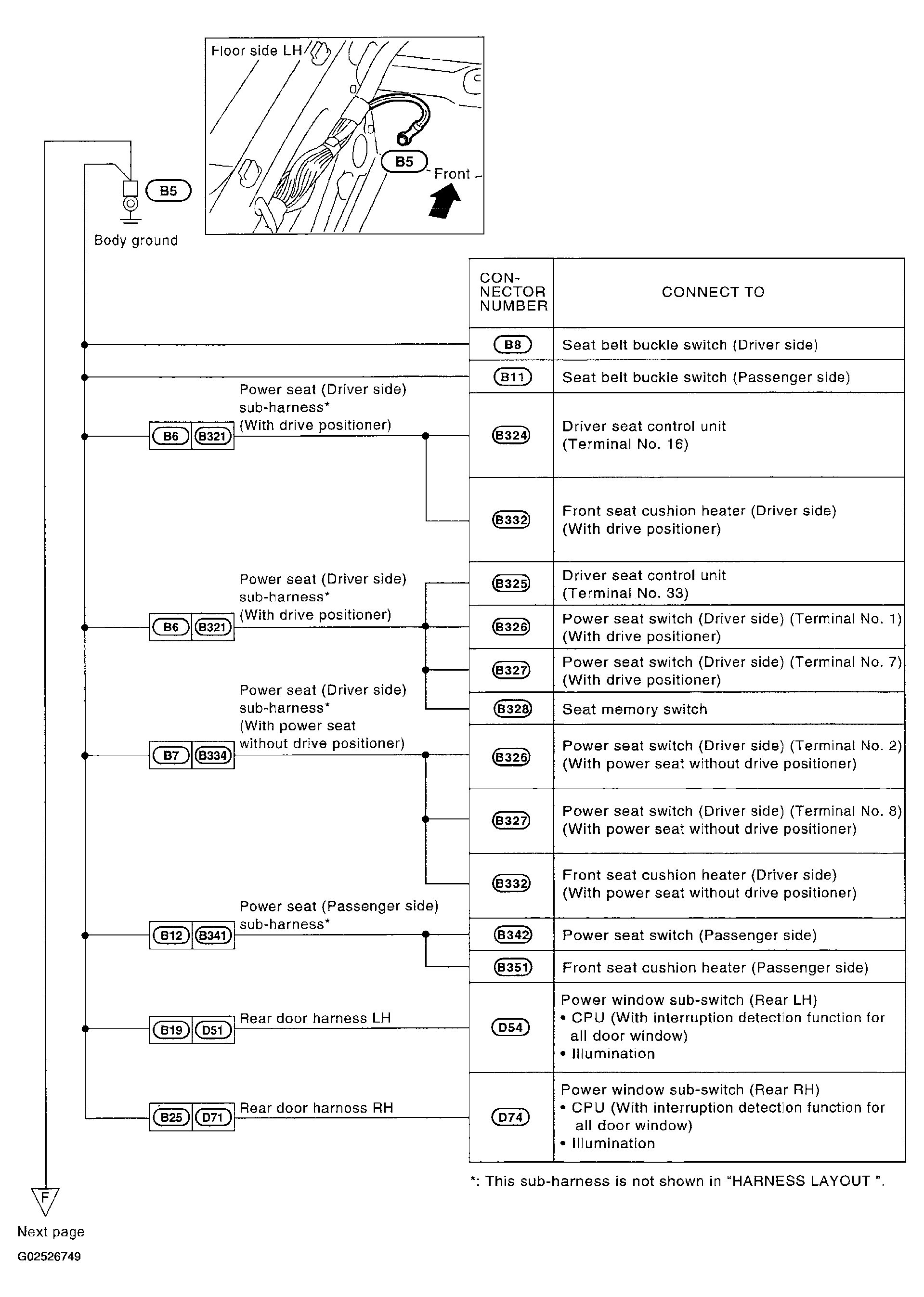

Fig 1: Body Harness (1 Of 3)
G02526749Courtesy of NISSAN MOTOR CO., U.S.A.

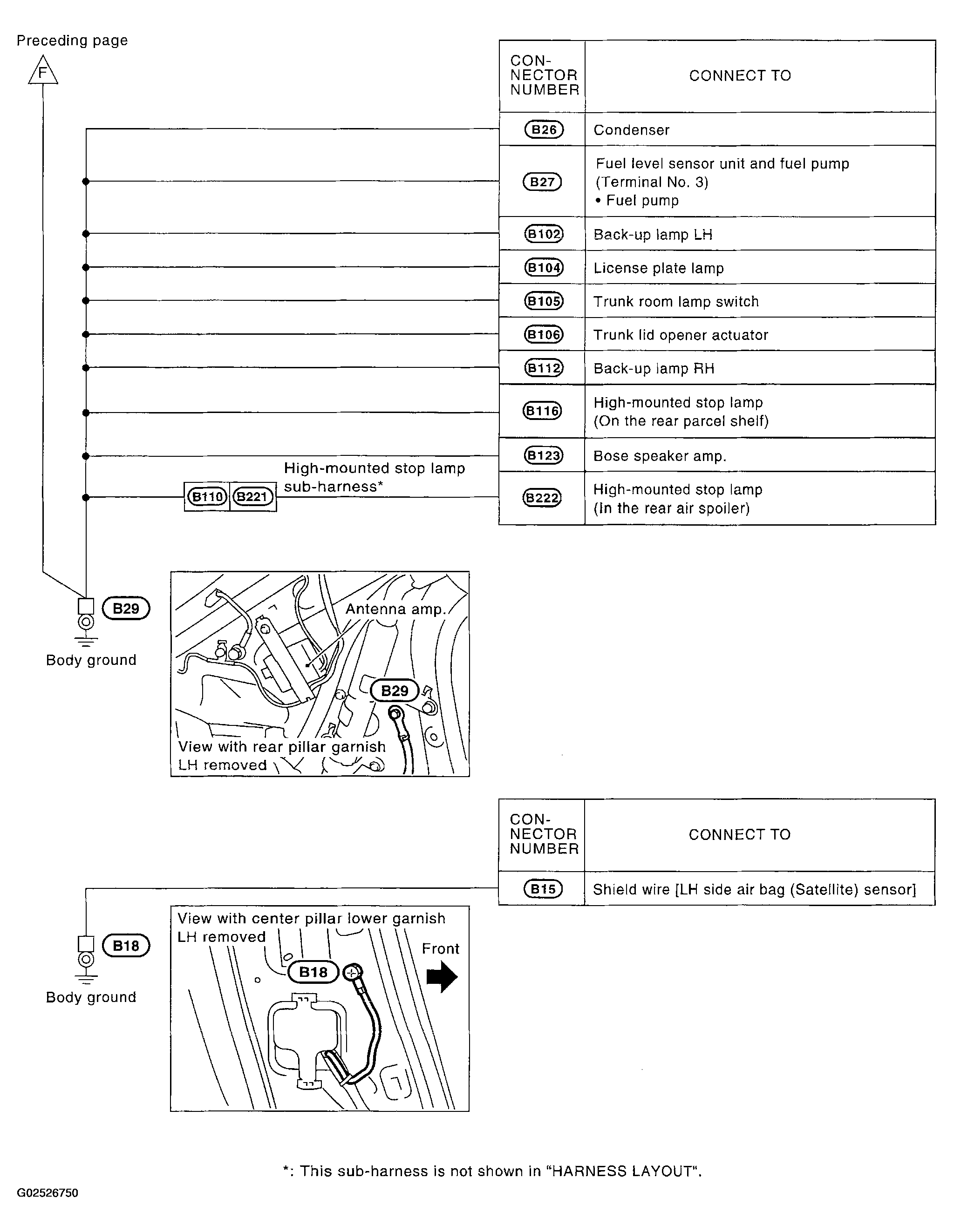

Fig 2: Body Harness (2 Of 3)
G02526750Courtesy of NISSAN MOTOR CO., U.S.A.

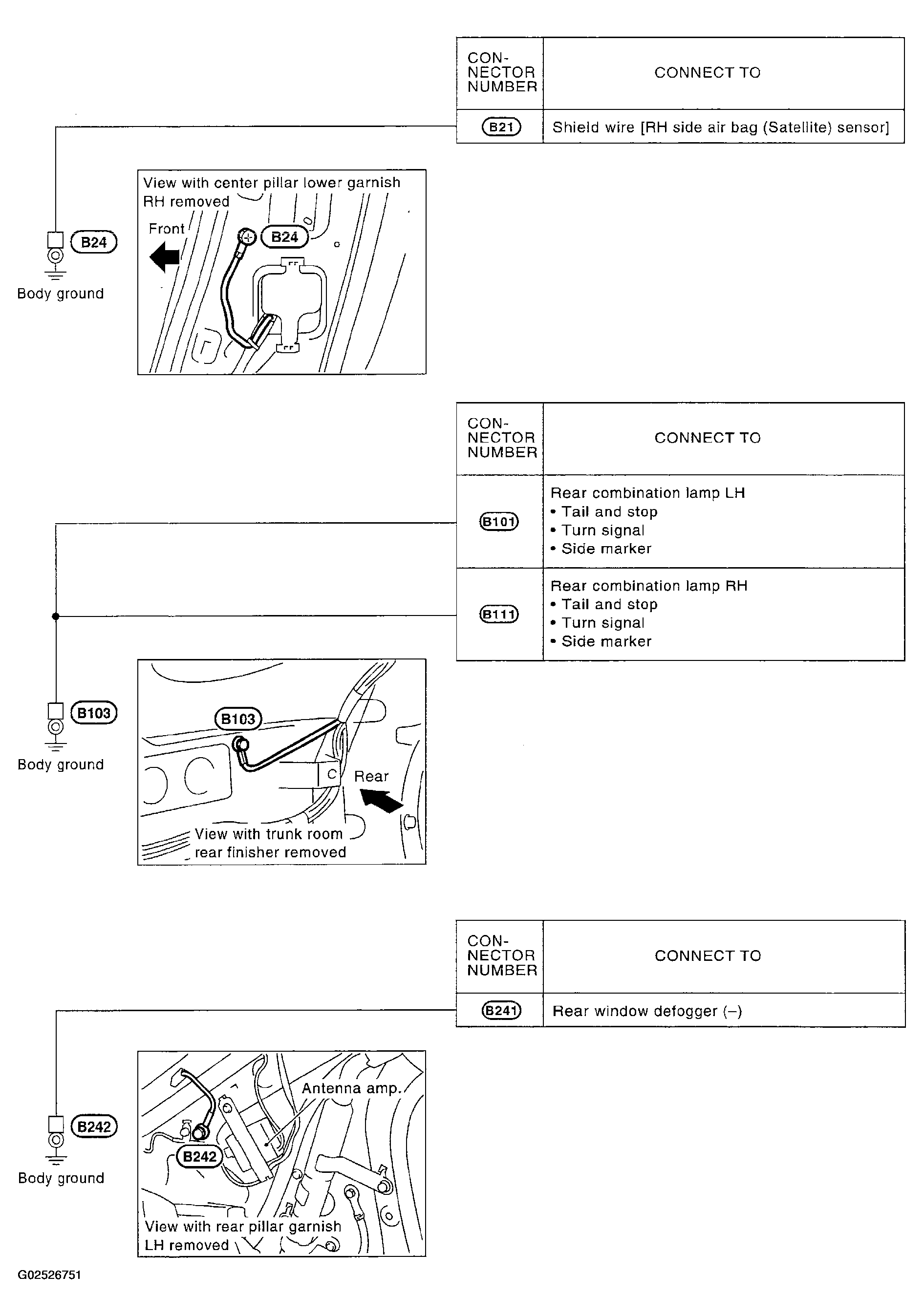

Fig 3: Body Harness (3 Of 3)
G02526751Courtesy of NISSAN MOTOR CO., U.S.A.
