Outer Socket and Inner Socket

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Measuring Swing Torque
- Hook a spring balance at the point shown in Fig 1 . Confirm if the reading is within specification, when ball stud and inner socket start moving. If reading is outside specification, replace socket.

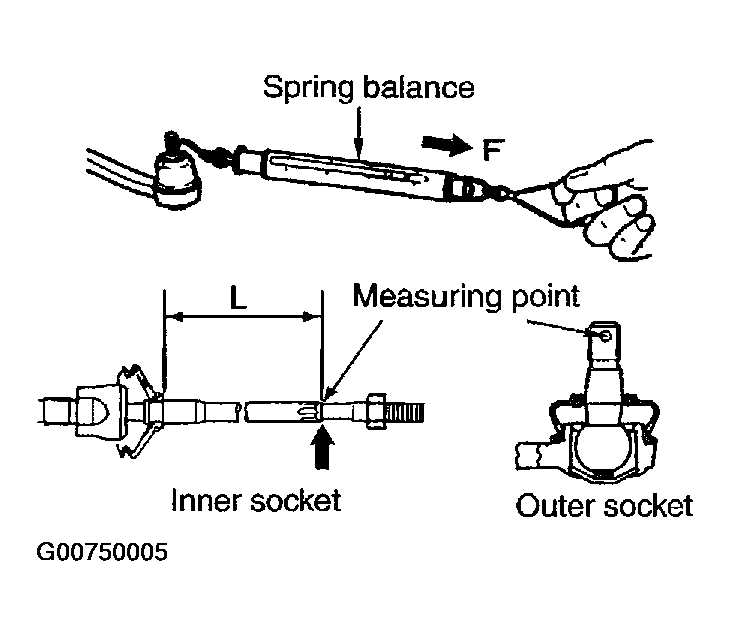

  Fig 1: Confirming If Spring Balance Reading Is Within Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.
Specified value

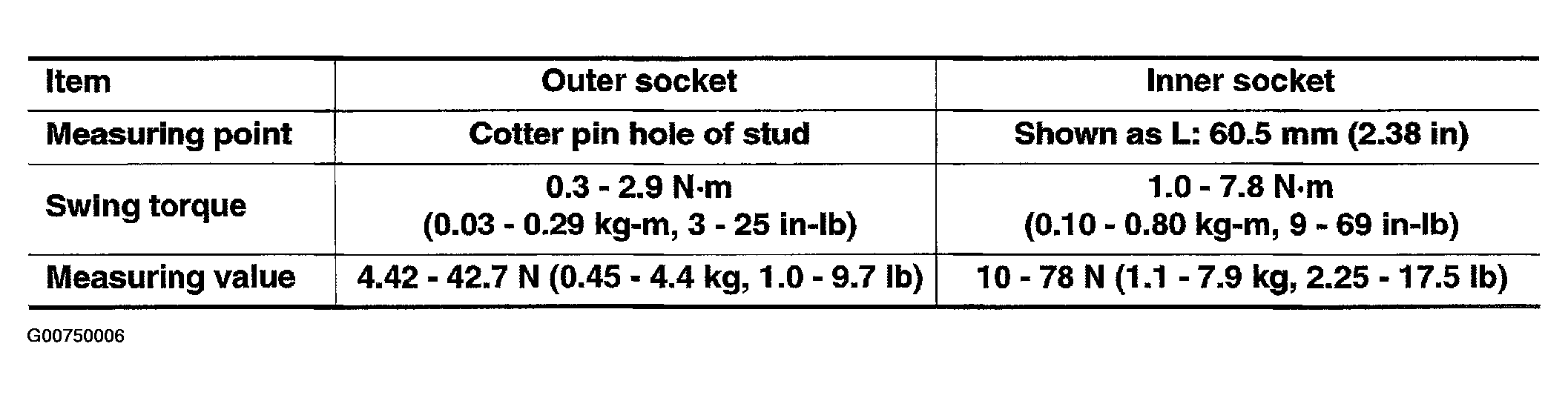

Fig 2: Determining Specified Value Of Outer & Inner Sockets
Courtesy of NISSAN MOTOR CO., U.S.A.
Measuring Rotating Torque (outer socket only)
- Using a preload gauge (special service tool), check if reading is within the range specified below. If value is outside standard, replace outer sockets.
Specified value

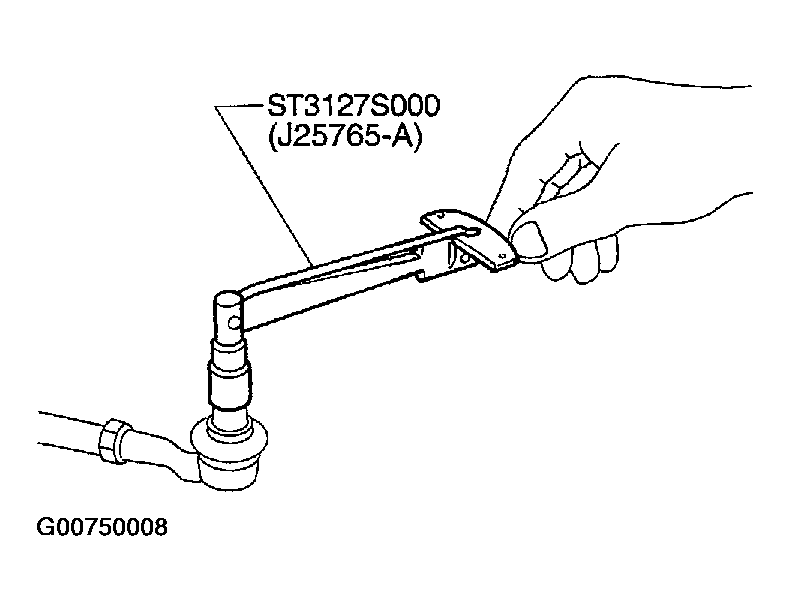

Fig 3: Using Preload Gauge (Special Service Tool)
Courtesy of NISSAN MOTOR CO., U.S.A.

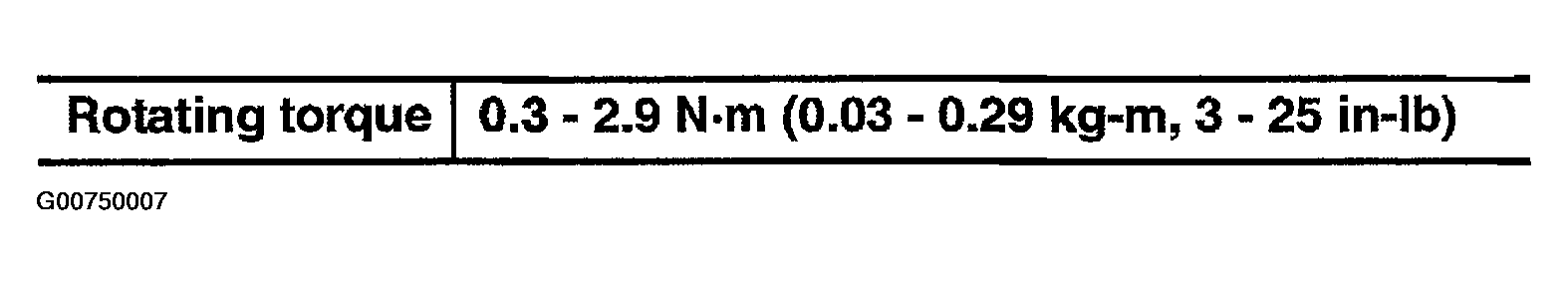

Fig 4: Determining Specified Value Of Outer Socket Only
Courtesy of NISSAN MOTOR CO., U.S.A.
Measuring Axial End Play
- Apply load of 490 N (50 kg, 110 lb) to ball stud axially. Use a dial gauge to measure amount of the movement that the stud makes. Check if reading is within range specified below. If not, replace outer and inner sockets.

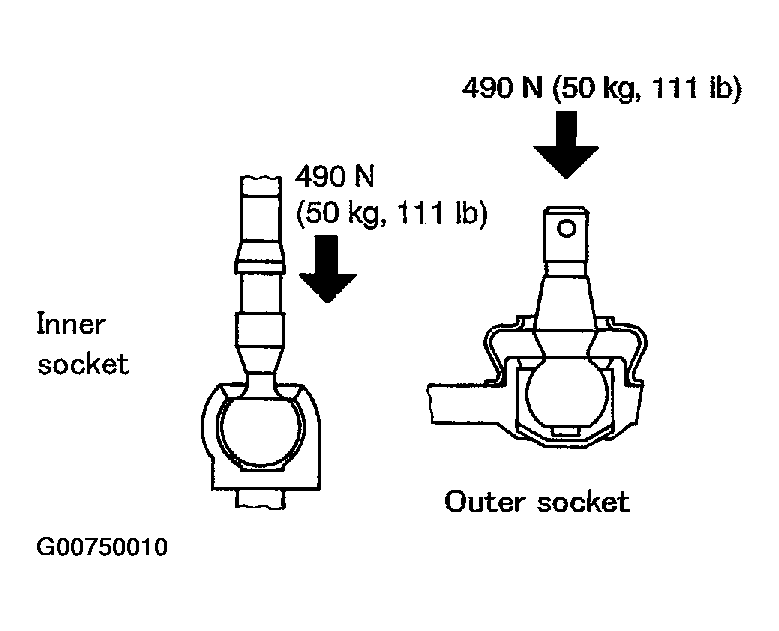

Fig 5: Applying Load Of 490 N (50 kg, 110 lb) To Ball Stud Axially
Courtesy of NISSAN MOTOR CO., U.S.A.

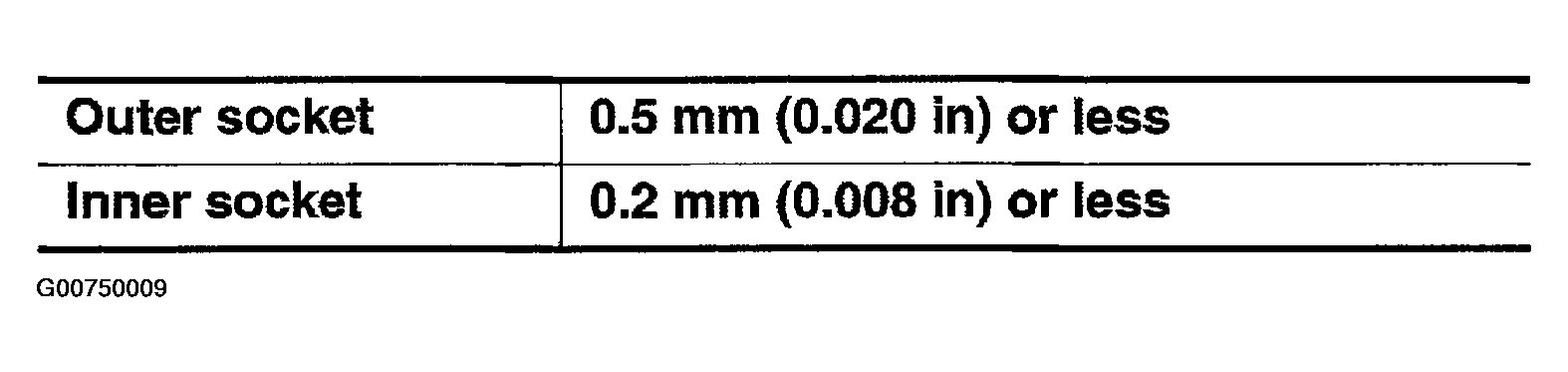

Fig 6: Determining Correct Range For Outer & Inner Sockets
Courtesy of NISSAN MOTOR CO., U.S.A.
