Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply 3.2mm (0.126 in) bead of sealant to the rear cover.
    • Use Genuine Silicone RTV sealant or equivalent.

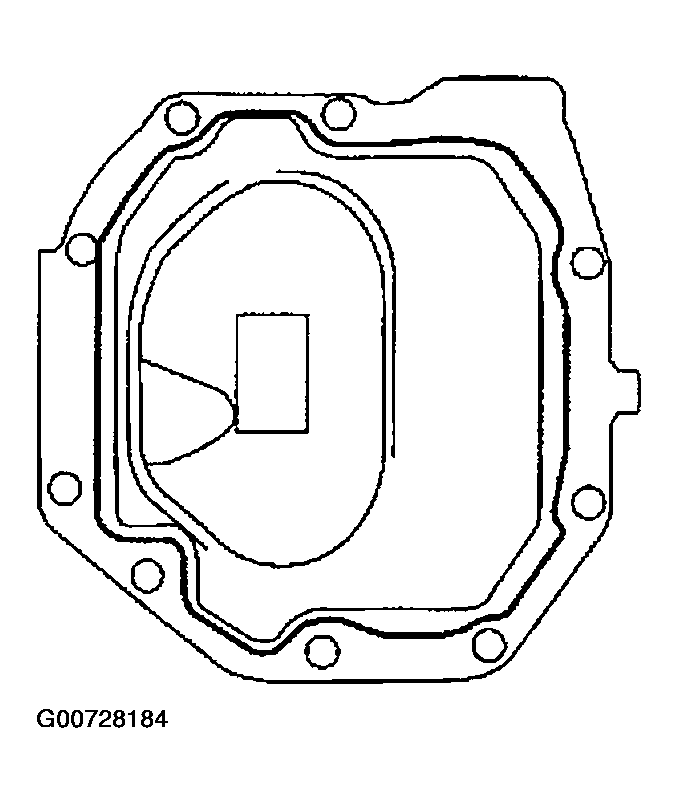

    Fig 1: Applying Bead Of Sealant
    G00728184Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install rear cover and tighten rear cover bolts in the order shown. Refer to COMPONENTS .
  3. Fill final drive with recommended gear oil.
  4. Install front final drive. Refer to FRONT FINAL DRIVE ASSEMBLY .

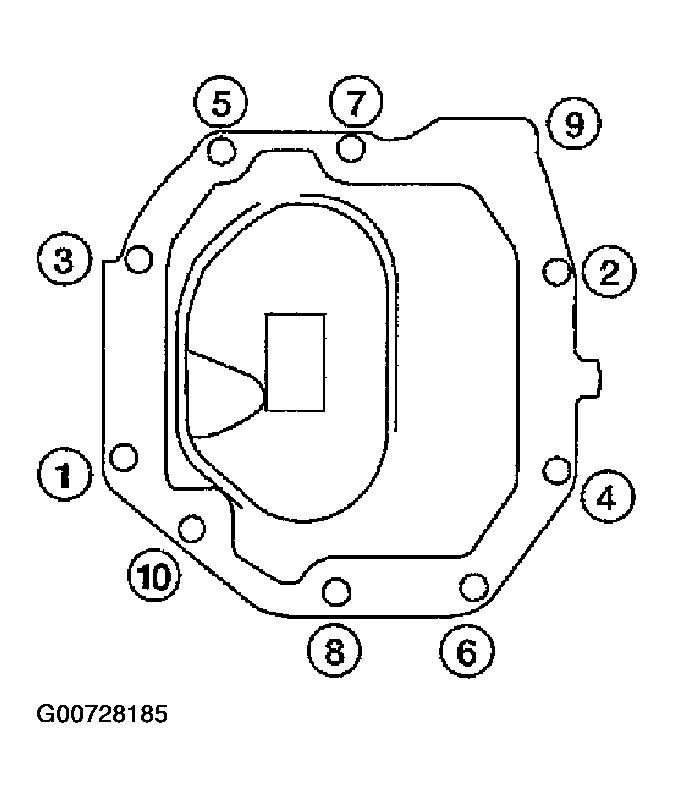

Fig 2: Tightening Rear Cover Bolts In The Order
G00728185Courtesy of NISSAN MOTOR CO., U.S.A.
