Removal And Installation For Refrigerant Pressure Sensor: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the refrigerant pressure sensor electrical connector.
Remove the refrigerant pressure sensor from the condenser.

CAUTION: Be careful not to damage the condenser fins.

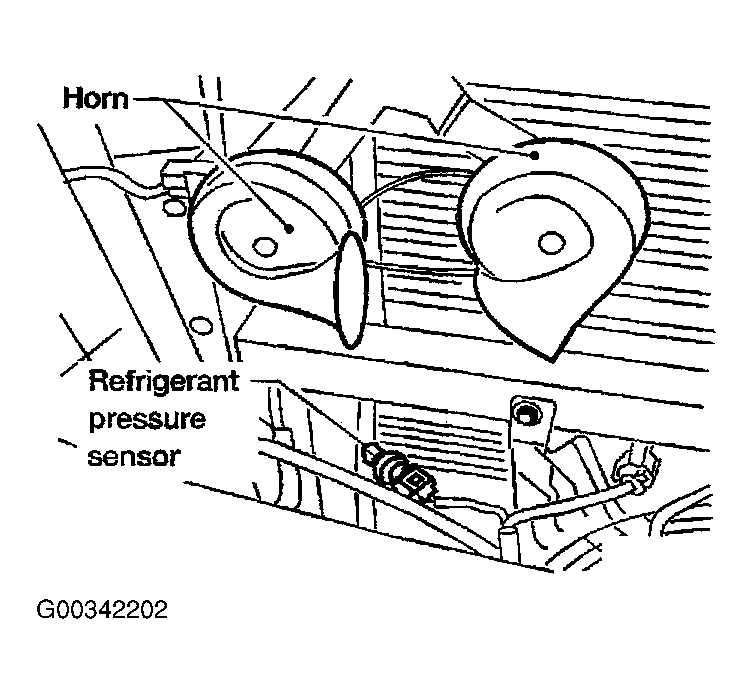

Fig 1: Locating Refrigerant Pressure Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
