Removal And Installation For Condenser: Removal
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Discharge the refrigerant. Refer to HFC-134A (R-134A) SERVICE PROCEDURE .
- Remove the radiator. Refer to RADIATORCAUTION: Be careful not to damage the core surface of the condenser and the radiator.
- Disconnect the high-pressure flexible hose and the high-pressure pipe from the condenser.CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

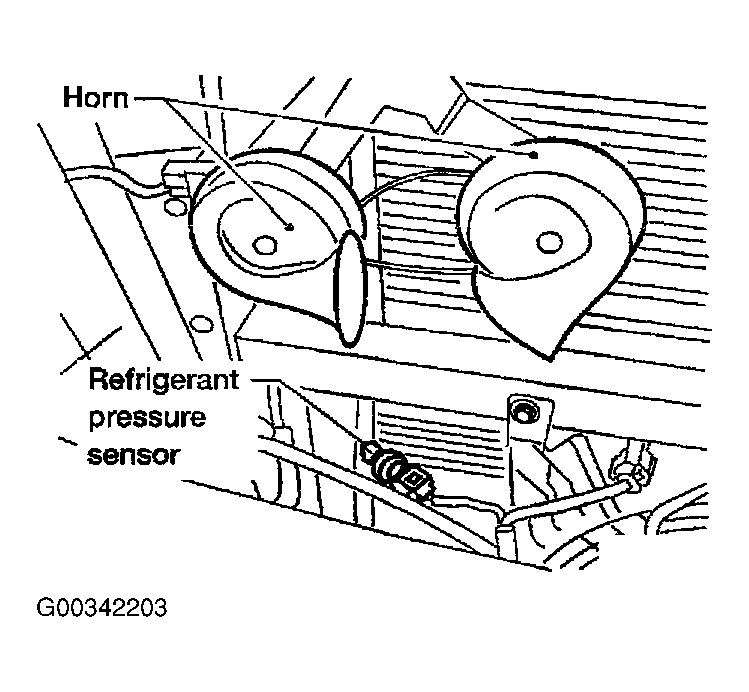

- Disconnect the refrigerant pressure sensor connector.
- Remove the refrigerant pressure sensor from the condenser as necessary.
- Lift the condenser out of the mounting grommets to remove the condenser.
