Removal And Installation
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

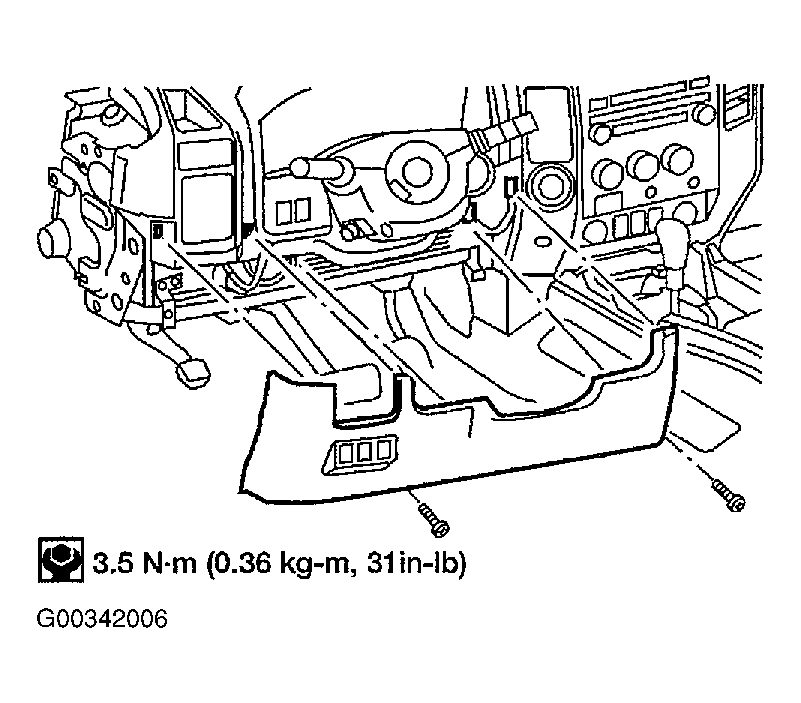

Remove screws using power tool, and remove lower driver instrument panel.
- Pull to disconnect clips.
- Disconnect harnesses from back of lower driver instrument panel.
Installation is in the reverse order of removal.
Courtesy of NISSAN MOTOR CO., U.S.A.
