Removal And Installation

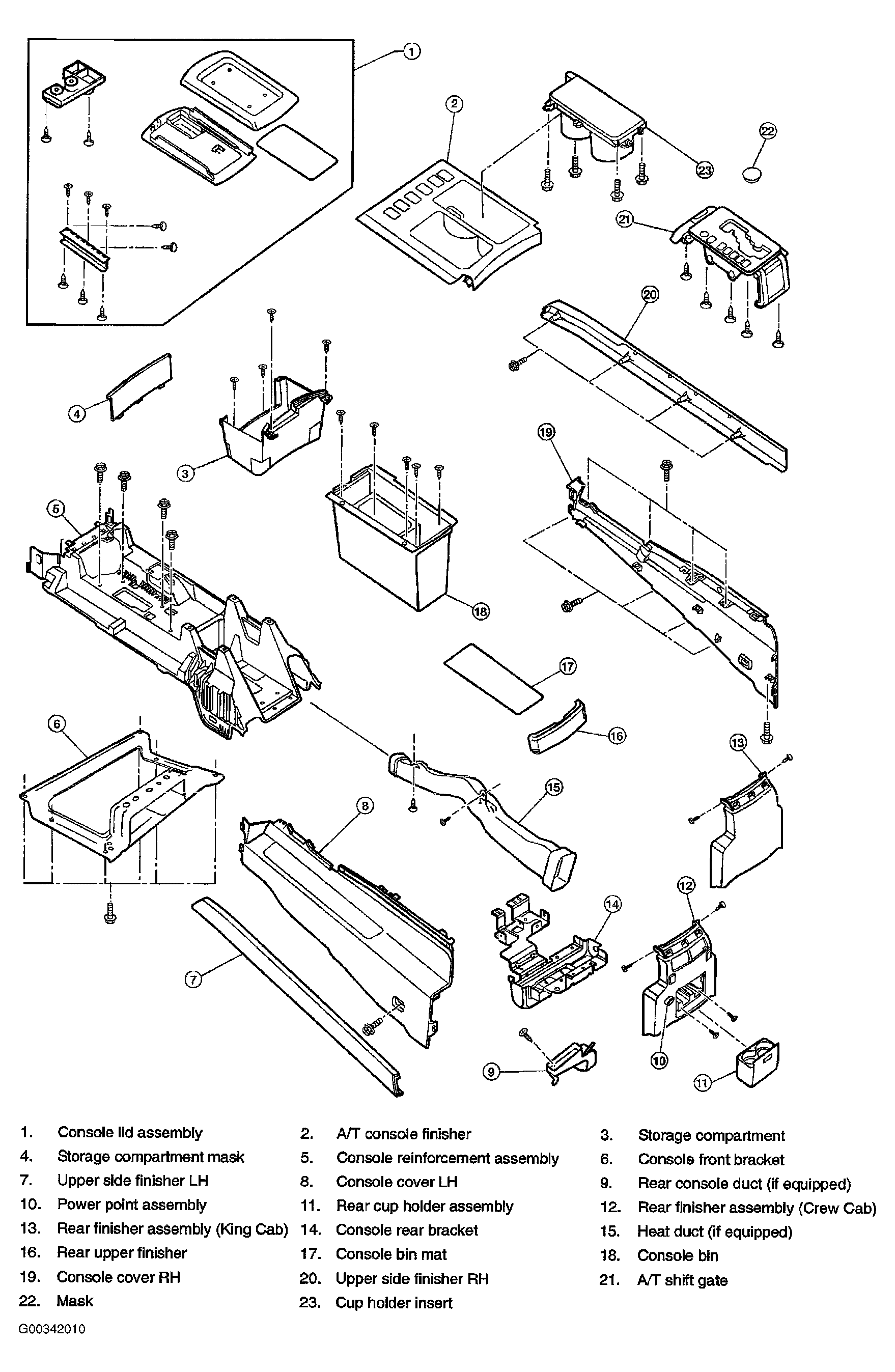

Fig 1: Exploded View Of Center Console

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove RH instrument lower cover. Refer to INSTRUMENT PANEL ASSEMBLY .
2. Remove glove box assembly. Refer to INSTRUMENT PASSENGER LOWER PANEL AND GLOVE BOX .
3. Remove LH instrument lower cover. Refer to LOWER DRIVER INSTRUMENT PANEL .
4. Remove shift knob and A/T console finisher. Refer to A/T CONSOLE FINISHER .
   • Remove cup holder insert.
   • Remove A/T shift gate.
5. Remove cluster lid D. Refer to CLUSTER LID D .
6. Disconnect shift cable and electrical harness from shift control.
7. Remove shift control. Refer to SHIFT CONTROL SYSTEM .
8. Remove screws from center console.
   • Disconnect electrical harnesses.
9. Move front seats forward and remove center console assembly in a rearward direction.
10. Remove mat from console bin.
11. Remove latch from console lid.
12. Remove hinge from console lid. Remove console lid.
    • Remove console lid mat.
13. Remove console bin.
    • Disconnect electrical harness from DVD player, if equipped.
    • Remove hinge from console bin.
14. Remove rear upper finisher.
15. Remove rear cup holder assembly, if equipped.
16. Remove upper side finishers LH/RH.
17. Remove screws on each side, disconnect clips and remove console covers LH/RH.
18. Remove rear finisher assembly.
    • Disconnect electrical connectors, if equipped.
19. Remove power point assembly, if equipped.
20. Remove mask and storage compartment.
21. Remove console front bracket.
22. Remove heat duct and console rear duct, if equipped.
23. Remove console rear bracket.

Assembly is in the reverse order of disassembly.
