Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

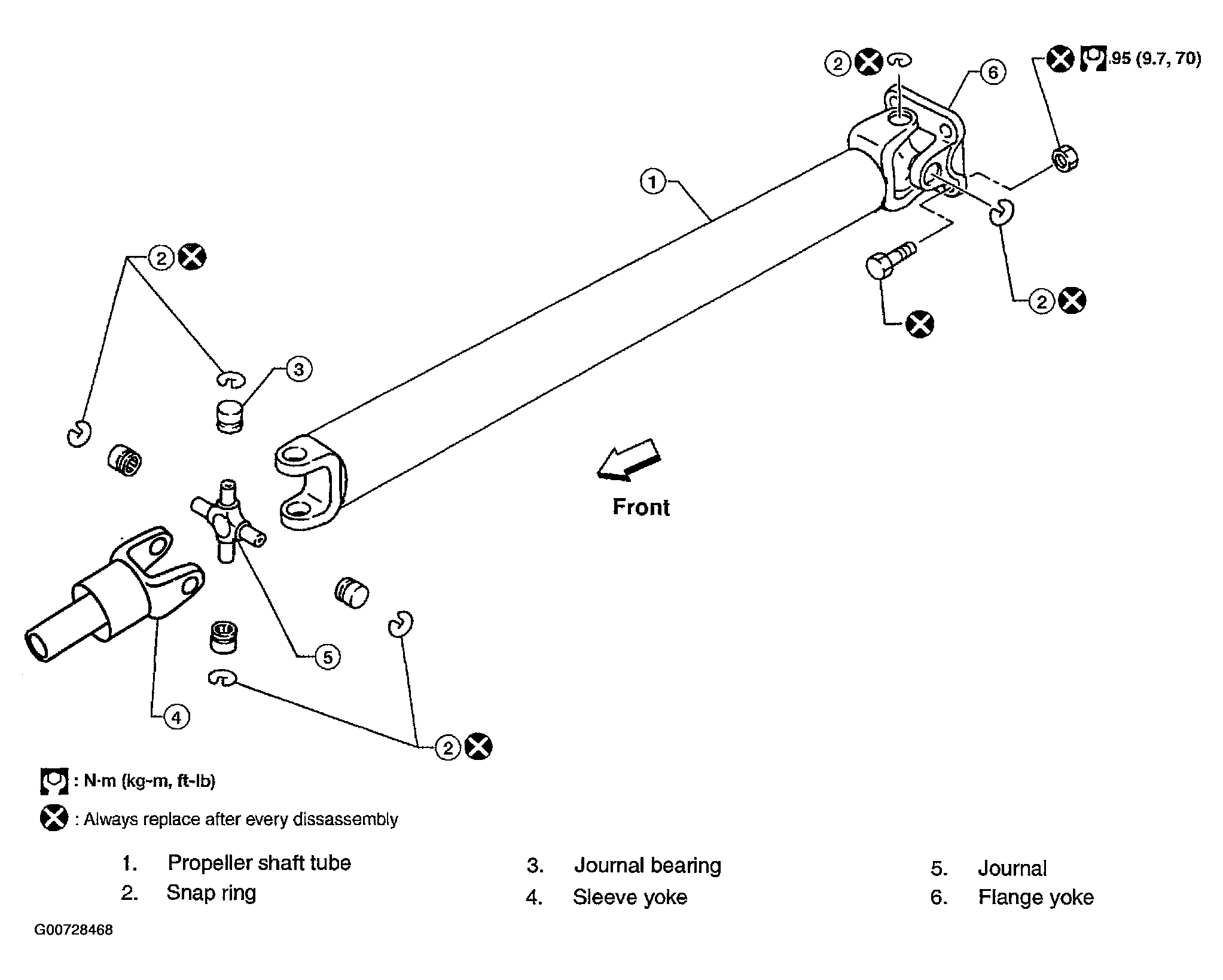

Fig 1: Exploded View Of Rear Propeller Shaft Components (Model 2S1350) With Torque Specifications
G00728468Courtesy of NISSAN MOTOR CO., U.S.A.

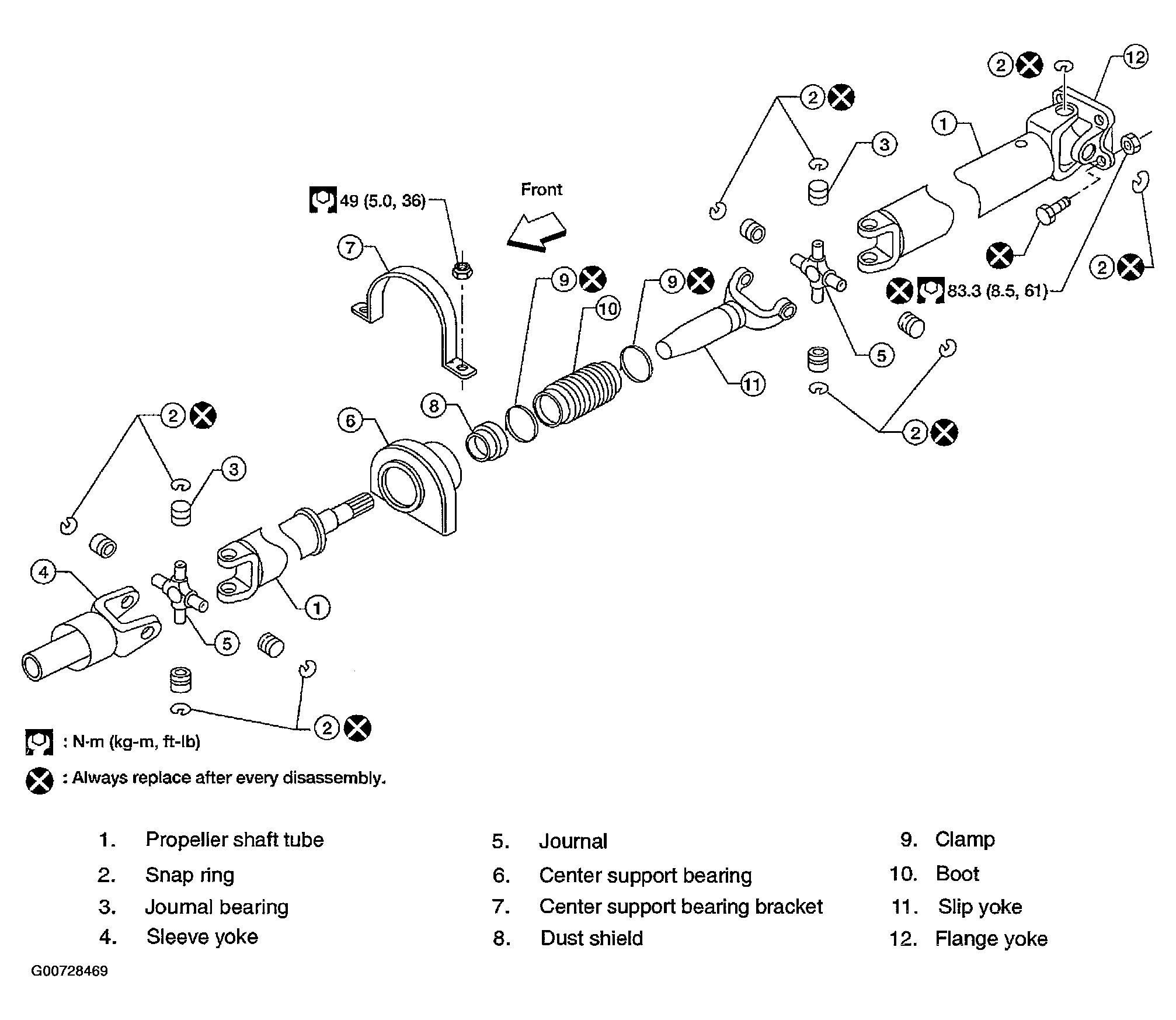

Fig 2: Exploded View Of Rear Propeller Shaft Components (Model 3S1350) With Torque Specifications
G00728469Courtesy of NISSAN MOTOR CO., U.S.A.
