Center Support Bearing Disassembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the propeller shaft assembly from the vehicle. Refer to REMOVAL AND INSTALLATION .
  2. Put matching marks on the propeller shaft tube and the slip yoke as shown.
    CAUTION: For matching marks, use paint. Never damage the propeller shaft tube or slip yoke.
  3. Remove and discard the clamp near the center support bearing, then slide the slip yoke off of propeller shaft tube.

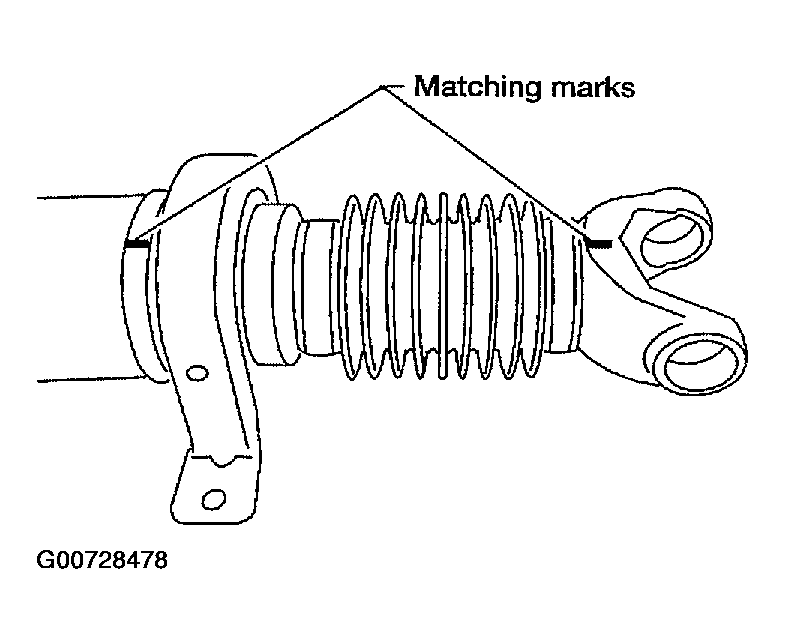

    Fig 1: Put Matching Marks On The Propeller Shaft Tube And The Slip Yoke
    G00728478Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Lift the dust shield off of the center support bearing.
  5. Press the center support bearing off the propeller shaft tube using Tool and suitable hydraulic press.

    Tool number : 205-D002

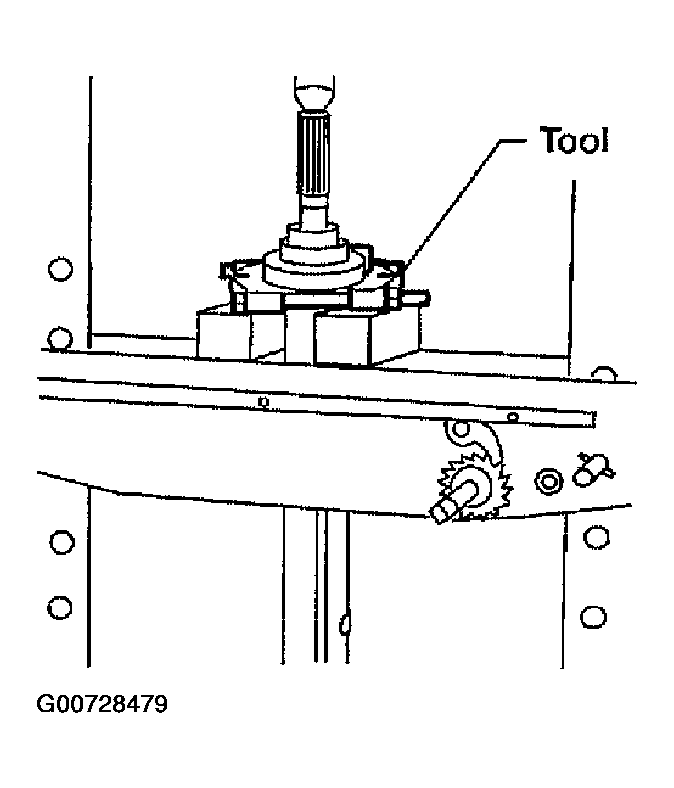

Fig 2: Pressing The Center Support Bearing Off The Propeller Shaft Tube
G00728479Courtesy of NISSAN MOTOR CO., U.S.A.
