Center Support Bearing Assembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a thin coat of multi-purpose grease to both the propeller shaft tube and the inside surface of the center support bearing.
  2. Install the center support bearing on the propeller shaft tube using a suitable pipe pressing on the inner race.

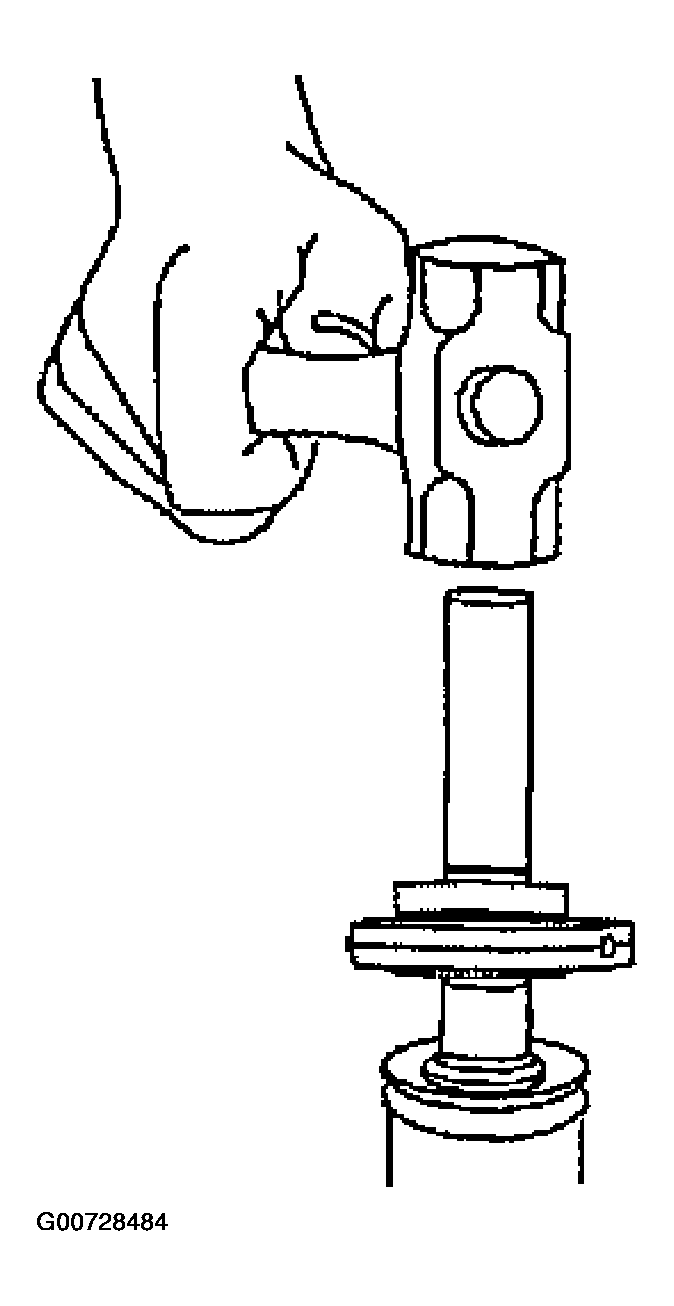

    Fig 1: Installing The Center Support Bearing
    G00728484Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the dust shield.
  4. Install a new clamp over the boot on the slip yoke.
  5. Align the matching marks and install the slip yoke on the propeller shaft tube.

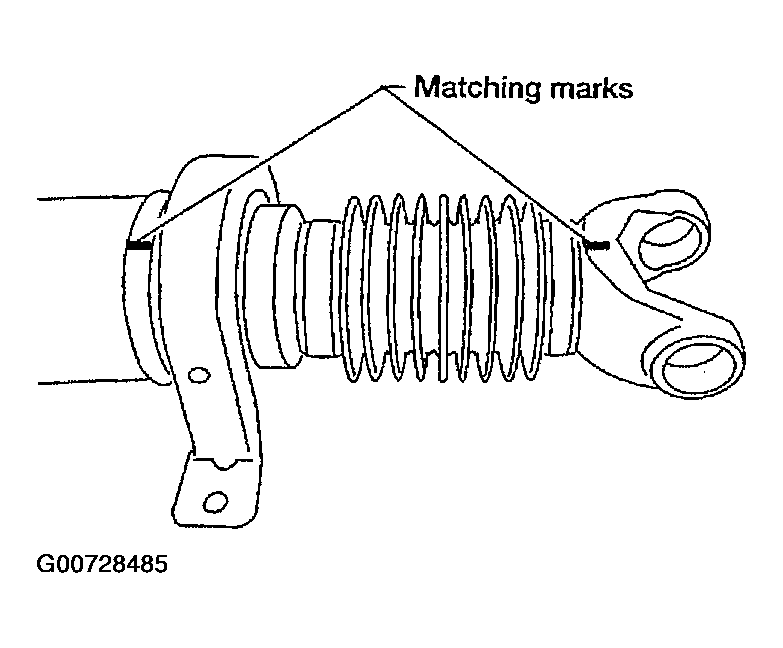

    Fig 2: Aligning The Matching Marks
    G00728485Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Clean the surfaces and position the boot over the propeller shaft tube and tighten the clamp.
  7. Install the center support bearing bracket, then install the rear propeller shaft assembly in the vehicle. Refer to REMOVAL AND INSTALLATION .

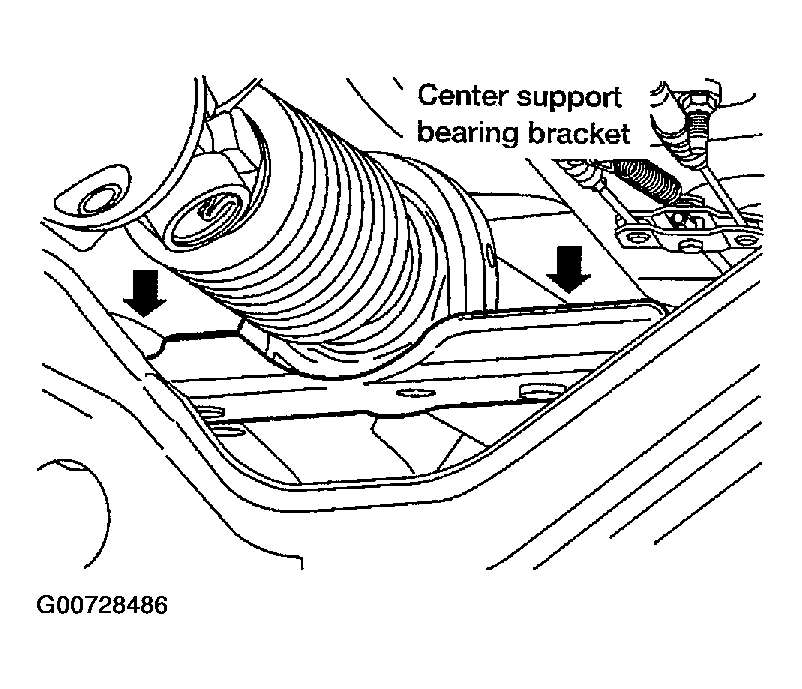

Fig 3: Installing The Center Support Bearing Bracket
G00728486Courtesy of NISSAN MOTOR CO., U.S.A.
