Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following illustration for hydraulic line removal.

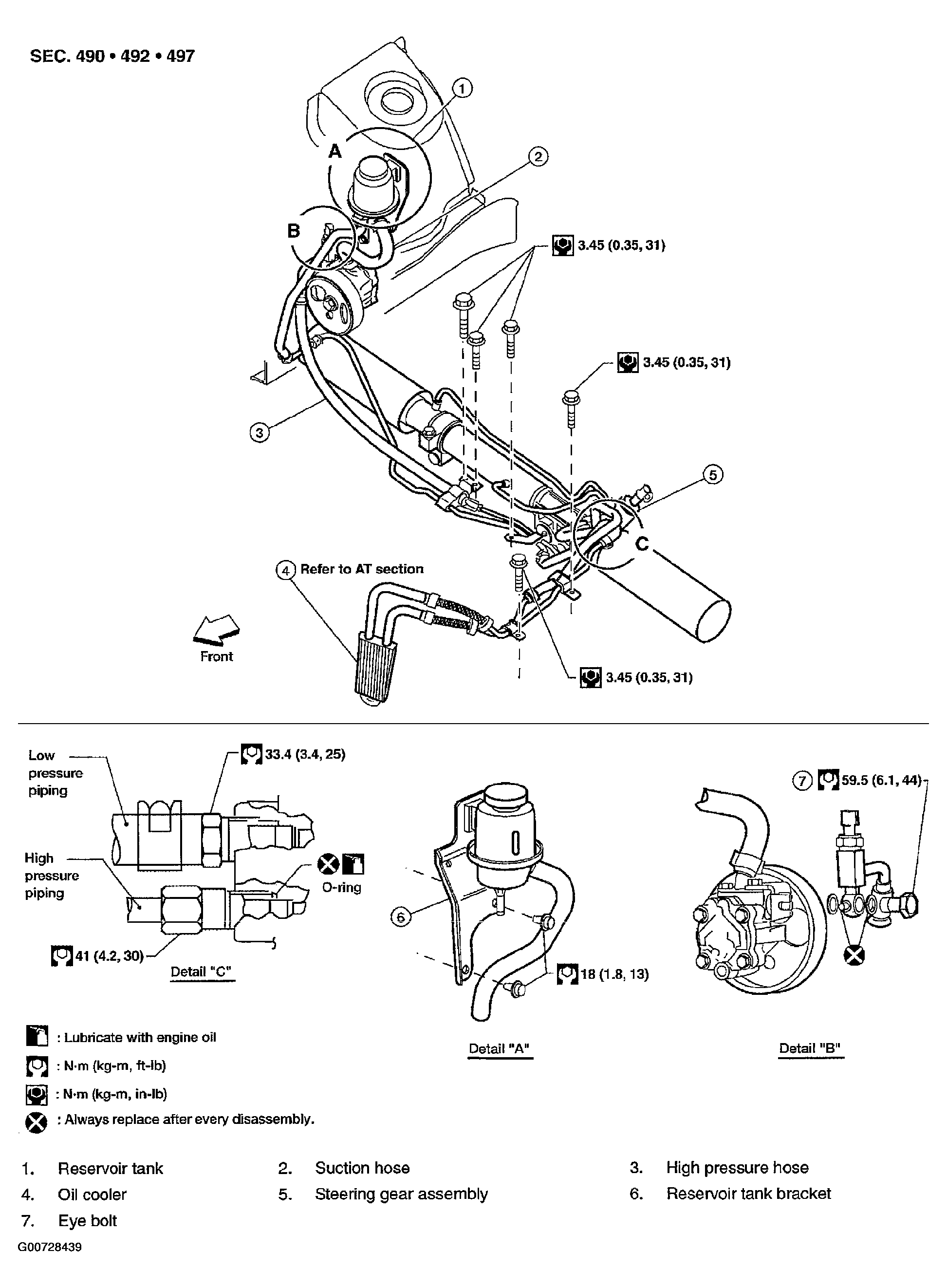

Fig 1: Removing And Installing Hydraulic Lines With Torque Specifications
G00728439Courtesy of NISSAN MOTOR CO., U.S.A.
