Connecting Rod Side Clearance

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Using a suitable tool, measure side clearance between connecting rod and crankshaft arm.
1. Standard : 0.20 - 0.40 mm (0.0079 - 0.0157 in)
2. Limit : 0.40 mm (0.0157 in)
If the measured value exceeds the repair limit, replace the connecting rod bearings, and measure again. If it still exceeds the repair limit, replace the crankshaft also.

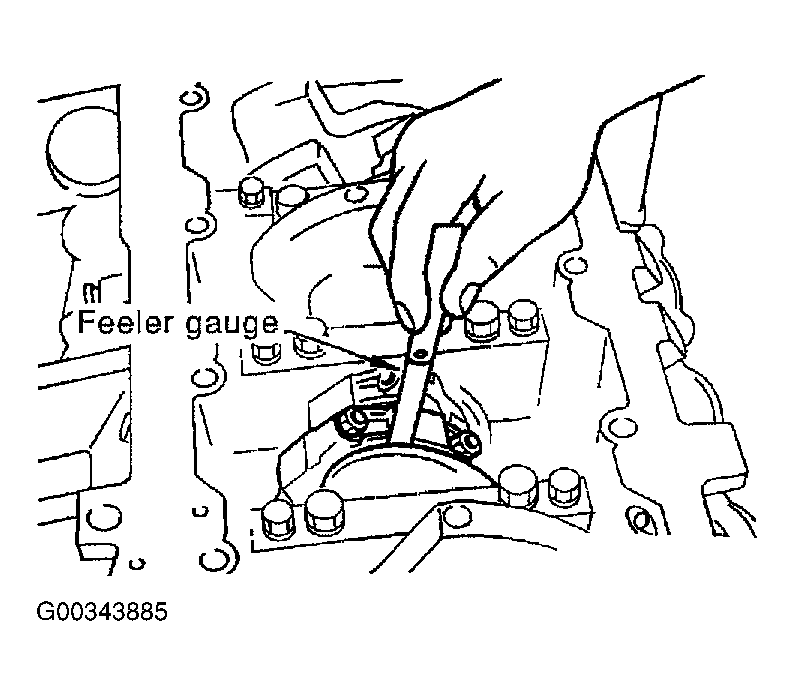

Fig 1: Measuring Connecting Rod Side Clearance
Courtesy of NISSAN MOTOR CO., U.S.A.
