Connecting Rod Bolt Diameter
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

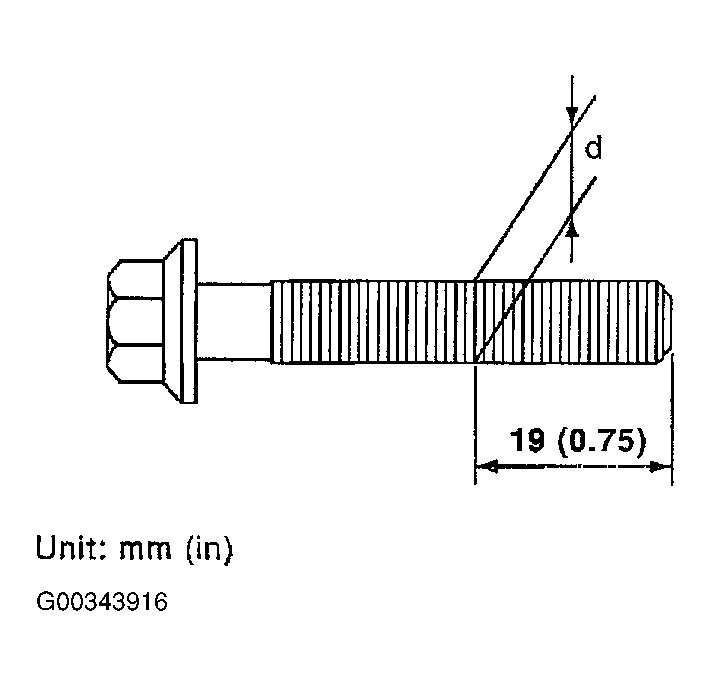

- Measure diameter (d) at position shown in the figure.
- When "d" exceeds the limit (when it becomes thinner), replace the bolt with a new one.
- Limit :7.75 mm (0.3051 in) or less.
Courtesy of NISSAN MOTOR CO., U.S.A.
