Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For removal without specified sequence, perform the removal same as right and left bank.
  1. Install valve lifters if removed.
    • Install removed parts in their original locations.
  2. Install camshafts. Refer to the table below for identification of right and left bank, and intake and exhaust.

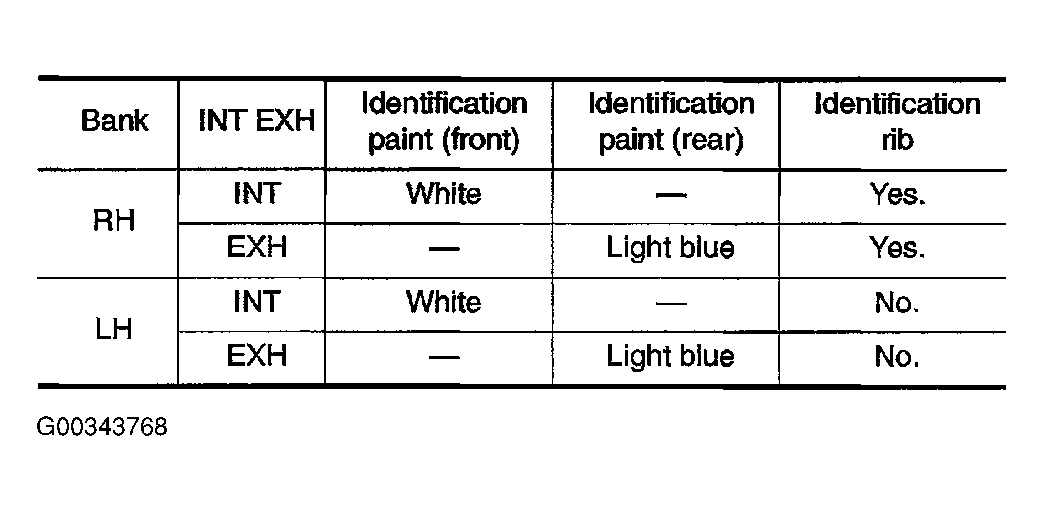

    Fig 1: Camshaft Identification Table
    G00343768Courtesy of NISSAN MOTOR CO., U.S.A.

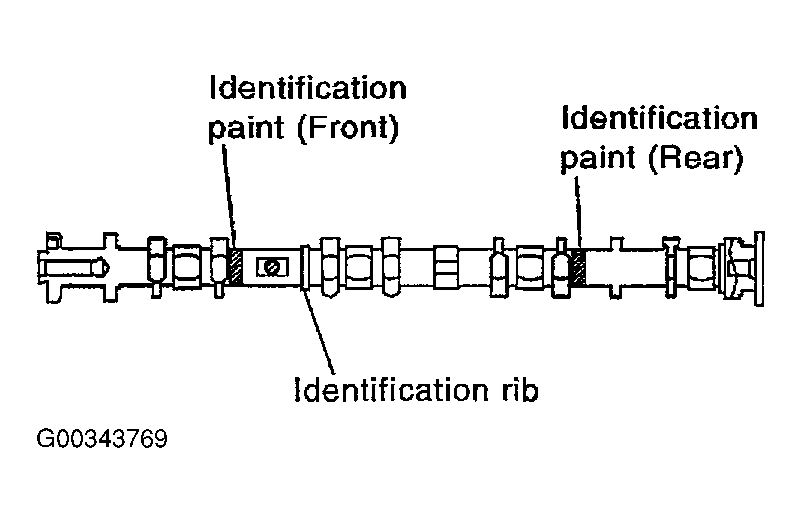

    Fig 2: Locating Camshaft Identification Marks
    G00343769Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install so that dowel pin at the front of camshaft face is in the direction shown.

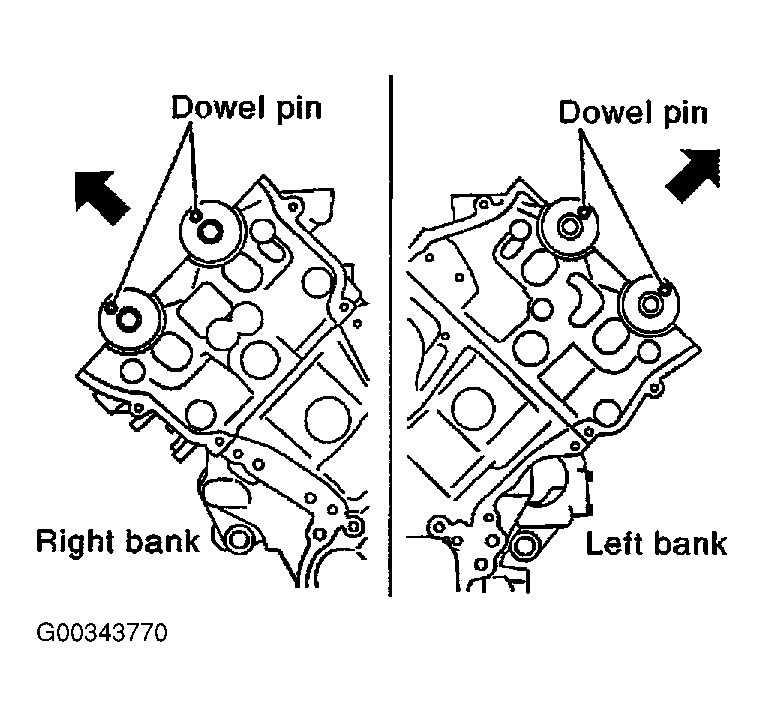

      Fig 3: Locating Camshafts
      G00343770Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install camshaft brackets.
    • Install by referring to installation location mark on upper surface.
    • Install so that installation location mark can be correctly read when viewed from the intake manifold side.

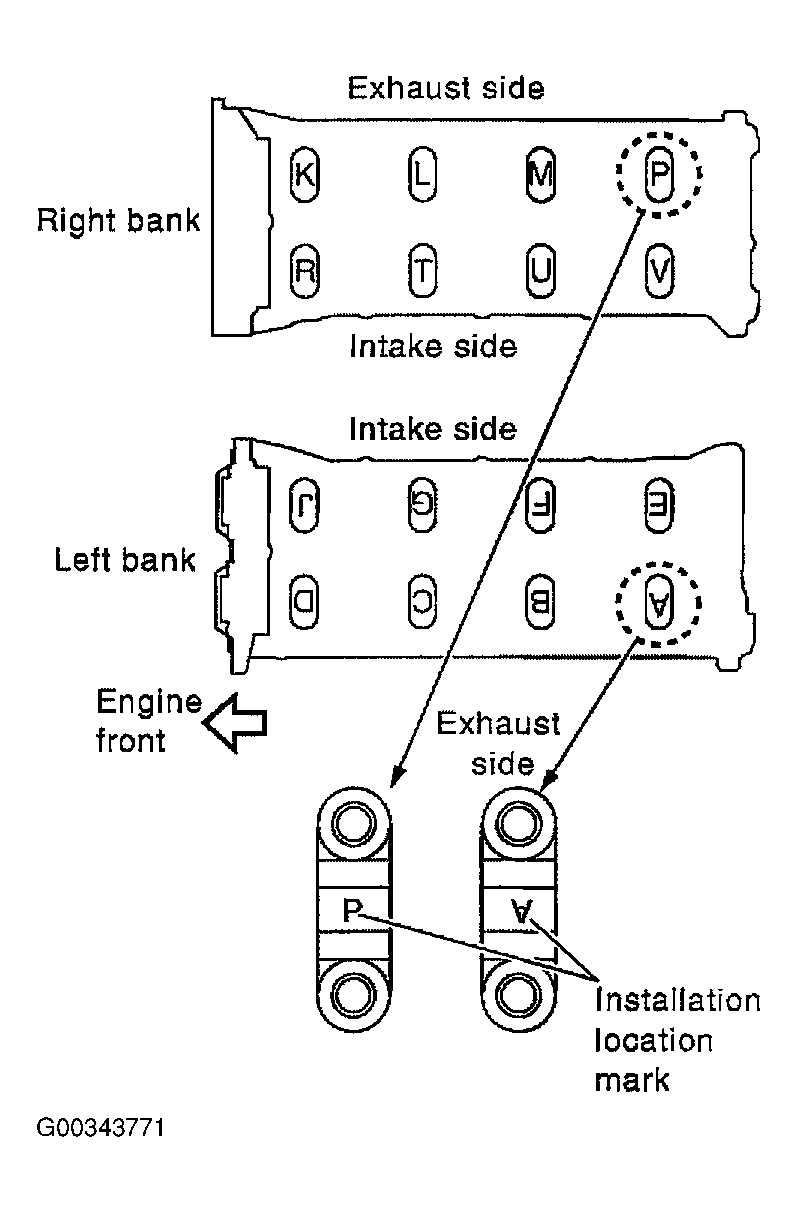

      Fig 4: Identifying Camshaft Bracket Location Marks
      G00343771Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install No. 1 camshaft bracket using the following procedure:
      • Apply liquid gasket to No. 1 camshaft bracket as in illustration. Use Genuine RTV Silicone Sealant or equivalent. See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION.
        CAUTION:
        • After installation, be sure to wipe off any excessive liquid gasket leaking from part "A" and "B" (both on right and left sides).
        • Remove completely any excess of liquid gasket inside bracket.

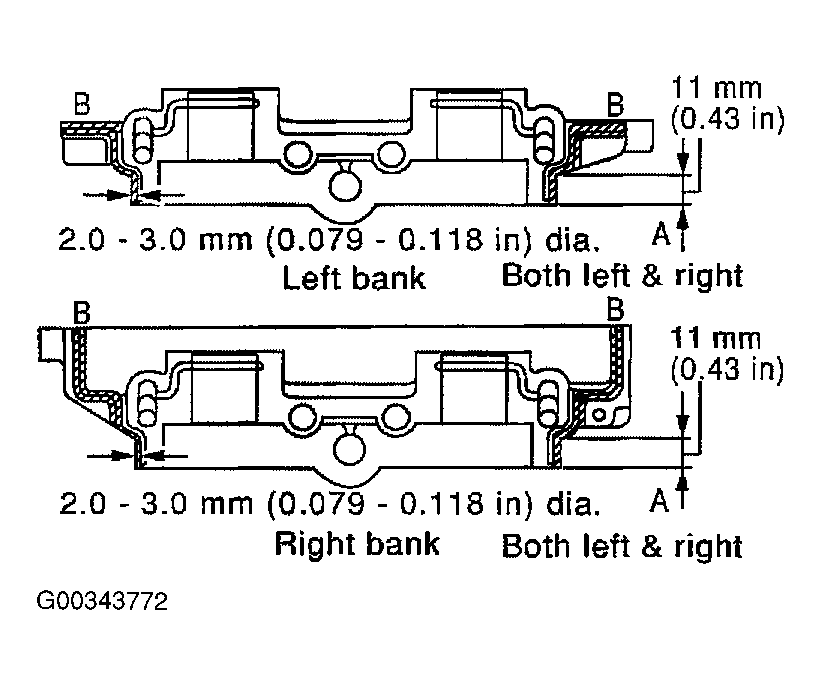

        Fig 5: Applying Liquid Gasket
        G00343772Courtesy of NISSAN MOTOR CO., U.S.A.
      • Apply liquid gasket to the back side of front cover as shown. Use Genuine RTV Silicone Sealant or equivalent. See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION.

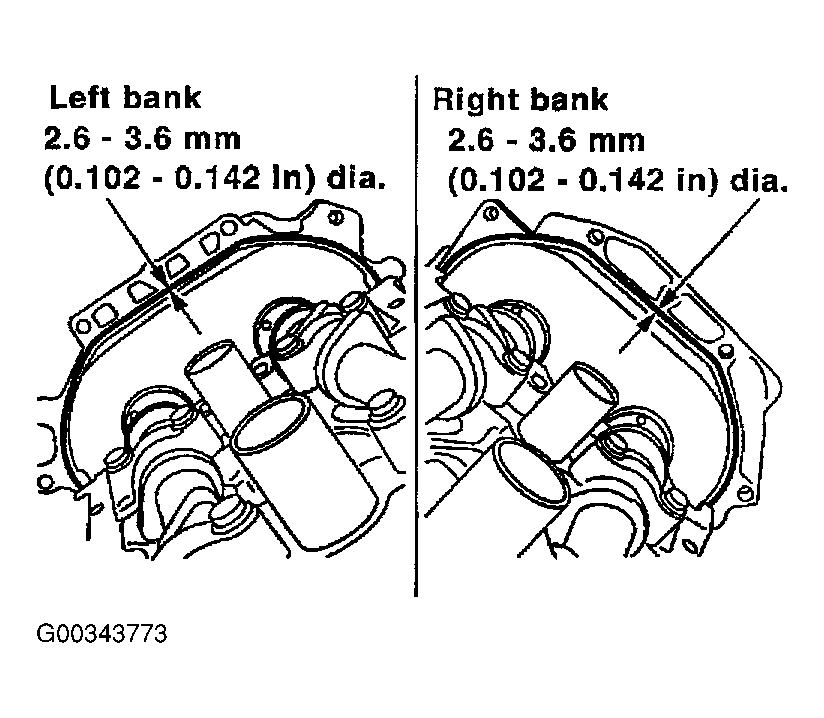

        Fig 6: Applying Liquid Gasket
        G00343773Courtesy of NISSAN MOTOR CO., U.S.A.
      • Position No. 1 camshaft bracket close to mounting position, and then install it to prevent from touching liquid gasket applied to each surface.

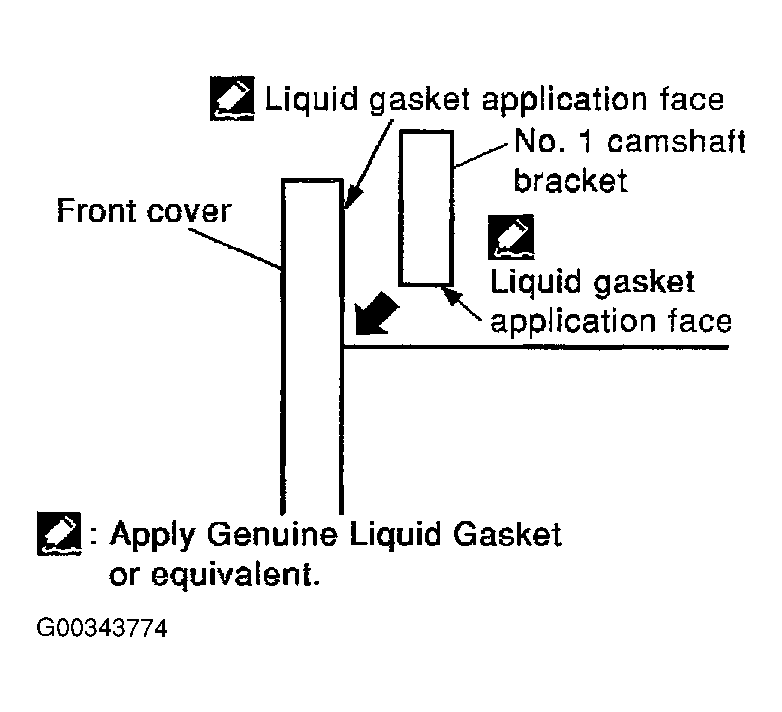

        Fig 7: Positioning No. 1 Camshaft Bracket
        G00343774Courtesy of NISSAN MOTOR CO., U.S.A.
      • Temporarily tighten front cover bolts (4 for each bank) as shown.

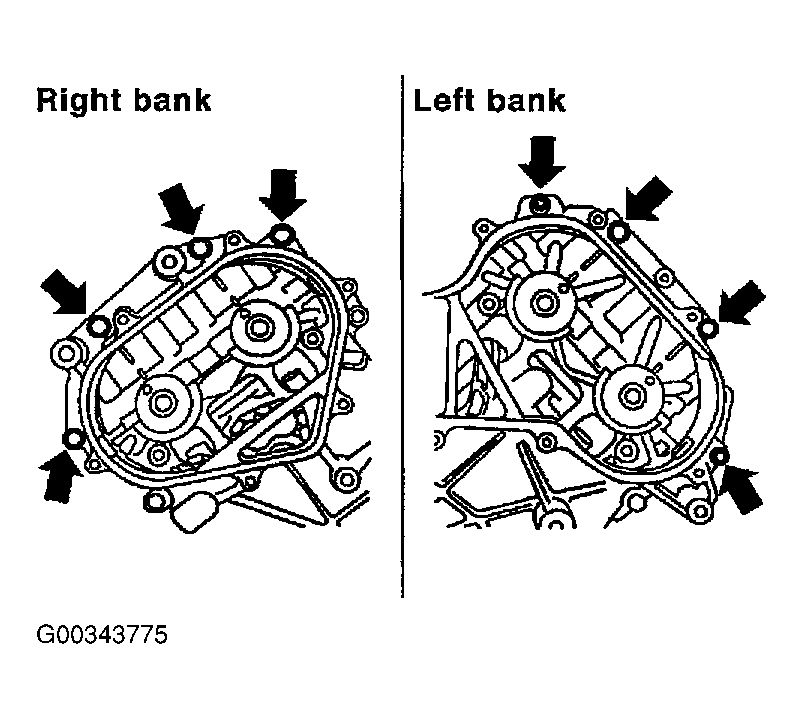

        Fig 8: Temporarily Tightening Front Cover Bolts (4 For Each Bank)
        G00343775Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Tighten fixing bolts of camshaft brackets as follows:

    Camshaft bracket bolts

    1. Step 1 (bolts 9 - 12) : 1.96 N.m (0.2 kg-m, 17 in-lb)
    2. Step 2 (bolts 1 - 8) : 1.96 N.m (0.2 kg-m, 17 in-lb)
    3. Step 3 (all bolts) : 5.88 N.m (0.6 kg-m, 52 in-lb)
    4. Step 4 (all bolts) : 10.4 N.m (1.1 kg-m, 92 in-lb)
    CAUTION: After tightening bolts of the camshaft brackets, be sure to wipe off excessive liquid gasket from the parts listed below.
    • Mating surface of rocker cover
    • Mating surface of front cover

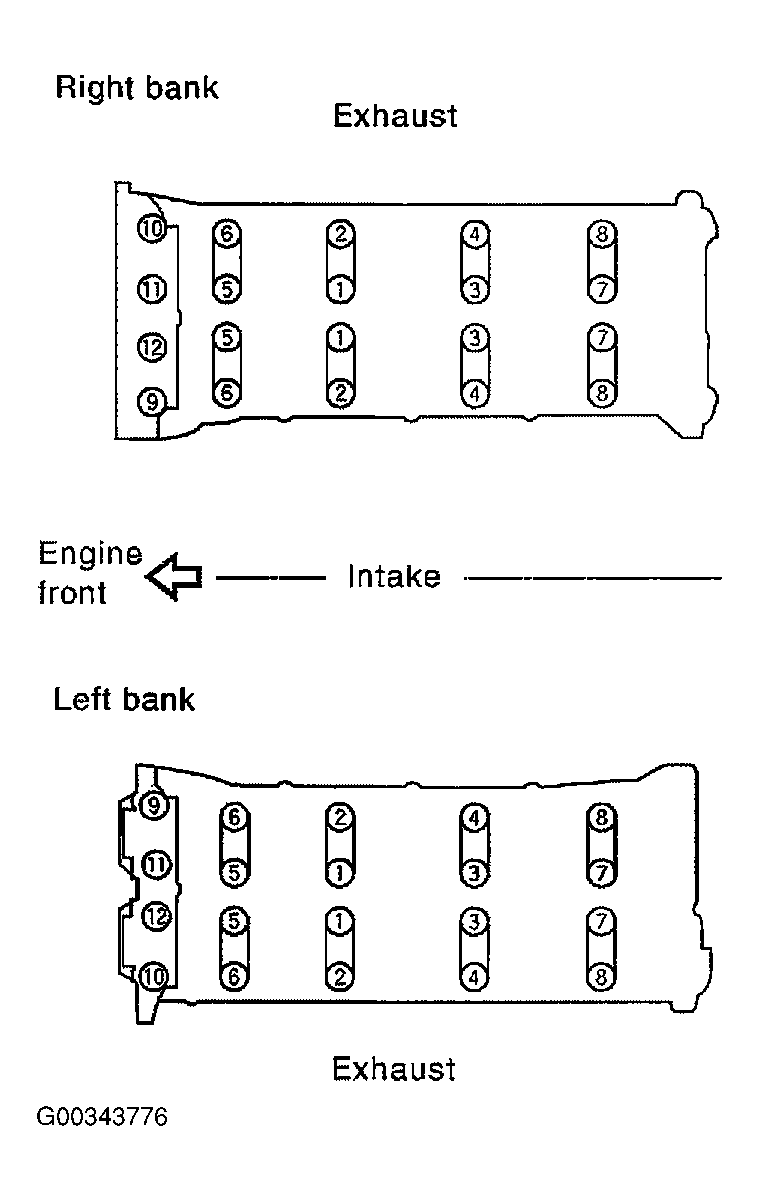

    Fig 9: Camshaft Brackets Tightening Sequence
    G00343776Courtesy of NISSAN MOTOR CO., U.S.A.
    • Tighten front cover bolts (4 for each bank) as shown in the figure to the specified torque.
      1. Front cover bolts :11.0 N.m (1.1 kg-m, 8 ft-lb)

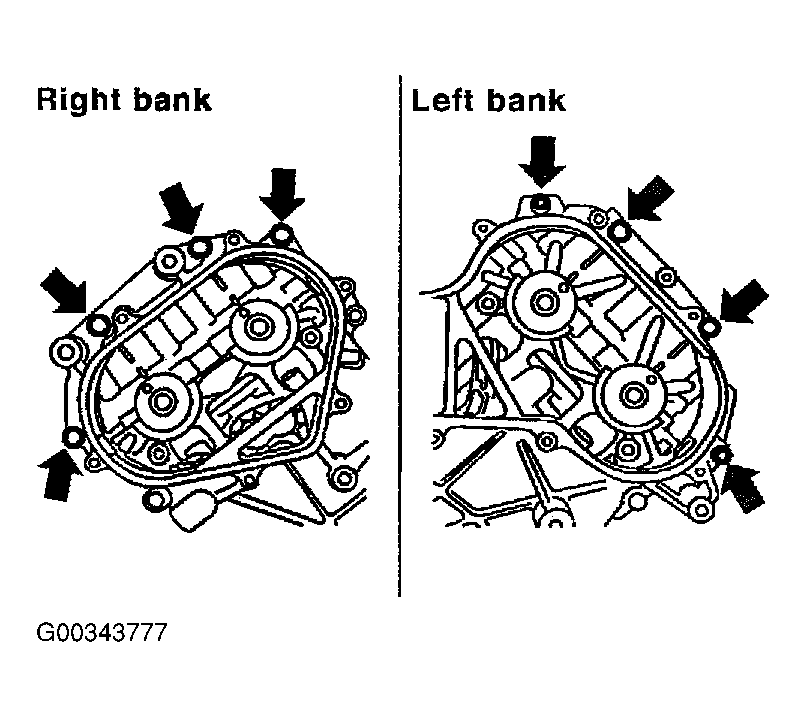

    Fig 10: Tightening Front Cover Bolts
    G00343777Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install camshaft sprocket with the following procedure:
    • Install camshaft sprocket aligning with matching marks painted on timing chain when removed. Align camshaft sprocket key groove with dowel pin on camshaft front edge at the same time, and then temporarily tighten bolts.

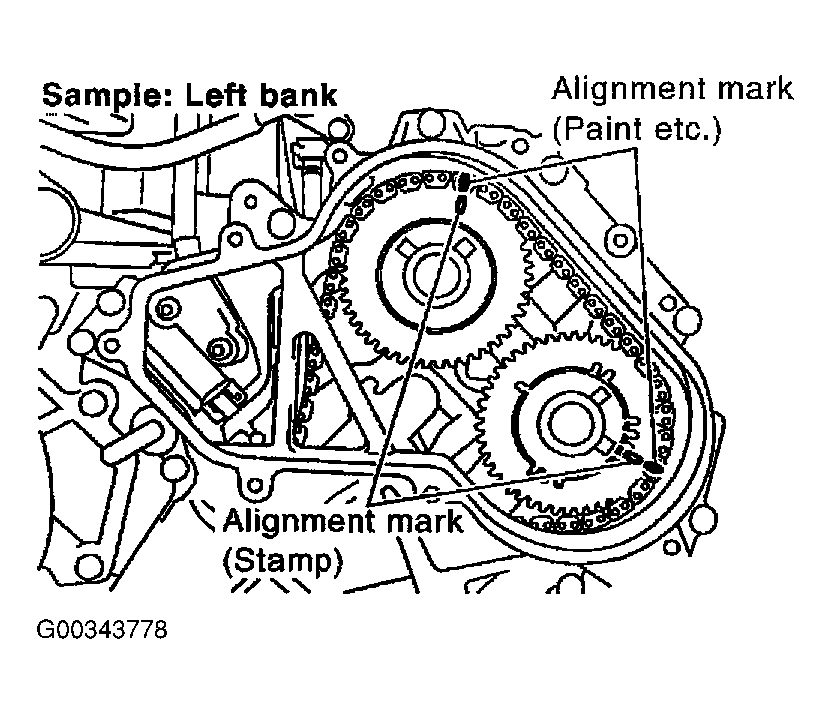

      Fig 11: Aligning Camshaft Sprockets
      G00343778Courtesy of NISSAN MOTOR CO., U.S.A.
      • Install intake and exhaust side camshaft sprocket by selectively using the groove of dowel pin according to the bank. (Common part used for both banks.)
    • Lock the hexagonal part of camshaft in the same way as for removal, and tighten bolts.
    • Check again that the timing mating mark on timing chain and on each sprocket are aligned.

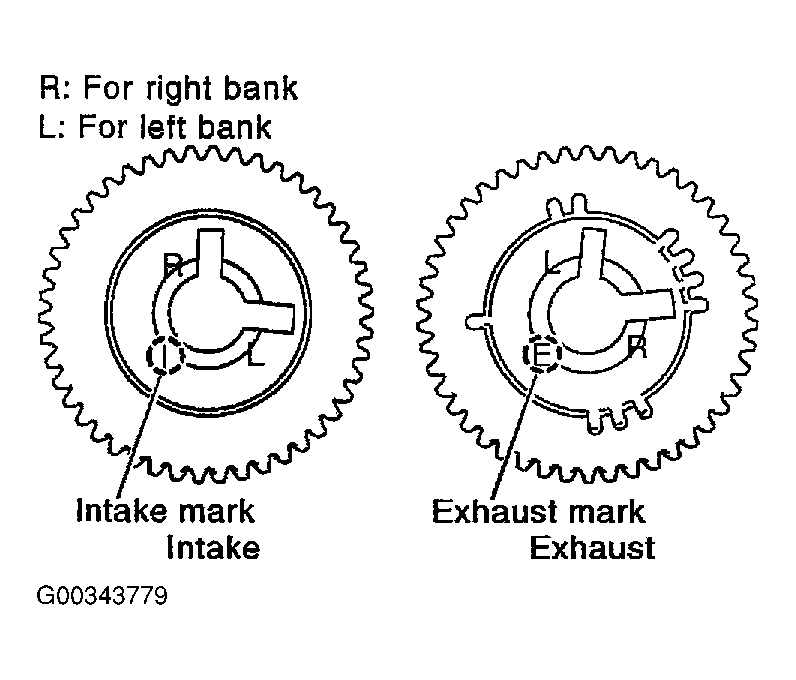

      Fig 12: Identifying Camshaft Sprockets
      G00343779Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install chain tensioner with the following procedure:
    NOTE: Left bank is shown.
    • Install chain tensioner.
      • Compress plunger and hold it with a stopper pin when installing.
      • Loosen the slack guide side timing chain by rotating camshaft hexagonal part using the wrench if mounting space is small.
        1. Chain tensioner bolts : 6.9 N.m (0.70 kg-m, 61 in-lb)

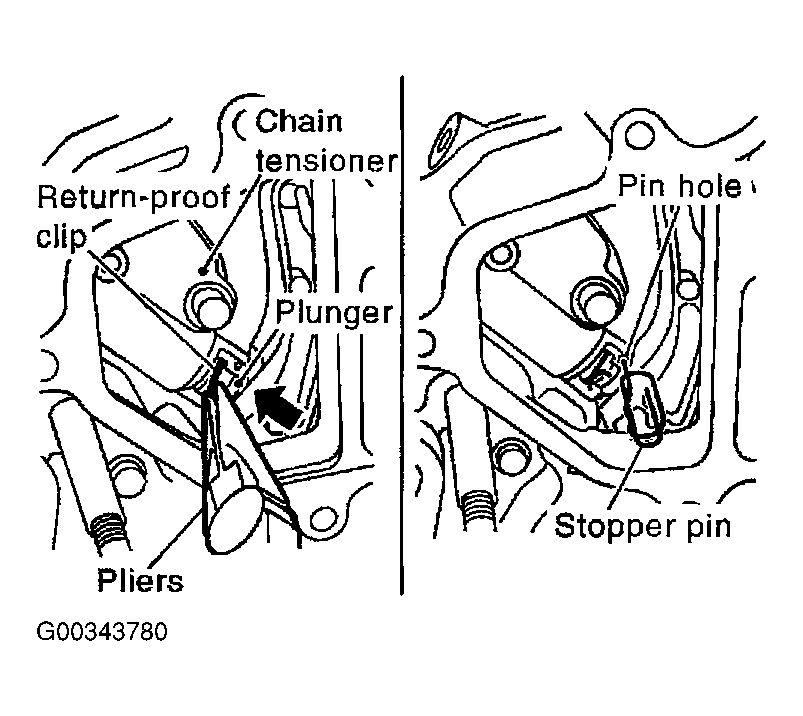

        Fig 13: Installing Chain Tensioner
        G00343780Courtesy of NISSAN MOTOR CO., U.S.A.
    • Remove stopper pin and release plunger, and then apply tension to timing chain.
    • Install chain tensioner cover onto front cover. (RH bank)
      • Apply liquid gasket as shown in the figure. Use Genuine RTV Silicone Sealant or equivalent. See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION.
        1. Tensioner cover bolts : 9.0 N.m (0.92 kg-m, 80 in-lb)

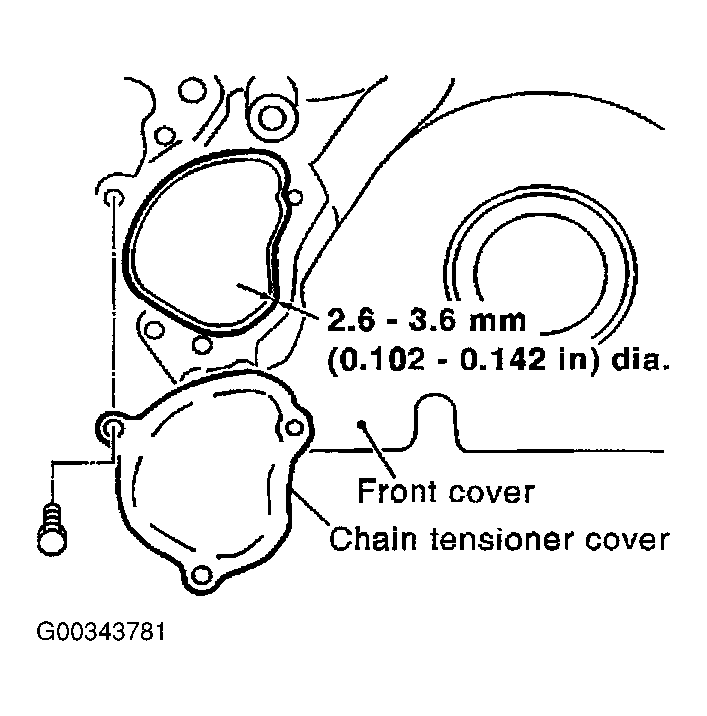

      Fig 14: Applying Liquid Gasket
      G00343781Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Check and adjust valve clearances. Refer to VALVE CLEARANCE .
  8. Installation of the remaining components is in the reverse order of removal.
