Control Cable

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

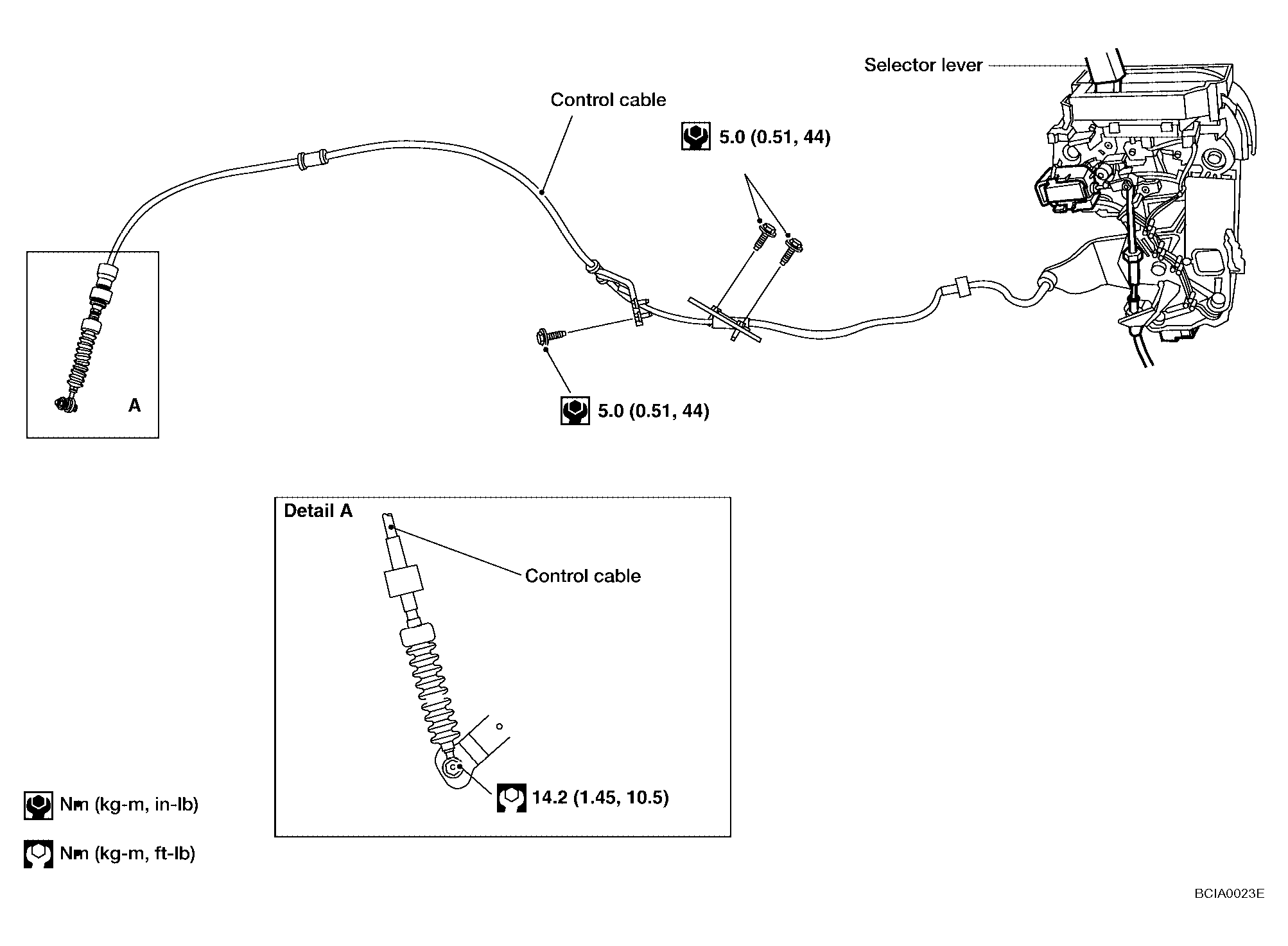

Fig 1: Control Cable Bolts Tightening Torque With Torque Specifications
G04198375Courtesy of NISSAN MOTOR CO., U.S.A.
