Revolution Sensor Replacement

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove intake air duct.
  2. Disconnect electrical connector.
  3. Remove revolution sensor from A/T.
  4. Reinstall any part removed.
    • Do not reuse seal bolt.

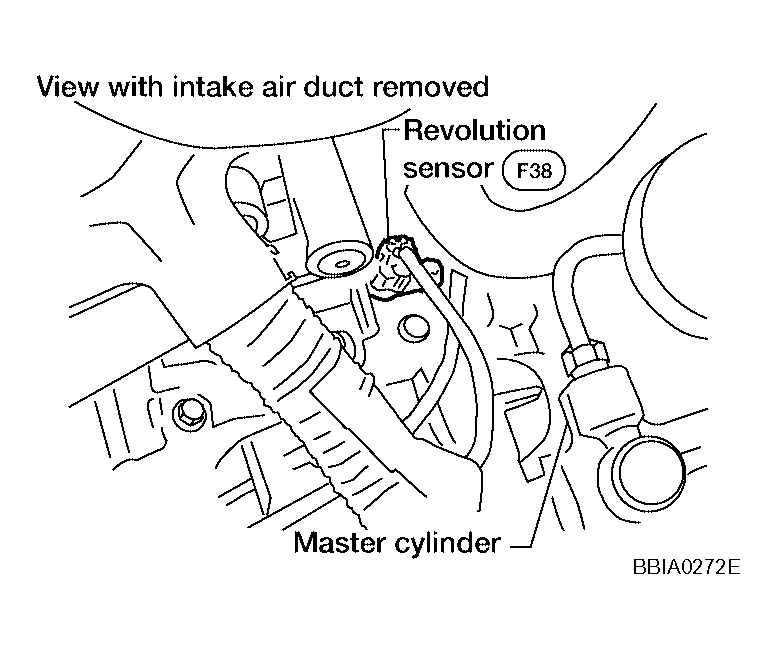

      Fig 1: Identifying Revolution Sensor
      G04198381Courtesy of NISSAN MOTOR CO., U.S.A.
