Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device and remove interlock rod from cable.

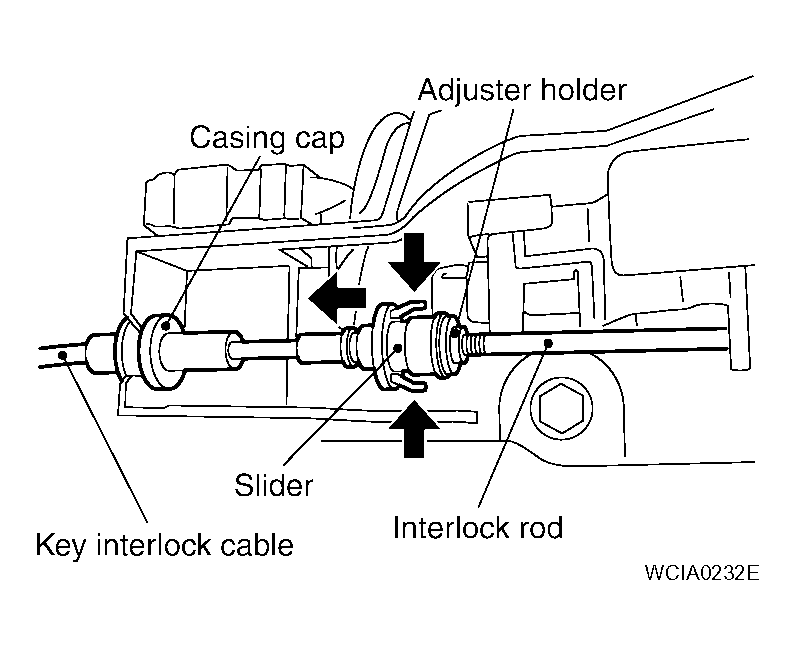

    Fig 1: Identifying Interlock Rod From Cable
    G04198377Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

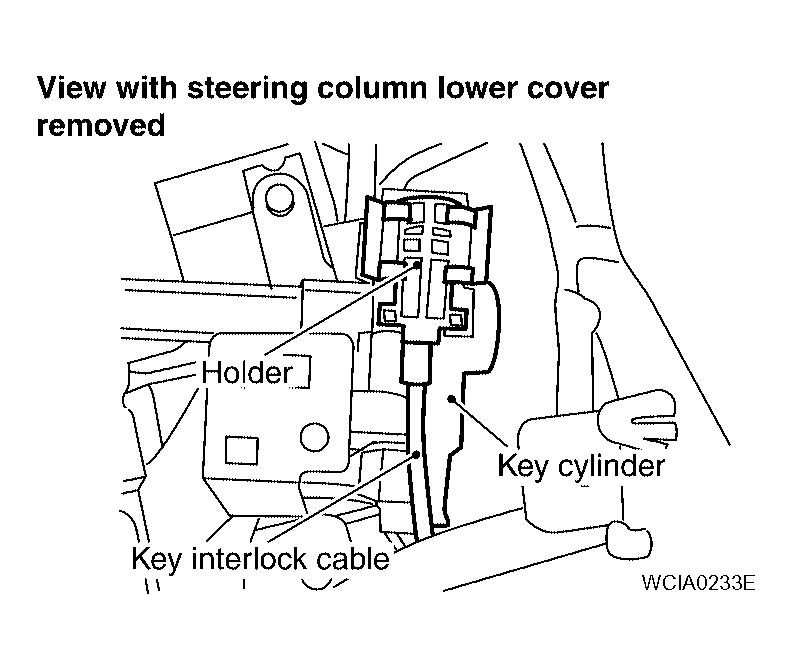

    Fig 2: Identifying Key Interlock Cable
    G04198378Courtesy of NISSAN MOTOR CO., U.S.A.
